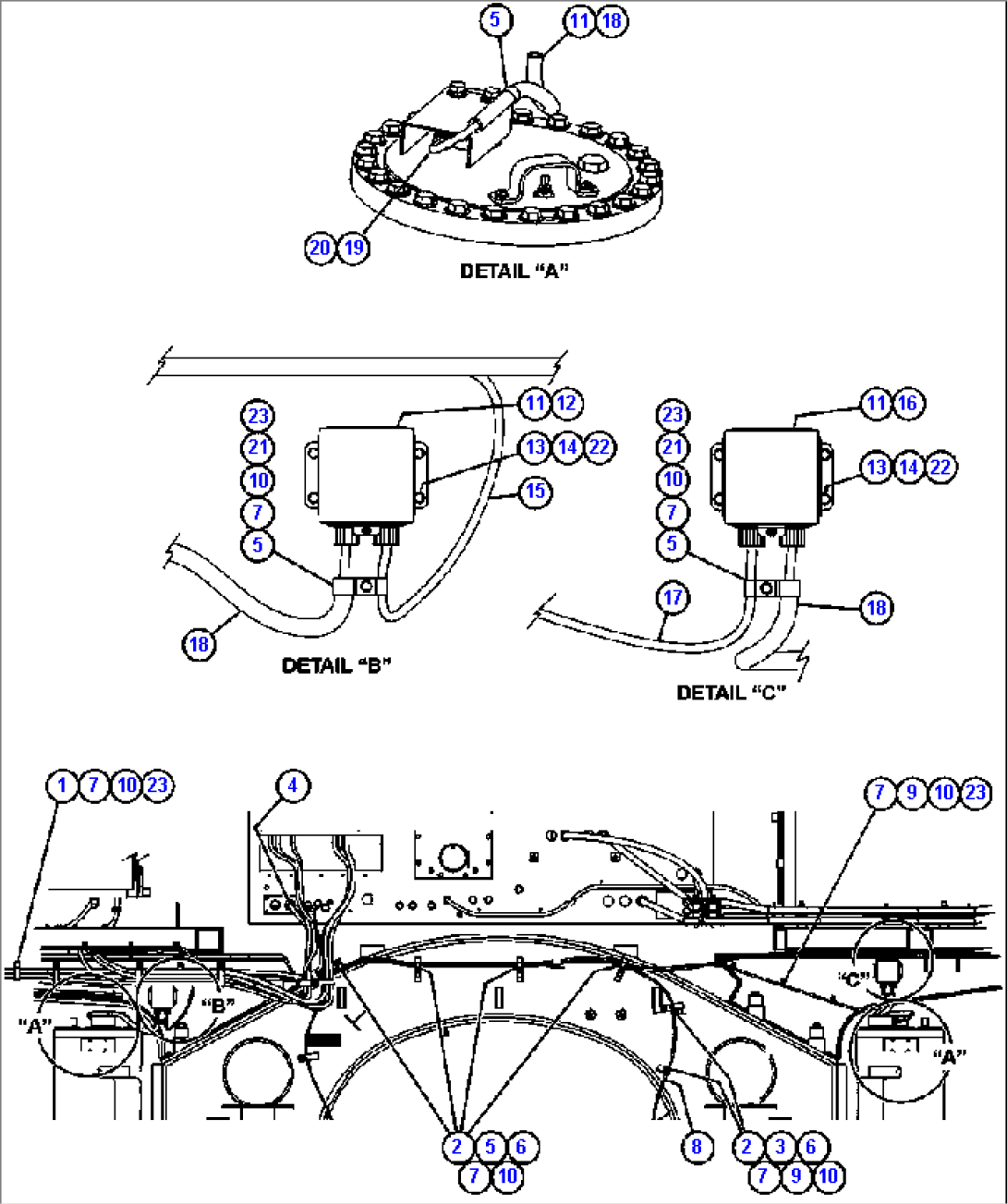

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TC6058 | CLAMP - 1 1/2" I.D. | ||
| 2 | MM0178 | NUT - M10 X 1.50 | ||
| 3 | TF6925 | CLAMP, VINYL - 3/4" | ||
| 4 | EJ9255 | HARNESS - PLM III JUNCTION BOX / TCI | ||
| 5 | TG2568 | CLAMP - 7/8" I.D. | ||
| 6 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 7 | MM0461 | FLAT WASHER - M10 | ||
| 8 | EJ9257 | CABLE, REAR JUNCTION BOX | ||
| 9 | 424243 | CLAMP - 3/8" ID | ||
| 10 | MM0471 | LOCKWASHER - M10 | ||
| 11 | PB2125 | TERMINAL, RING (1) | ||
| 12 | EK7632 | JUNCTION BOX ASSEMBLY - L.H. (SEE INDEX) | ||
| 13 | SP8417 | FLAT WASHER - 1/4" | ||
| 14 | C3145 | CAPSCREW - 1/4" - 20NC X 5/8" | ||
| 15 | EH2342 | CABLE | ||
| 16 | EK7633 | JUNCTION BOX ASSEMBLY - R.H. (SEE INDEX) | ||
| 17 | EJ9258 | CABLE | ||
| 18 | EJ9638 | SLEEVING, HOSE | ||
| 19 | EH1251 | LOAD WEIGH VALVE ASSEMBLY | ||
| 19 | TZ8627 | BODY, VALVE | ||
| 19 | TD7179 | CORE, VALVE | ||
| 19 | 07000-51009 | O-RING | ||
| 20 | PC1578 | SENSOR, PRESSURE (1)/(2) | ||
| 20 | 07000-51009 | O-RING | ||
| 21 | VY3109 | CLAMP - 3/16" I.D. (1) | ||
| 22 | DC3584 | LOCKWASHER - 1/4" | ||
| 23 | MM0179 | NUT - M10 X 1.50 | ||
| NS|28 | AK4998 | NOTE: (1) INCLUDED IN AK4998 SENSOR KIT. | ||
| NS|29 | (2) NOT SERVICED SEPARATELY. ORDER AK4998 KIT. |
