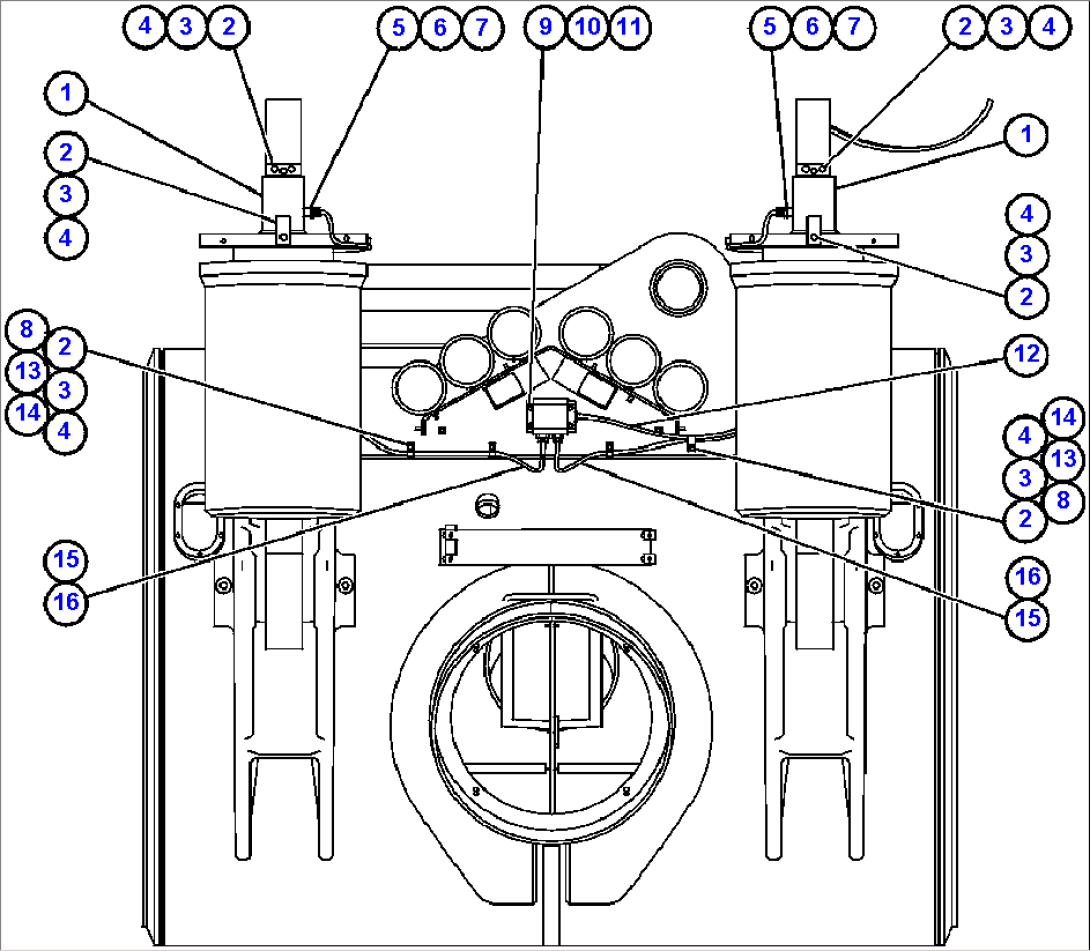

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EJ8410 | COVER | ||
| 2 | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 3 | TC1231 | LOCKWASHER - 3/8" | ||
| 4 | TR4436 | FLAT WASHER - 3/8" | ||
| 5 | VM5737 | GRIP, CORD | ||
| 6 | WB1067 | NIPPLE, CHASE | ||
| 7 | EH1251 | LOAD WEIGH VALVE ASSEMBLY | ||
| 7 | TZ8627 | BODY, VALVE | ||
| 7 | TD7179 | CORE, VALVE | ||
| 7 | 07000-51009 | O-RING | ||
| 8 | 424243 | CLAMP - 3/8" I.D. | ||
| 9 | EK1719 | JUNCTION BOX ASSEMBLY (SEE INDEX) | ||
| 10 | MM0582 | CAPSCREW - M6 X 1.00 X 20 | ||
| 11 | MM0459 | FLAT WASHER - M6 | ||
| 12 | EJ9265 | CABLE | ||
| 13 | TF6925 | CLAMP - 3/4" I.D. | ||
| 14 | VN9907 | CLAMP - 5/8" I.D. | ||
| 15 | VH2584 | RING, TERMINAL | ||
| 16 | PC0328 | SENSOR, PRESSURE | ||
| NS|20 | NOTE: NS = NOT SHOWN | |||
| NS|21 | VN9908 | CLAMP - 1" I.D. | ||
| NS|22 | TG2568 | CLAMP - 7/8" I.D. |
