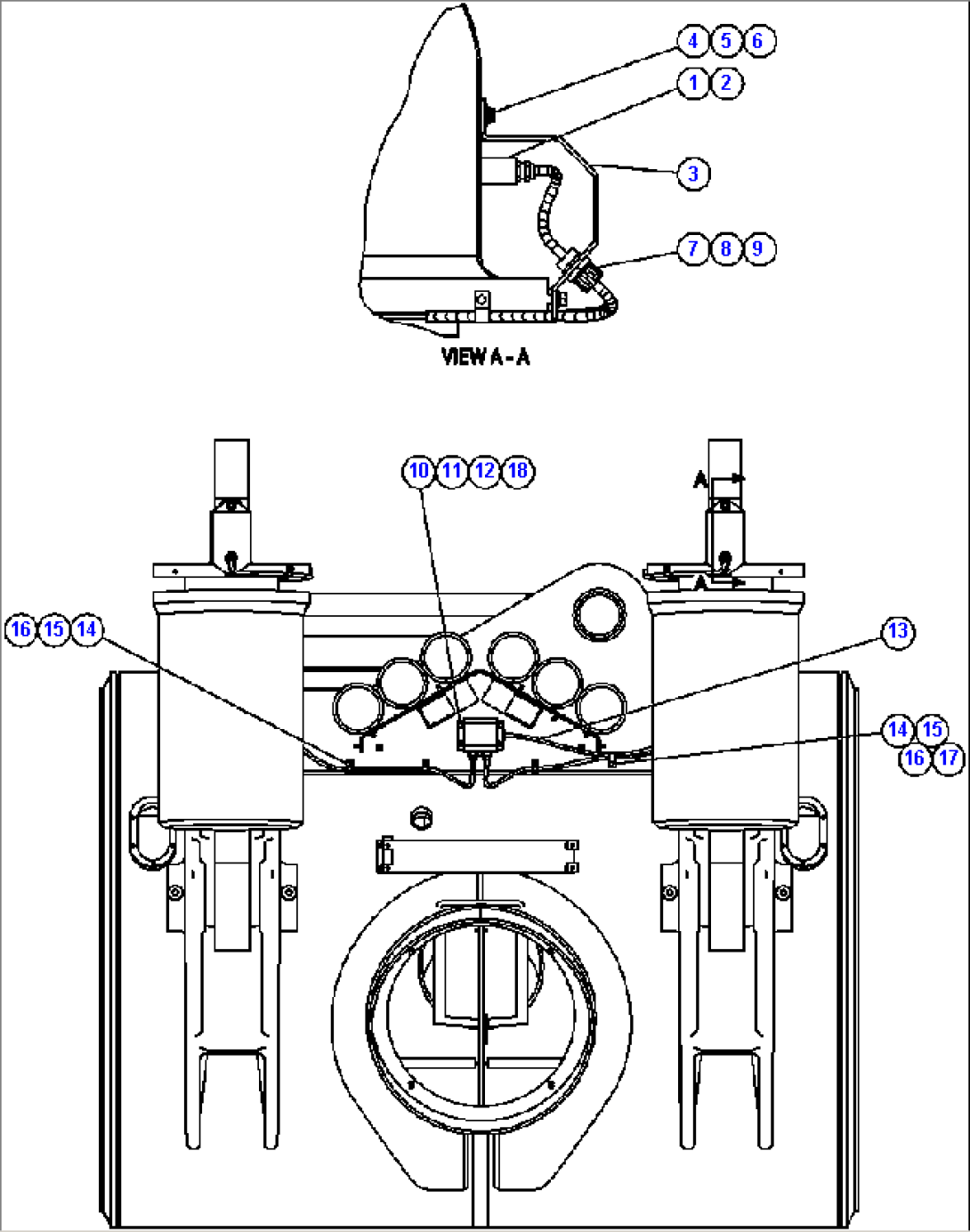

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH1251 | LOAD WEIGH VALVE ASSEMBLY | ||
| 1 | TZ8627 | BODY, VALVE | ||
| 1 | TD7179 | CORE, VALVE | ||
| 1 | 07000-51009 | O-RING | ||
| 2 | PC1578 | SENSOR, PRESSURE | ||
| 3 | EK5041 | COVER, REAR SUSPENSION | ||
| 4 | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 5 | TR4436 | FLAT WASHER - 3/8" | ||
| 6 | TC1231 | LOCKWASHER - 3/8" | ||
| 7 | VZ3046 | CORD GRIP | ||
| 8 | VM5587 | LOCKNUT, CONDULET | ||
| 9 | VG4399 | BUSHING, CONDULET | ||
| 10 | EK7631 | JUNCTION BOX ASSEMBLY (SEE INDEX) | ||
| 11 | MM0582 | CAPSCREW - M6 X 1.00 X 20 | ||
| 12 | MM0459 | FLAT WASHER - M6 | ||
| 13 | EJ9270 | CABLE | ||
| 14 | 424243 | CLAMP, VINYL - 3/8" I.D | ||
| 15 | MM0471 | LOCKWASHER - M10 | ||
| 16 | MM0178 | NUT - M10 X 1.50 | ||
| 17 | TF6925 | CLAMP, VINYL - 3/4" I.D. | ||
| 18 | PB2125 | TERMINAL, RING |
