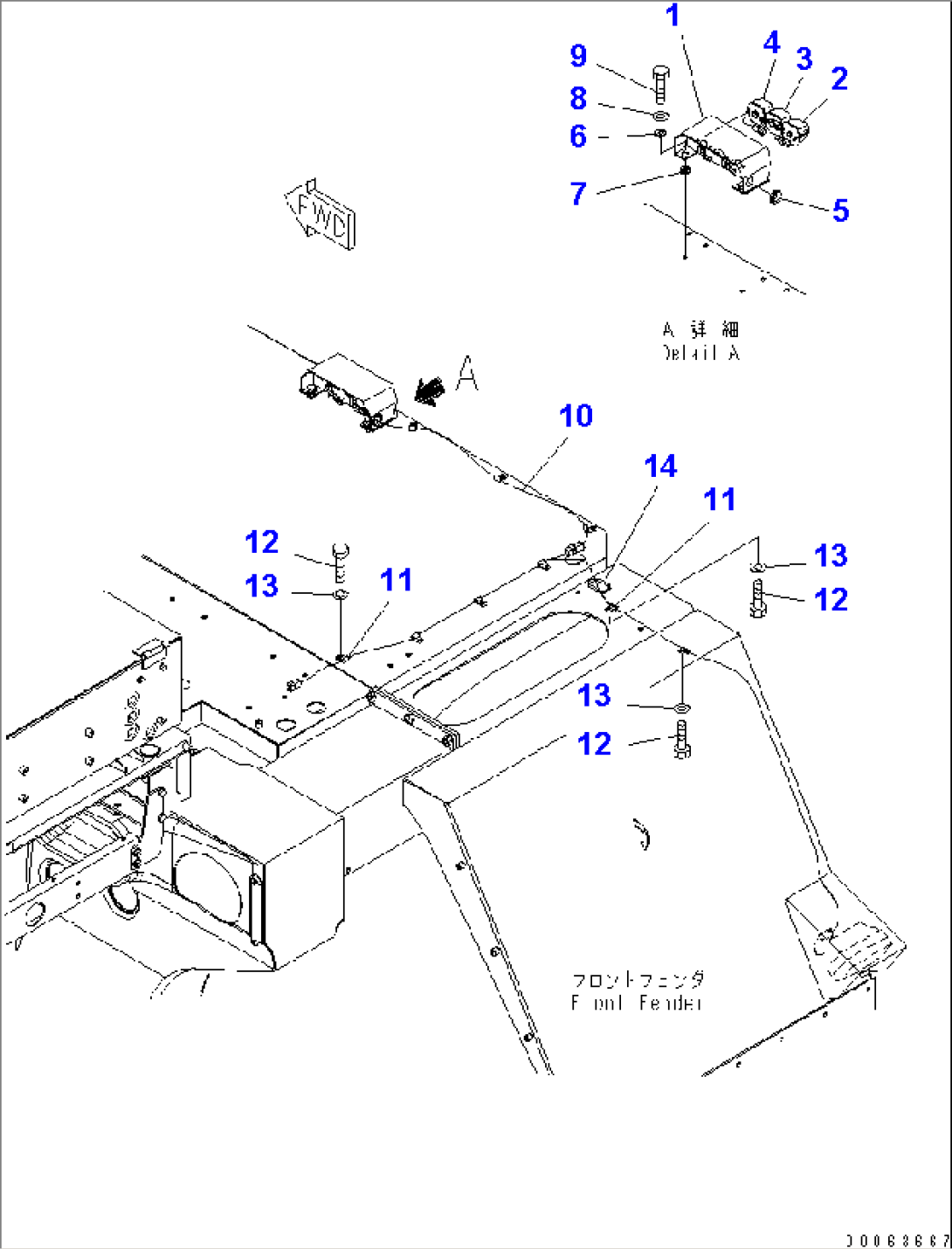

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-86-80201 | LAMP ASS'Y | A10001- | ||
| 1 | 561-86-87311 | BRACKET | A10001- | |
| 2 | 561-86-87410 | LAMP | A10001- | |
| 08110-12410 | BULB¤ 12W | A10001- | ||
| 3 | 561-86-87420 | LAMP | A10001- | |
| 08110-12410 | BULB¤ 12W | A10001- | ||
| 4 | 561-86-87430 | LAMP | A10001- | |
| 08110-12410 | BULB¤ 12W | A10001- | ||
| 5 | 08037-02512 | GROMMET | A10001- | |
| 6 | 421-62-18550 | CUSHION | A10001- | |
| 7 | 421-62-23710 | CUSHION | A10001- | |
| 8 | 175-54-34170 | WASHER | A10001- | |
| 9 | 01010-81235 | BOLT | A10001- | |
| 10 | 561-86-87531 | WIRING HARNESS | A10001- | |
| 11 | 04434-50810 | CLIP | A10001- | |
| 12 | 01010-81016 | BOLT | A10001- | |
| 13 | 01643-31032 | WASHER | A10001- | |
| 14 | 08034-20834 | BAND | A10001- |
