| Item | Part No. | Part Name | Qty | Serial No. |

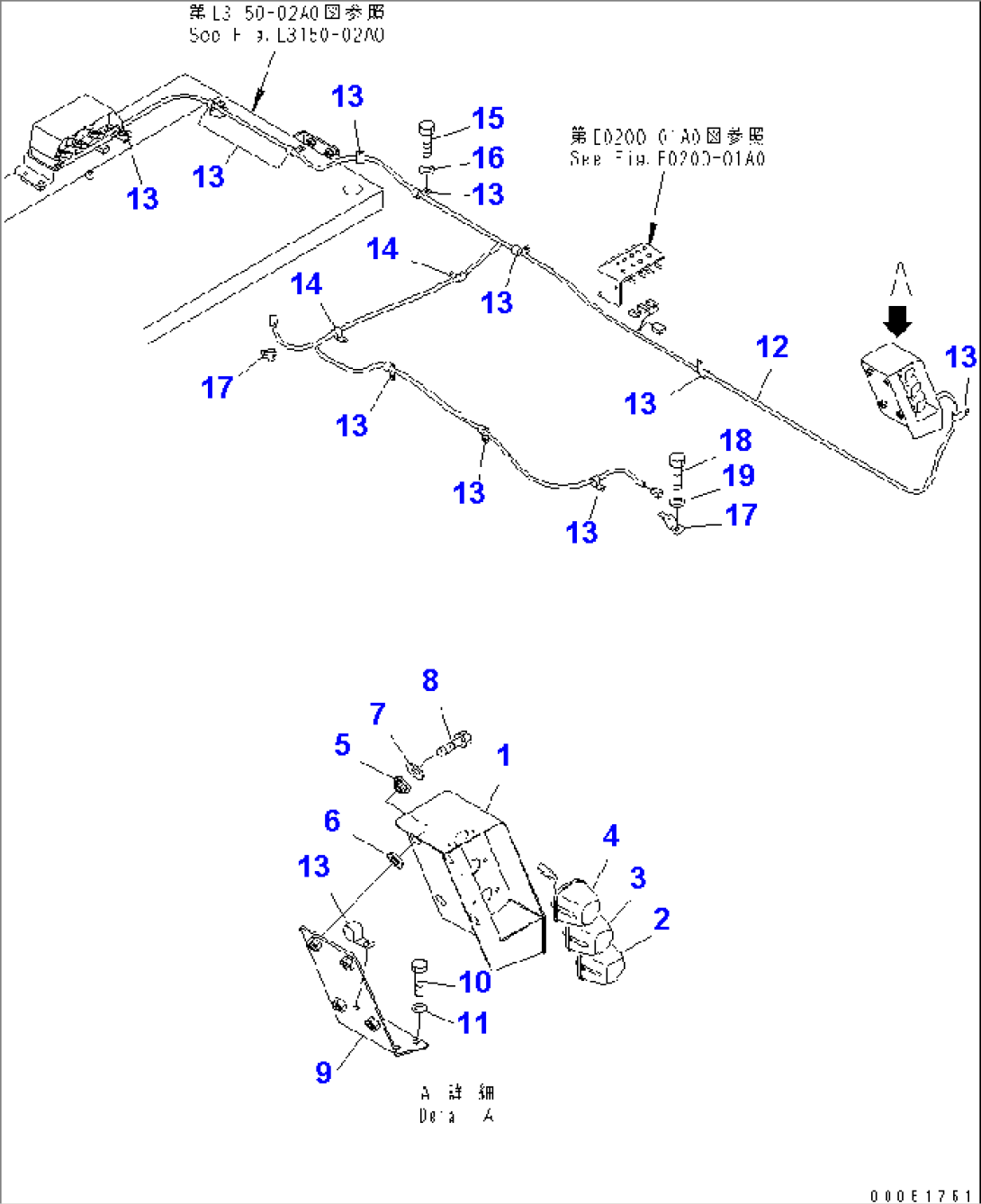

| 561-86-80100 | LAMP ASS'Y | 3001-@ | ||
| 1 | 561-86-87330 | BRACKET | 3001-@ | |
| 2 | 561-86-87410 | LAMP,GREEN | 3001-@ | |
| 2 | 08110-12410 | BULB, 12W | 3001-@ | |
| 3 | 561-86-87420 | LAMP,AMBER | 3001-@ | |
| 3 | 08110-12410 | BULB, 12W | 3001-@ | |
| 4 | 561-86-87430 | LAMP,RED | 3001-@ | |
| 4 | 08110-12410 | BULB, 12W | 3001-@ | |
| 5 | 421-62-18550 | CUSHION | 3001-@ | |
| 6 | 421-62-23710 | CUSHION | 3001-@ | |
| 7 | 175-54-34170 | WASHER | 3001-@ | |
| 8 | 01010-81235 | BOLT | 3001-@ | |
| 9 | 569-86-87321 | BRACKET | 3001-@ | |
| 10 | 01010-81020 | BOLT | 3001-@ | |
| 11 | 01643-31032 | WASHER | 3001-@ | |
| 12 | 566-86-81111 | WIRING HARNESS | 3001-@ | |
| 13 | 04434-51010 | CLIP | 3001-7250 | |
| 14 | 04434-51510 | CLIP | 3001-7250 | |
| 15 | 01010-81016 | BOLT | 3001-7250 | |
| 16 | 01643-31032 | WASHER | 3001-7250 | |
| 17 | 08193-21012 | CLIP | 3001-7250 | |
| 18 | 01010-81016 | BOLT | 3001-@ | |
| 19 | 01643-31032 | WASHER | 3001-@ |
