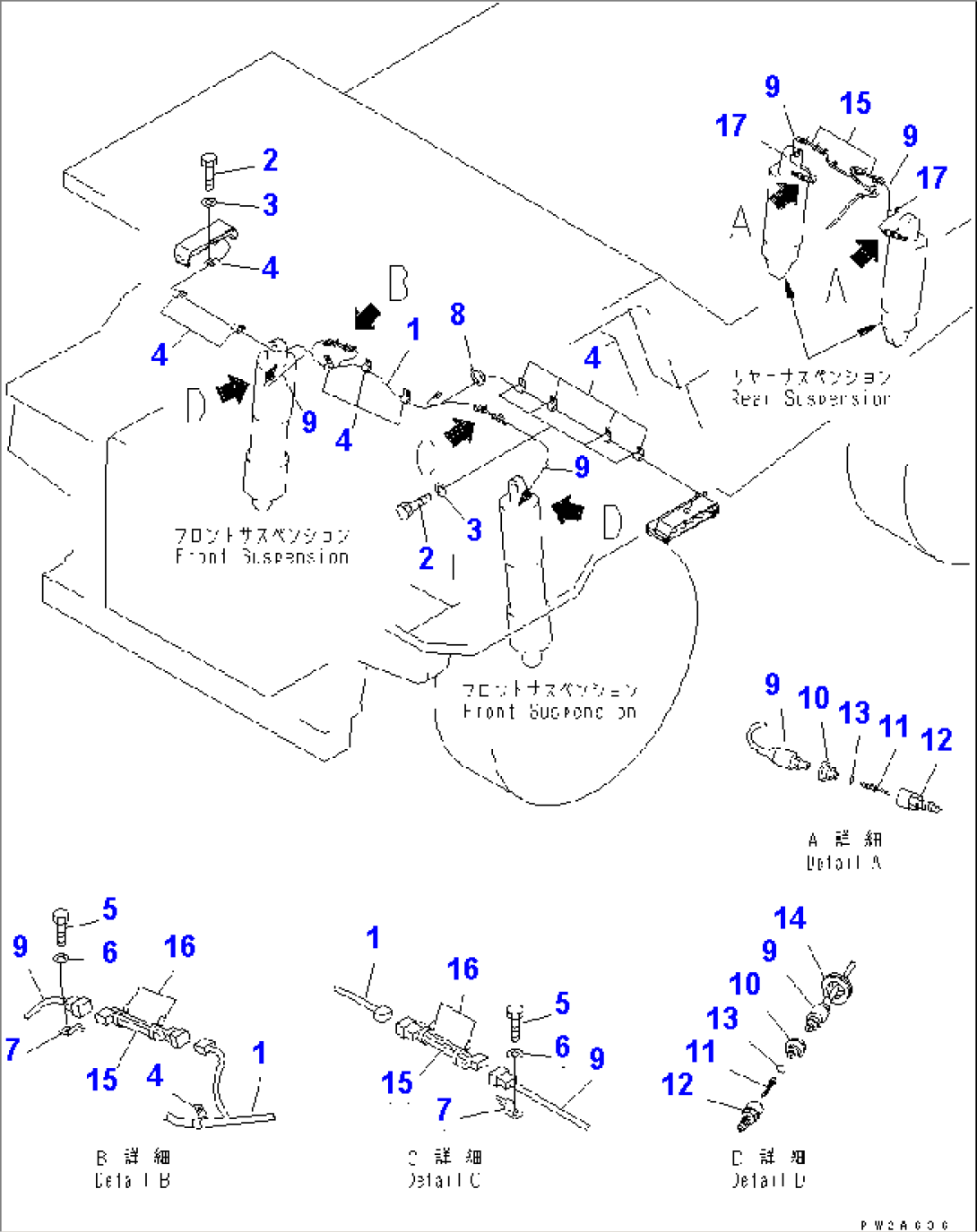

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-86-6B212 | WIRING HARNESS | 2001- | |
| 2 | 01010-81020 | BOLT | 2001- | |
| 3 | 01643-31032 | WASHER | 2001- | |
| 4 | 08036-01414 | CLIP | 2001- | |
| 5 | 01010-81016 | BOLT | 2001- | |
| 6 | 01643-31032 | WASHER | 2001- | |
| 7 | 08193-21012 | CLIP | 2001- | |
| 8 | 08034-00536 | BAND | 2001- | |
| 9 | 7861-93-1530 | SENSOR | 2001- | |
| 9 | 07002-51423 | O-RING | 2001- | |
| 561-86-67500 | VALVE ASS'Y | 2001- | ||
| 10 | 561-86-67520 | NIPPLE | 2001- | |
| 11 | 281-50-11721 | CORE | 2001- | |
| 12 | 561-86-67510 | VALVE | 2001- | |
| 13 | 07000-51009 | O-RING | 2001- | |
| 14 | 561-50-63191 | GROMMET | 2001- | |
| 15 | 561-06-64541 | WIRING HARNESS | 2001- | |
| 16 | 08034-00536 | BAND | 2001- | |
| 17 | 08036-01014 | CLIP | 2001- |
