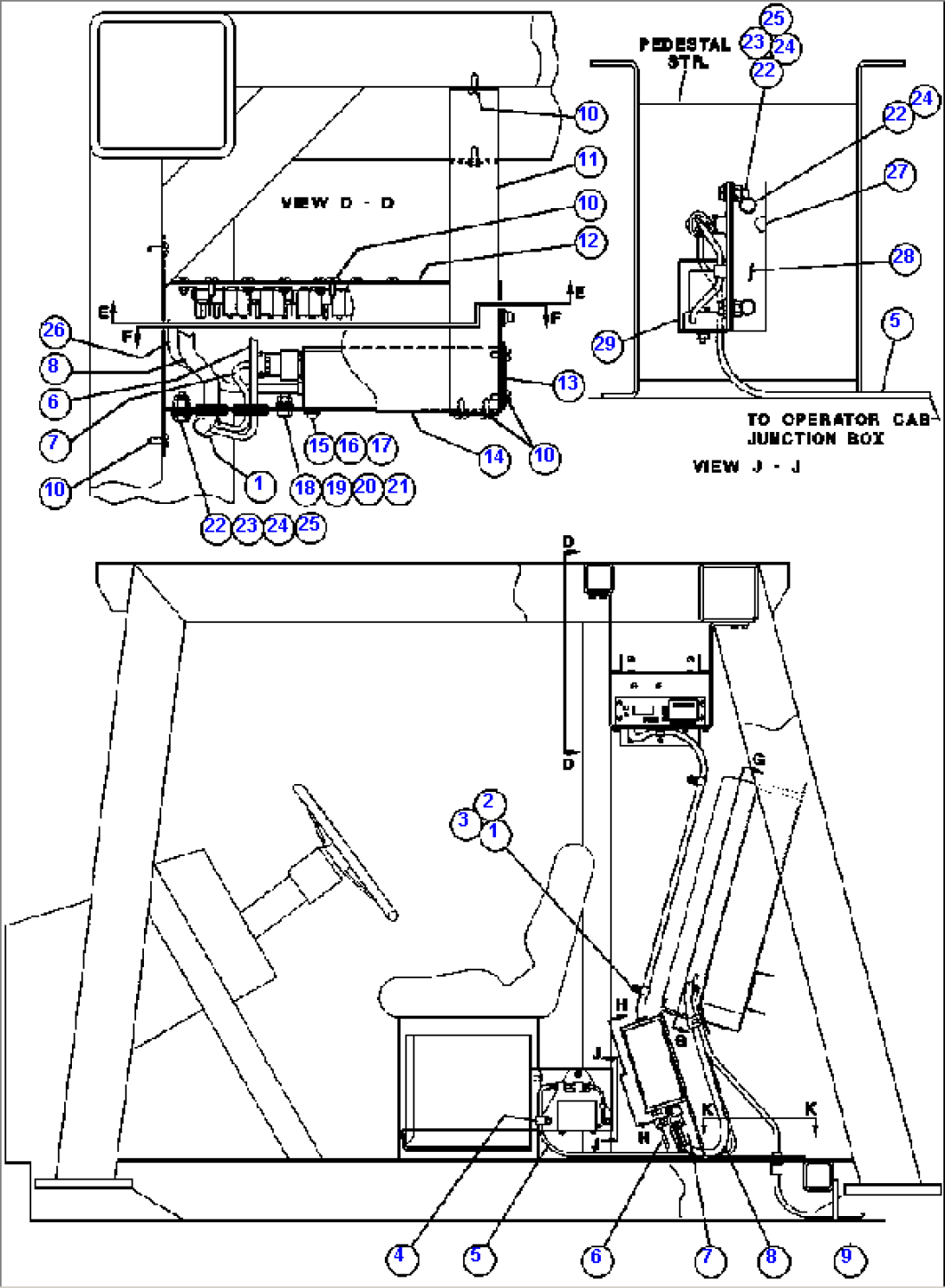

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TF6925 | CLAMP | | |
| 2 | DC5604 | SET SCREW - 1/4" - 20NC | | |
| 3 | SP8417 | FLAT WASHER - 1/4" | | |
| 4 | VY8331 | CLAMP | | |
| 5 | EB8241 | HARNESS, ANGLE SENSOR | | |
| 6 | EB9760 | HARNESS, INTERFACE | | |
| 7 | EC4352 | HARNESS, EMB POWER SUPPLY | | |
| 8 | EB8242 | HARNESS, PLM OPERATOR CAB | | |
| 9 | EB8240 | HARNESS, FRONT SUSPENSION | | |
| 10 | WA2853 | SET SCREW - #12 | | |
| 11 | EB3779 | SUPPORT | | |
| 12 | EB9775 | PLATE, COVER | | |
| 13 | EC0754 | PLM CONTROL BOX ASSM (SEE INDEX) | | |
| 14 | EB9773 | HOUSING, PLM | | |
| 15 | MM0357 | MACHINE SCREW - M6 X 1 | | |
| 16 | DC3584 | LOCKWASHER - 1/4" | | |
| 17 | SP8417 | FLAT WASHER - 1/4" | | |
| 18 | TD0794 | CAPSCREW - 5/16" - 18NC X 3/4" | | |
| 19 | TV0177 | FLAT WASHER - 5/16" | | |
| 20 | SC4174 | LOCKWASHER - 5/16" | | |
| 21 | TD1684 | NUT - 5/16" - 18NC | | |
| 22 | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | | |
| 23 | TR4436 | FLAT WASHER - 3/8" | | |
| 24 | TC1231 | LOCKWASHER - 3/8" | | |
| 25 | TC1233 | NUT - 3/8" - 16NC | | |
| 26 | EC2454 | HARNESS, PLM CONTROL BOX | | |
| 27 | EB0860 | MOUNTING PLATE, INCLINOMETER | | |
| 28 | EB0861 | MOUNTING BRACKET, INCLINOMETER | | |
| 29 | 7861925330 | SENSOR, ANGLE | | |
