| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-25822 | HOSE | 4001- | |
| 2 | 07088-01408 | HOSE | 4001- | |
| 07371-31465 | FLANGE,SPLIT | 4001- | ||
| 07000-23048 | O-RING | 4001- | ||
| 07372-21240 | BOLT | 4001- | ||
| 07372-21245 | BOLT | 4001- | ||
| 01643-51232 | WASHER | 4001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 5 s/n 4001 up
- Parts books
- Periodical replacement critical parts (hydraulic piping hose)
Поиск по каталогу

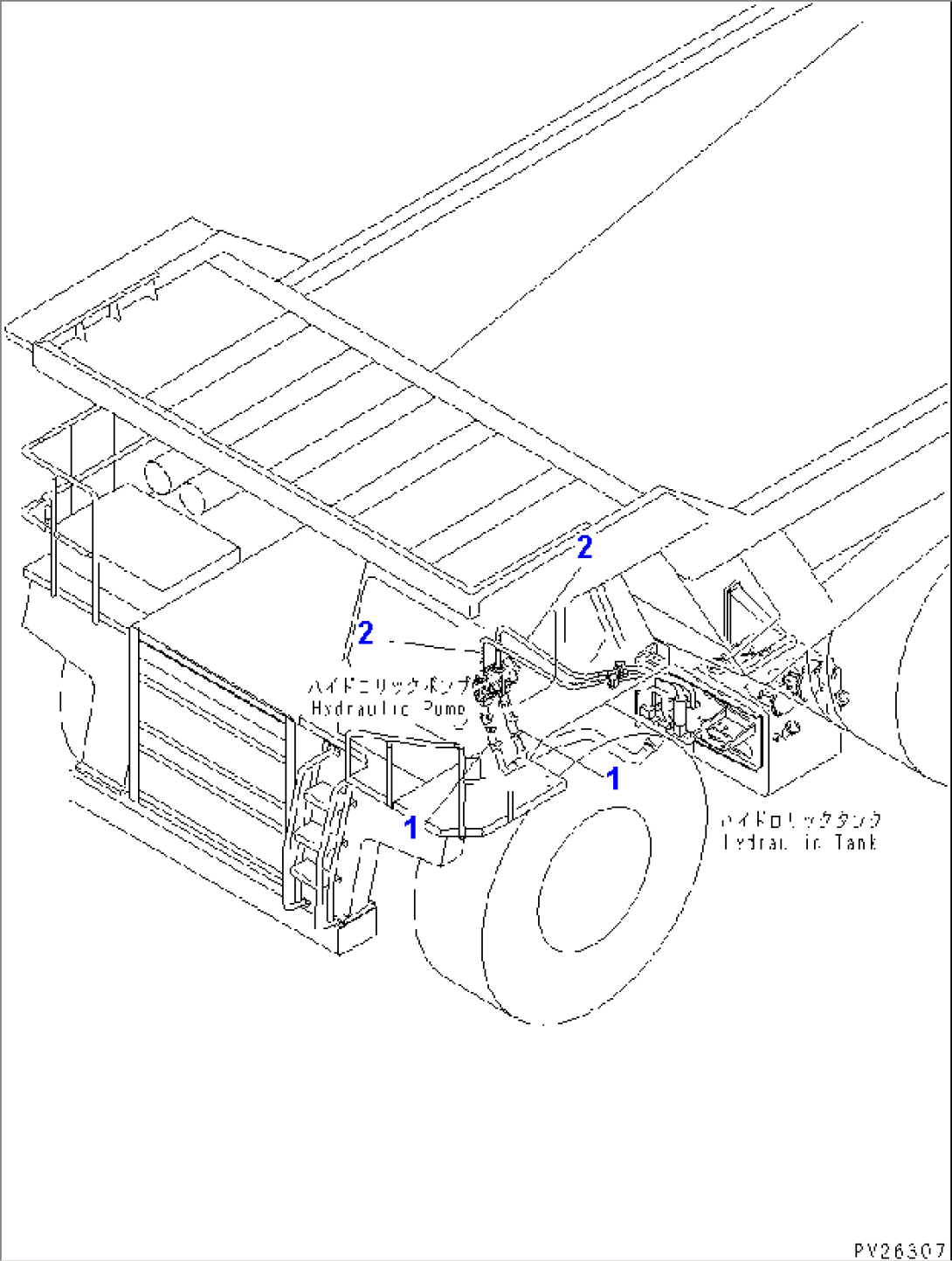

PERIODICAL REPLACEMENT CRITICAL PARTS (HYDRAULIC PIPING HOSE)
