| Item | Part No. | Part Name | Qty | Serial No. |

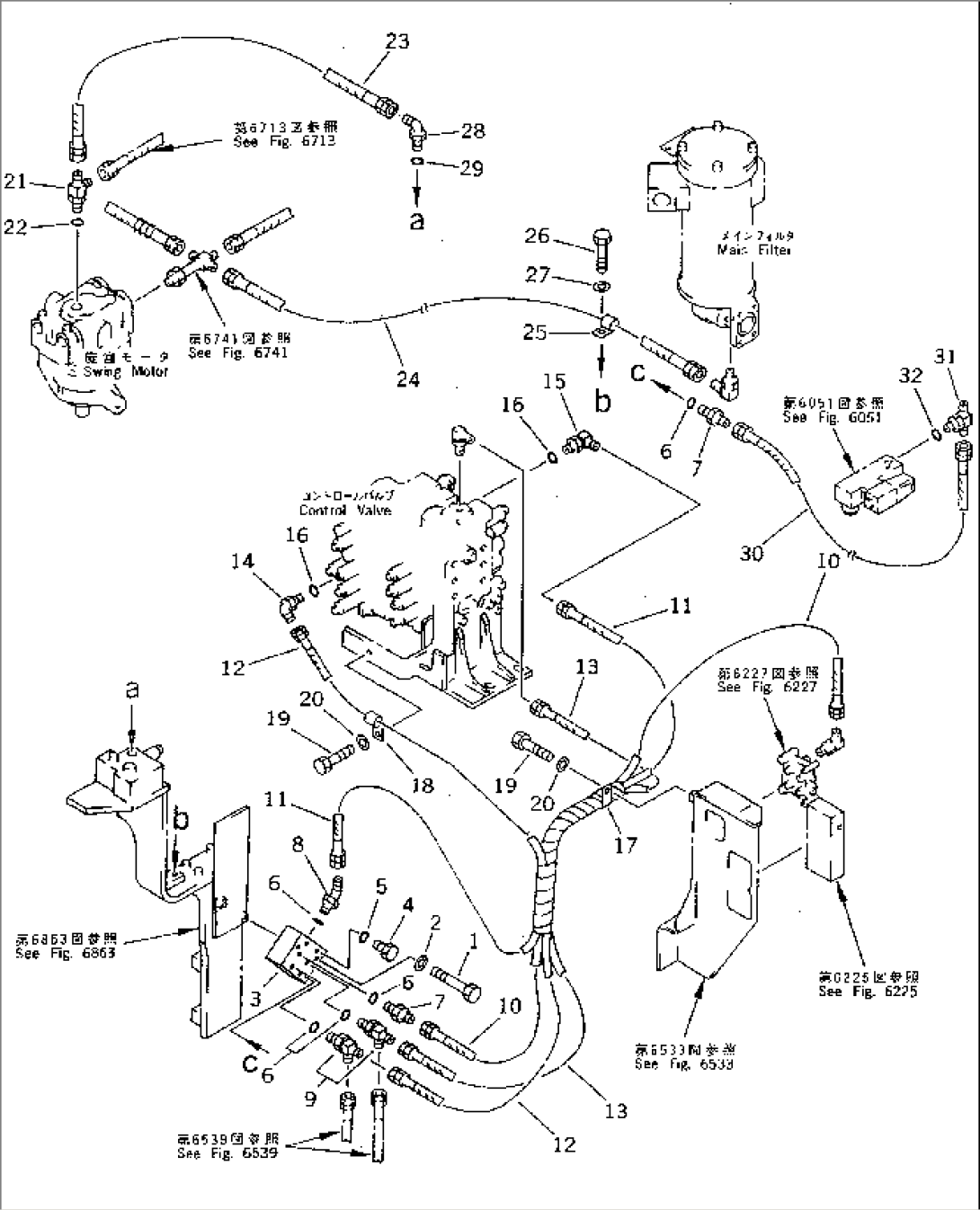

| G-1 | (\8\20Y-970-X101) | PIPING GROUP | 45001-58018 | |
| ==================== | ||||
| 1 | 01010-51070 | BOLT | 45001-@ | |
| 2 | 01643-31032 | WASHER | 45001-@ | |
| 3 | (702-19-12000) | CHECK VALVE ASS'Y | 45001-@ | |
| 4 | 07040-11409 | PLUG | 45001-@ | |
| 5 | 07002-01423 | O-RING | 45001-@ | |
| 6 | 07002-01423 | O-RING | 45001-@ | |
| 7 | 205-62-55270 | NIPPLE | 45001-@ | |
| 8 | 22X-61-18550 | ELBOW | 45001-@ | |
| 9 | 21T-62-29960 | TEE | 45001-@ | |
| 10 | 20Y-62-17220 | HOSE,(RED) | 45001-@ | |
| 11 | 20Y-62-17260 | HOSE,(BLUE) | 45001-@ | |
| 12 | 20Y-62-17220 | HOSE,(YELLOW) | 45001-@ | |
| 13 | 20Y-62-17170 | HOSE | 45001-@ | |
| 14 | 22X-61-18550 | ELBOW | 45001-@ | |
| 15 | 207-62-33920 | ELBOW | 45001-@ | |
| 16 | 07002-01423 | O-RING | 45001-@ | |
| 17 | 113-899-7950 | CLIP | 45001-@ | |
| 18 | 08036-21414 | CLIP | 45001-@ | |
| 19 | 01010-51225 | BOLT | 45001-@ | |
| 20 | 01643-31232 | WASHER | 45001-@ | |
| 21 | 21T-62-74610 | ELBOW | 45001-@ | |
| 22 | 07002-02434 | O-RING | 45001-@ | |
| 23 | 20Y-970-2210 | HOSE | 45001-@ | |
| 24 | 20Y-970-2230 | HOSE | 45001-@ | |
| 25 | 08035-03014 | CLIP | 45001-@ | |
| 26 | 01010-51225 | BOLT | 45001-@ | |
| 27 | 01643-31232 | WASHER | 45001-@ | |
| 28 | 07235-10628 | ELBOW | 45001-58018 | |
| 29 | 07002-02434 | O-RING | 45001-@ | |
| 30 | 20Y-62-17620 | HOSE | 45001-@ | |
| 31 | 20Y-62-11780 | TEE | 45001-@ | |
| 32 | 07002-01423 | O-RING | 45001-@ | |
| ==================== |
