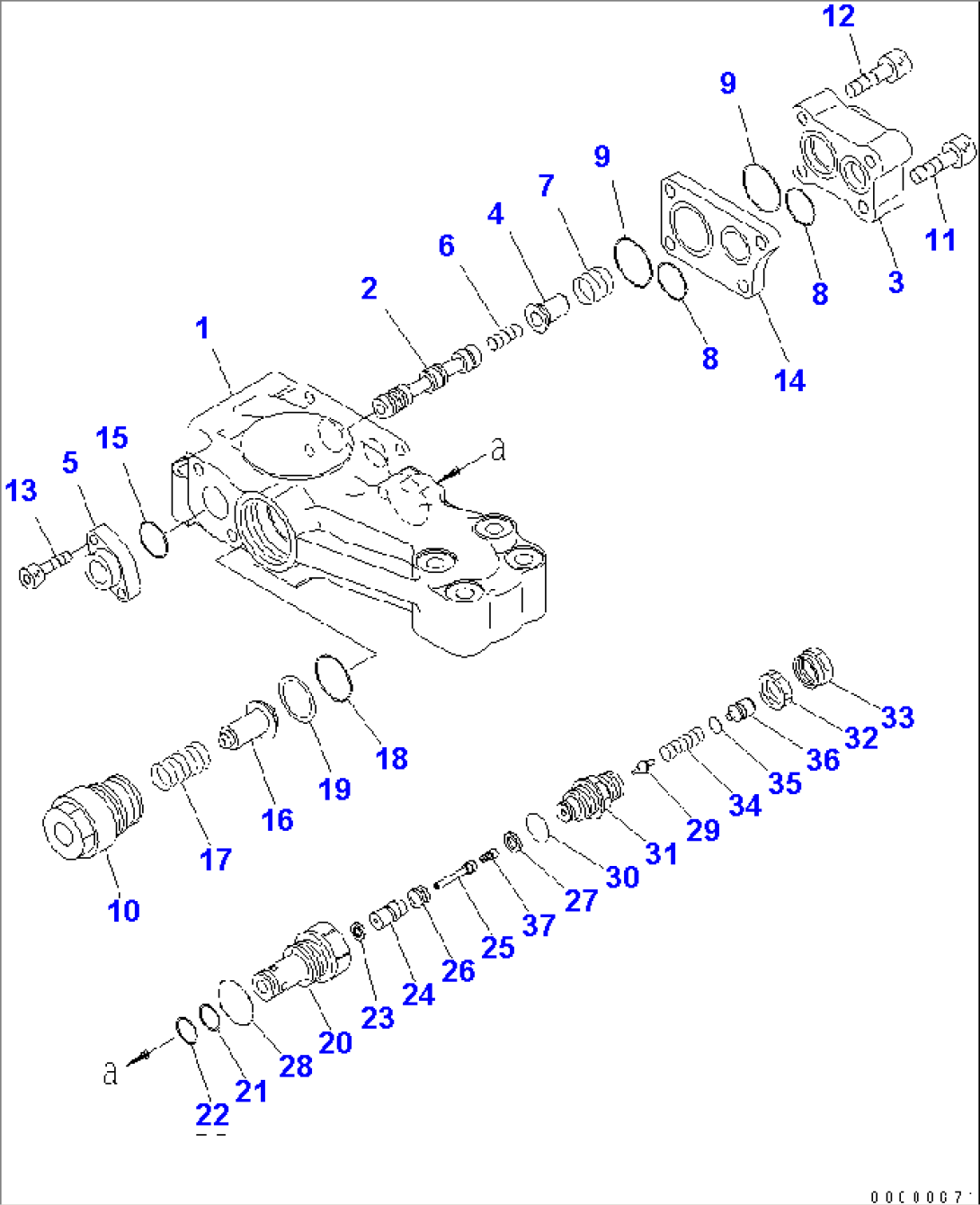

| Item | Part No. | Part Name | Qty | Serial No. |
| 702-21-08771 | PILOT VALVE | K50152- | ||
| 702-21-08770 | PILOT VALVE | K50001-K50151 | ||
| 1 | \6\ | BODY, VALVE | K50001- | |
| 2 | \6\ | SPOOL | K50001- | |
| 3 | 702-21-39410 | CASE | K50001- | |
| 4 | 702-21-39610 | RETAINER, 2.0MM | K50001- | |
| 702-21-39620 | RETAINER, 2.2MM | K50001- | ||
| 702-21-39630 | RETAINER, 1.8MM | K50001- | ||
| 5 | 702-21-39430 | FLANGE | K50001- | |
| 6 | 702-21-39440 | SPRING | K50001- | |
| 7 | 702-21-39350 | SPRING | K50001- | |
| 8 | 709-62-31280 | O-RING | K50001- | |
| 9 | 702-21-39450 | O-RING | K50001- | |
| 10 | 702-21-38480 | PLUG | K50001- | |
| 11 | 01252-60840 | BOLT | K50001- | |
| 12 | 01252-60845 | BOLT | K50001- | |
| 13 | 01252-60820 | BOLT | K50001- | |
| 14 | 702-21-39640 | SPACER | K50001- | |
| 15 | 07000-13028 | O-RING | K50001- | |
| 16 | \6\ | VALVE | K50001- | |
| 17 | 709-94-91751 | SPRING | K50001- | |
| 18 | 700-93-11320 | O-RING | K50001- | |
| 19 | 700-93-11330 | RING, BACK-UP | K50001- | |
| 709-70-79700 | VALVE ASSEMBLY, RELIEF | K50001- | ||
| 20 | \6\ | SLEEVE | K50001- | |
| 21 | 700-80-64220 | RING | K50001- | |
| 22 | 700-22-11410 | O-RING | K50001- | |
| 23 | \6\ | SEAL | K50001- | |
| 24 | \6\ | POPPET | K50001- | |
| 25 | \6\ | PISTON | K50001- | |
| 26 | \6\ | SPRING | K50001- | |
| 27 | \6\ | SEAL | K50001- | |
| 28 | 07000-13024 | O-RING | K50001- | |
| 29 | \6\ | POPPET | K50001- | |
| 30 | \6\ | O-RING | K50001- | |
| 31 | \6\ | PLUG | K50001- | |
| 32 | \6\ | NUT | K50001- | |
| 33 | \6\ | NUT | K50001- | |
| 34 | \6\ | SPRING | K50001- | |
| 35 | \6\ | O-RING | K50001- | |
| 36 | \6\ | SPACER | K50001- | |
| 37 | \6\ | SEAT | K50001- |
