| Item | Part No. | Part Name | Qty | Serial No. |

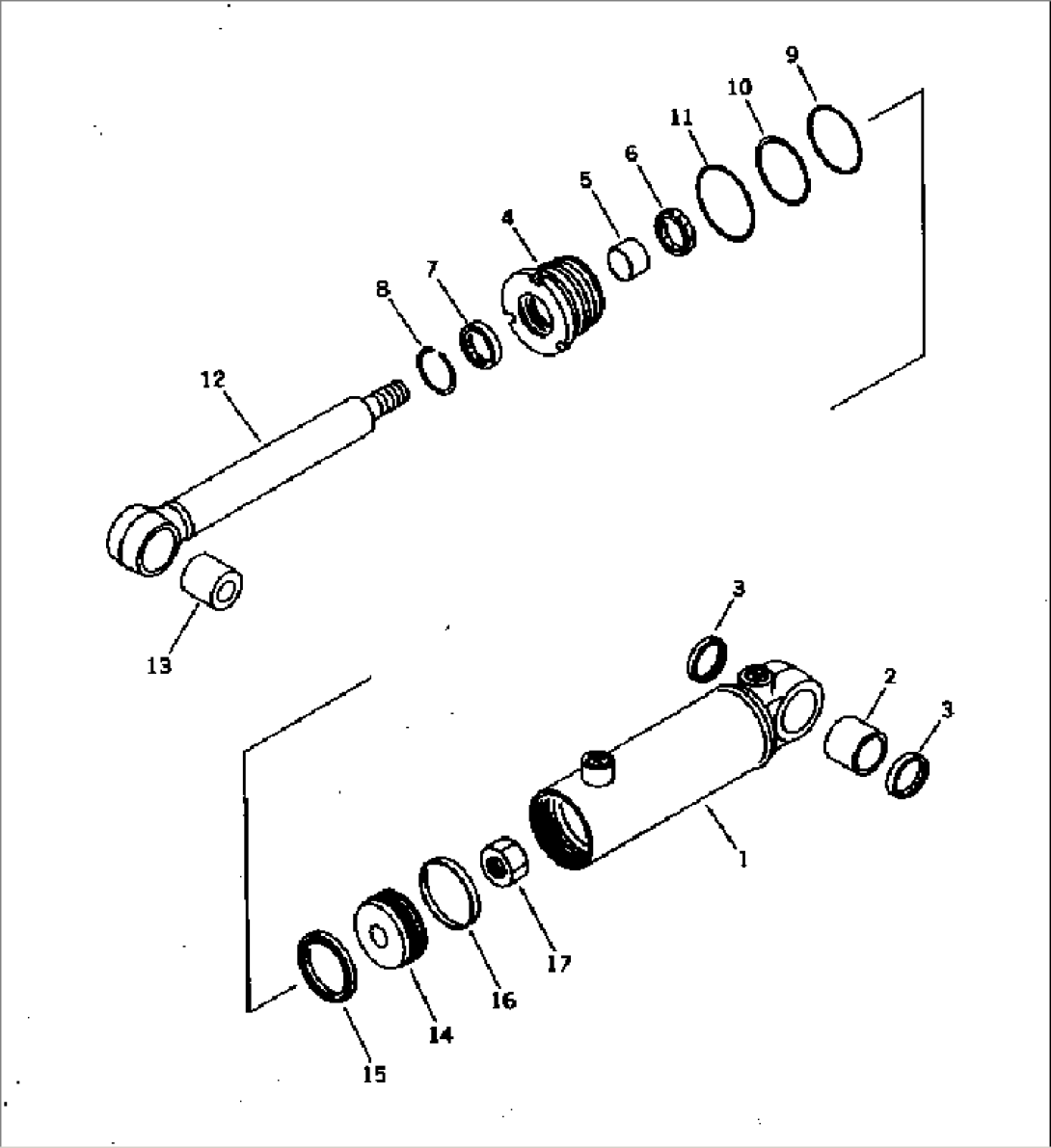

| 707-00-0Z540 | CYLINDER ASS'Y,(FINAL COATING) | 10105- | ||
| 1 | 19M-63-49240 | CYLINDER | 10105- | |
| 2 | 07143-10404 | BUSHING | 10105- | |
| 3 | 07145-10040 | SEAL,DUST (KIT) | 10105- | |
| 4 | 707-29-80820 | HEAD,CYLINDER | 10105- | |
| 5 | 07177-04025 | BUSHING | 10105- | |
| 6 | 707-51-40210 | PACKING,ROD (KIT) | 10105- | |
| 7 | 198-63-75190 | SEAL,DUST (KIT) | 10105- | |
| 8 | 07179-12052 | RING,SNAP | 10105- | |
| 9 | 07000-12075 | O-RING (KIT) | 10105- | |
| 10 | 07146-02076 | RING,BACK-UP (KIT) | 10105- | |
| 11 | 07000-02080 | O-RING (KIT) | 10105- | |
| 12 | 19M-63-49220 | ROD,PISTON | 10105- | |
| 13 | 175-63-49170 | BUSHING | 10105- | |
| 14 | 707-36-80970 | PISTON | 10105- | |
| 15 | 707-44-80070 | RING,PISTON (KIT) | 10105- | |
| 16 | 07156-00810 | RING,WEAR (KIT) | 10105- | |
| 17 | 01580-02722 | NUT | 10105- | |
| 707-98-22070 | SERVICE KIT | 10105- |
