| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 196-61-22241 | Bracket | 15479- | |
| 2 | 01010-81230 | Bolt | 15479- | |
| 3 | 01643-31232 | Washer | 15479- | |
| 4 | 415-03-11210 | Spacer | 15479- | |
| 5 | 01010-81265 | Bolt | 15479- | |
| 6 | 01643-31232 | Washer | 15479- |
- Главная
- Каталог запчастей
- Гусеничные трубоукладчики
- D355c 3 s/n 15479 up ( 50°c spec.) (hydraulic winch)
- Work equipment
- Pipelayer frame, valve mounting (3/3) (#15479 )
Поиск по каталогу

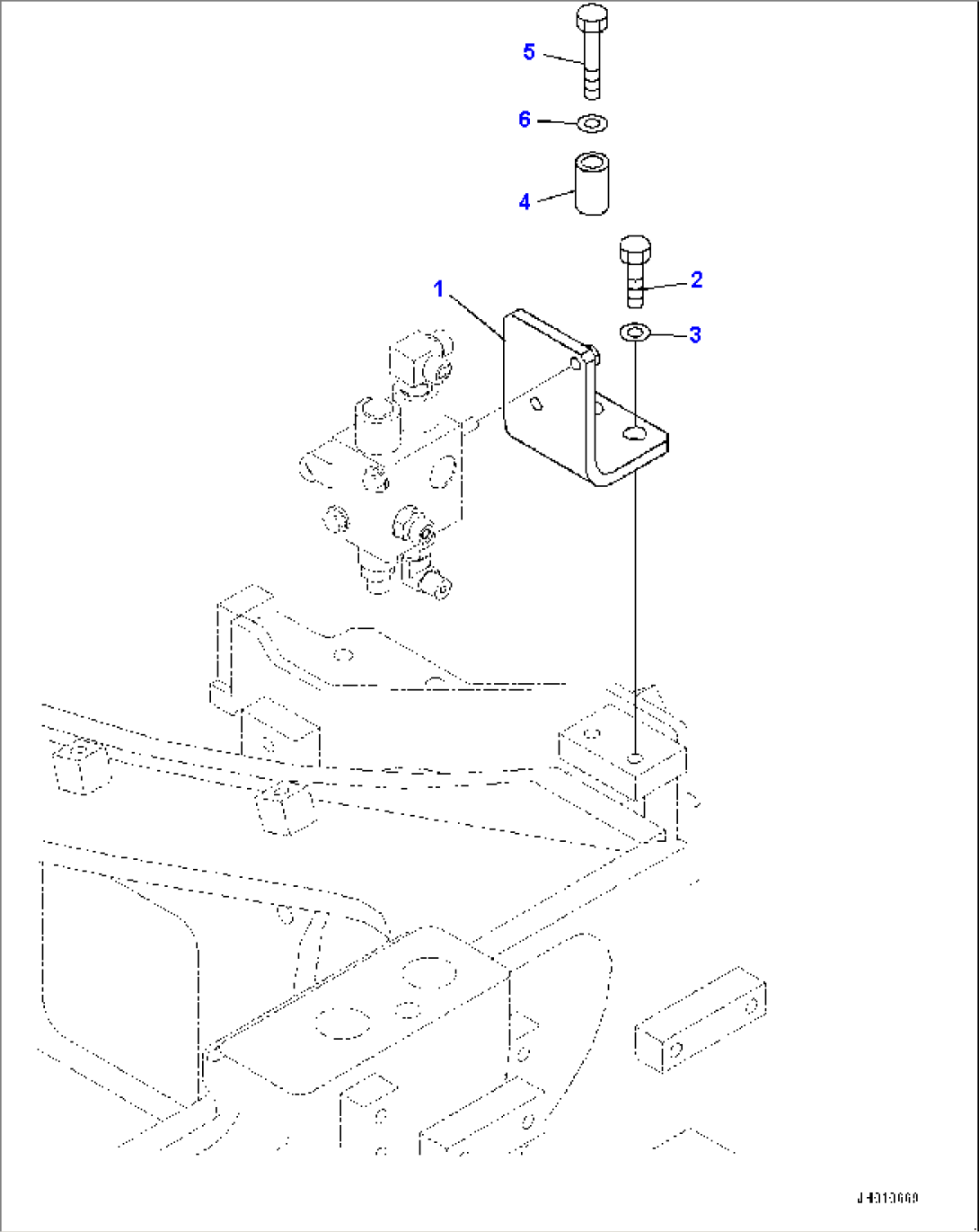

Pipelayer Frame, Valve Mounting (3/3) (#15479-)
