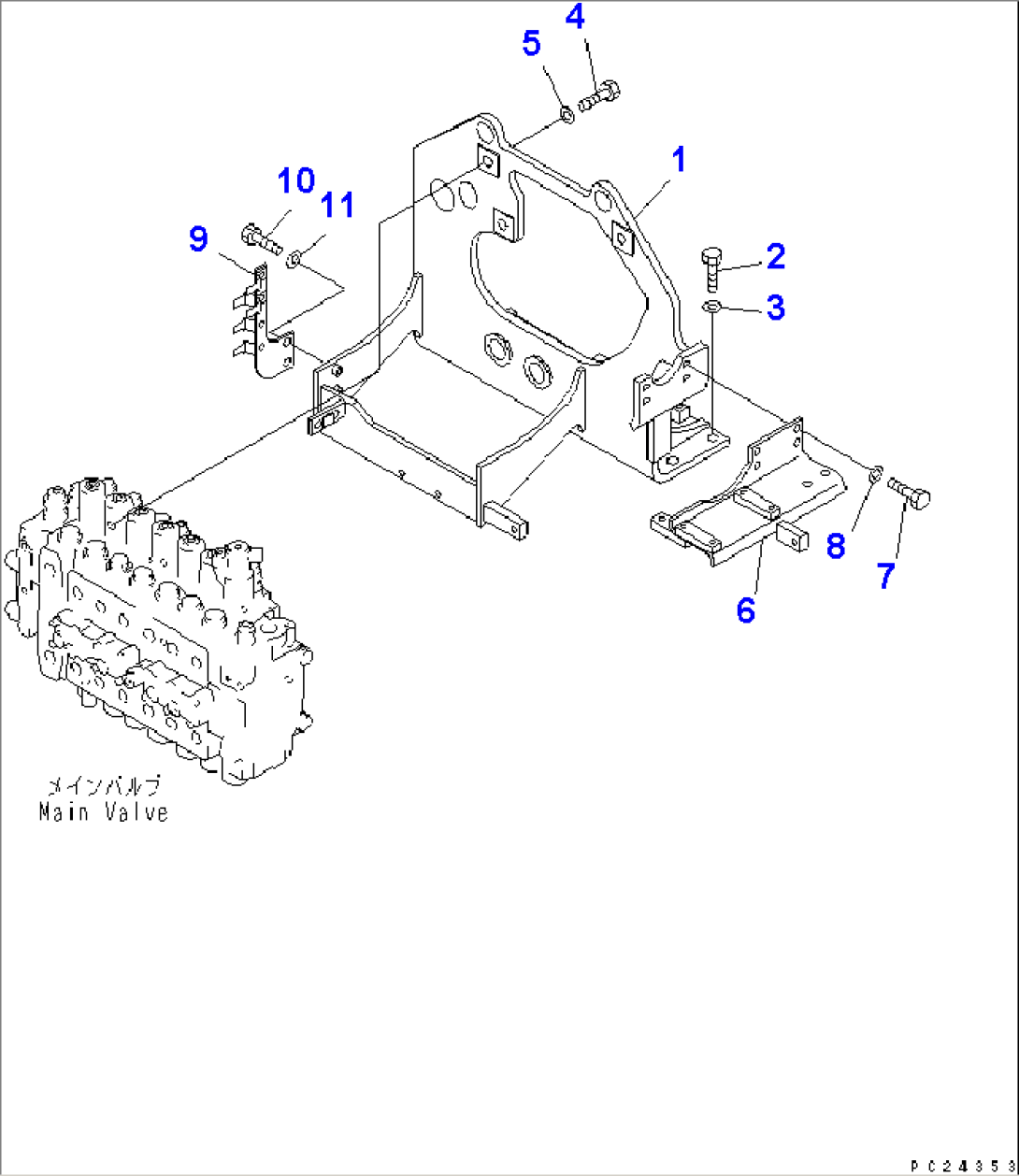

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8261-62-1270 | BRACKET | 1124- | |
| 1 | 207-62-63560 | BRACKET | 1001-1123 | |
| 2 | 01010-51660 | BOLT | 1001- | |
| 3 | 01643-31645 | WASHER | 1001- | |
| 4 | 01010-51650 | BOLT | 1001- | |
| 5 | 01643-31645 | WASHER | 1001- | |
| 6 | 20Y-62-22321 | BRACKET | 1001- | |
| 7 | 01010-51230 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 207-06-61440 | BRACKET | 1001- | |
| 10 | 01010-51235 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- |
