| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8233-62-3350 | HOSE | 1001- | |
| 2 | 8233-62-3340 | HOSE | 1001- | |
| 3 | 8233-62-3330 | HOSE | 1001- | |
| 4 | 8233-62-3320 | HOSE | 1001- | |
| 5 | 20Y-62-18890 | BOLT | 1001- | |
| 6 | 07000-02015 | O-RING | 1001- | |
| 7 | 07235-50210 | ELBOW | 1001- | |
| 8 | 07002-11423 | O-RING | 1001- |
- Главная
- Каталог запчастей
- Мобильные дробилки и ресайклеры
- Br300s 1 s/n 1001 up
- Crusher control system
- Piping (18/18) (p.p.c. valve line)
Поиск по каталогу

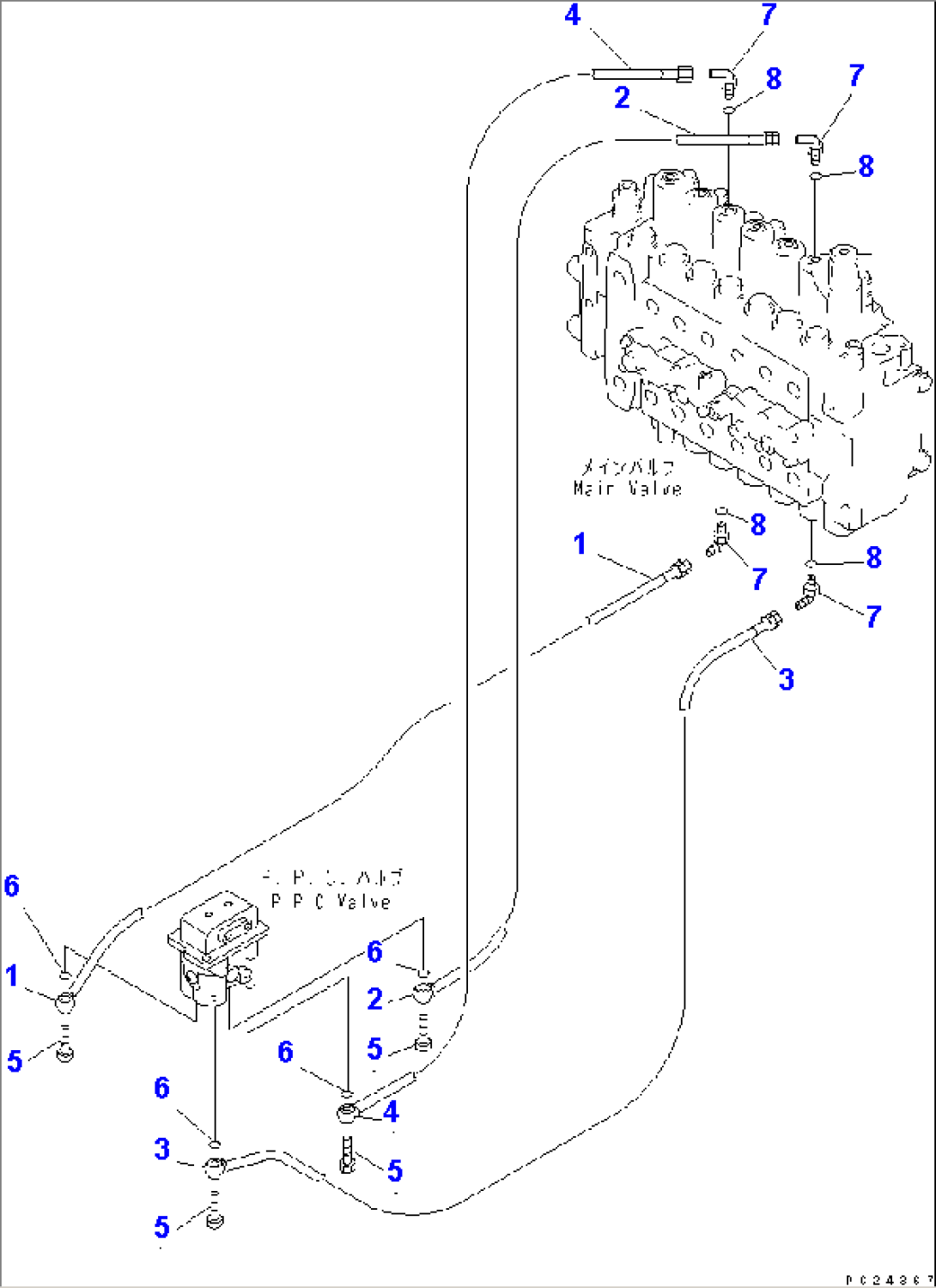

PIPING (18/18) (P.P.C. VALVE LINE)
