| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20216 | HOSE | 1001- | |
| 2 | 07235-10210 | ELBOW | 1001- | |
| 3 | 07002-11423 | O-RING | 1001- | |
| 4 | 208-26-11611 | TEE | 1001- | |
| 5 | 07002-11423 | O-RING | 1001- | |
| 6 | 07235-10210 | ELBOW | 1001- | |
| 7 | 07002-11423 | O-RING | 1001- | |
| 8 | 07102-20204 | HOSE | 1001- |
- Главная
- Каталог запчастей
- Мобильные дробилки и ресайклеры
- Br300s 1 s/n 1001 up
- Crusher control system
- Piping (8/18) (drain line) (3/3)
Поиск по каталогу

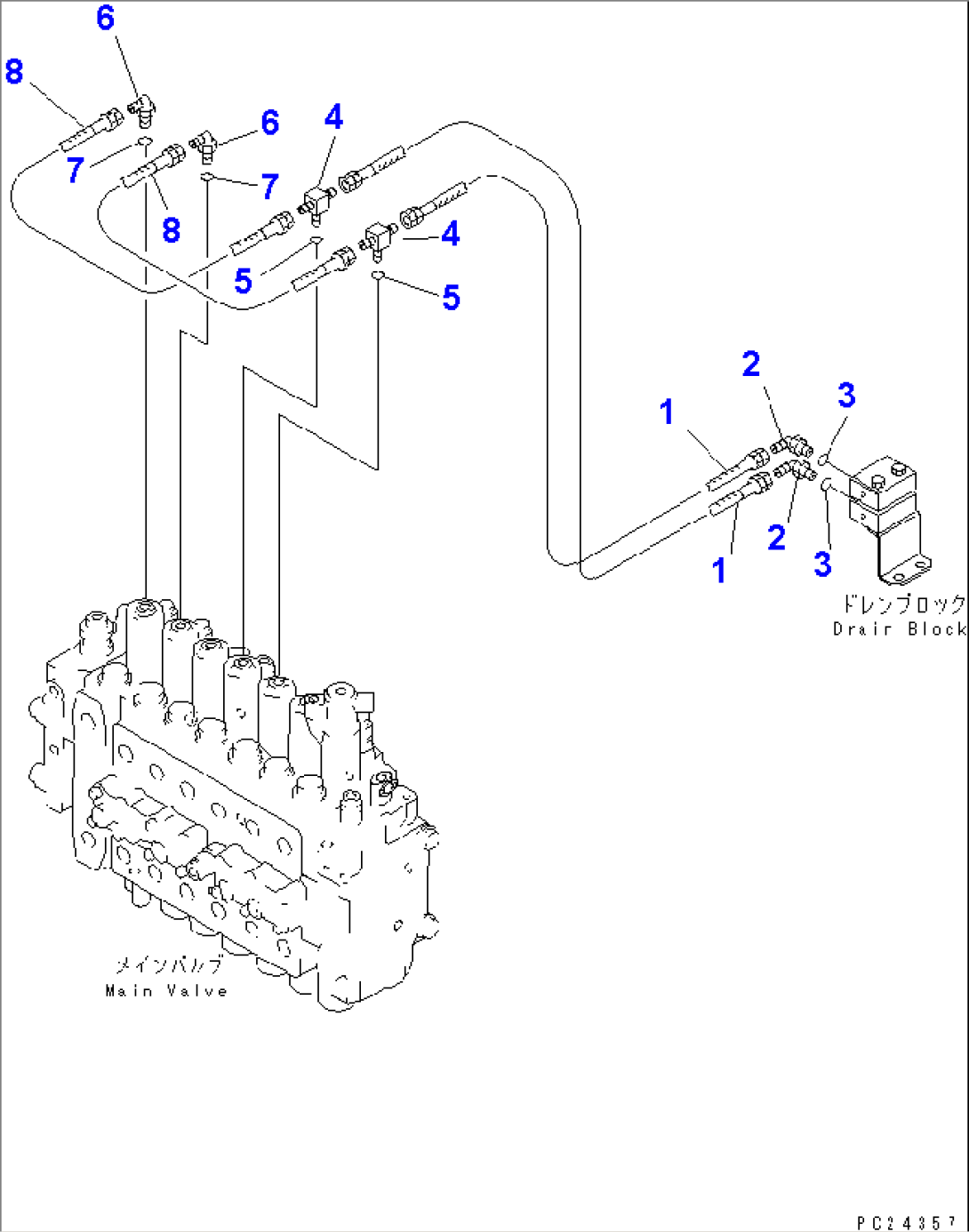

PIPING (8/18) (DRAIN LINE) (3/3)
