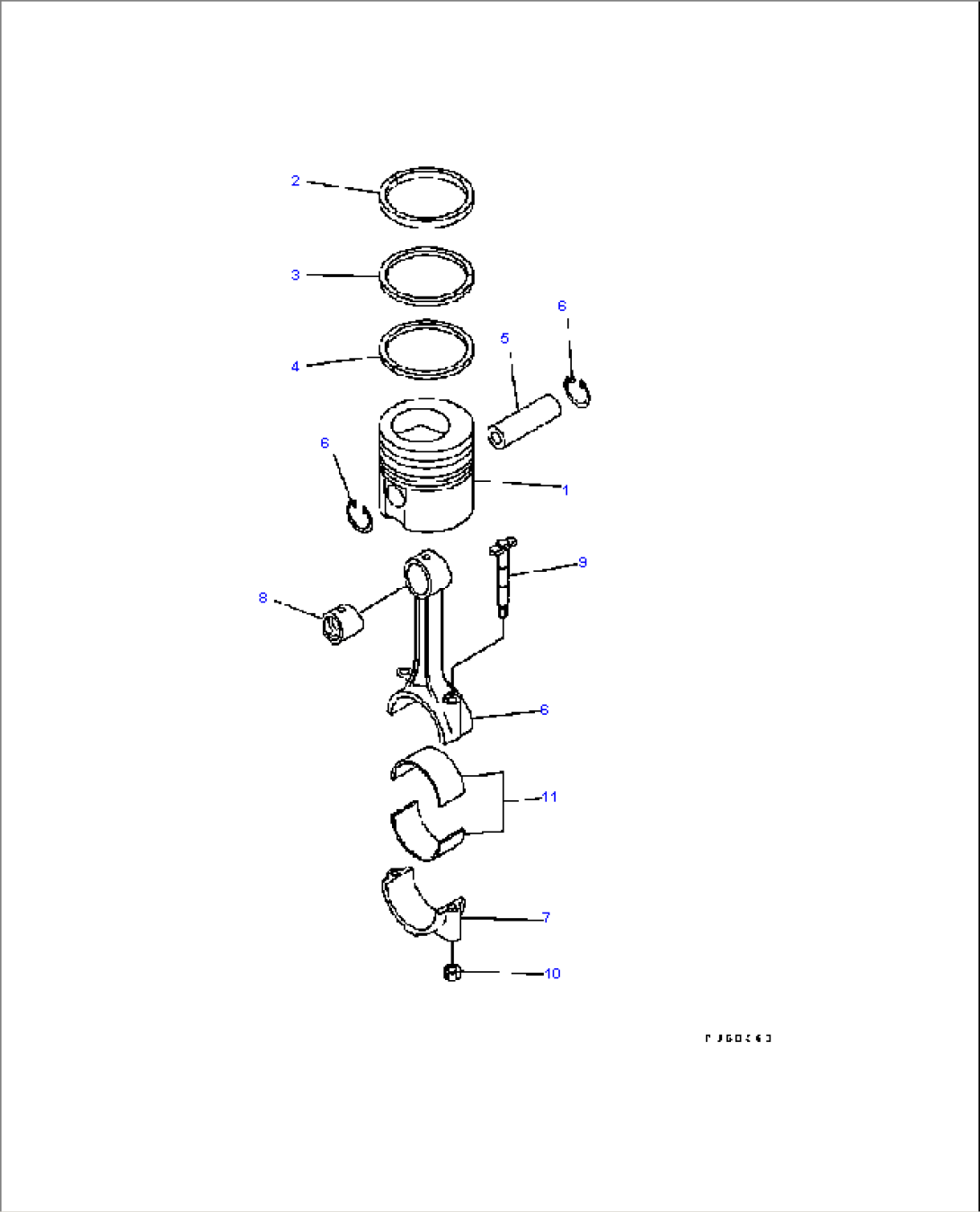

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6743-31-2110 | PISTON | 30481088- | |
| 1241748H92 | SET, PISTON RING | 30481088- | ||
| 2 | \6\1296690H1 | RING, TOP | 30481088- | |
| 3 | \6\1295158H1 | RING, SECOND | 30481088- | |
| 4 | 1296691H1 | RING, OIL | 30481088- | |
| 5 | 6742-01-5474 | PIN | 30481088- | |
| 6 | 6742-01-5309 | RING, SNAP | 30481088- | |
| 1240906H91 | CONNECTING ROD ASS'Y | 30481088- | ||
| 7 | \6\ | ROD | 30481088- | |
| 8 | 6742-01-2740 | BUSHING | 30481088- | |
| 9 | 1304869H1 | BOLT | 30481088- | |
| 10 | 6742-01-4340 | NUT | 30481088- | |
| 11 | 6742-01-2750 | METAL | 30481088- |
