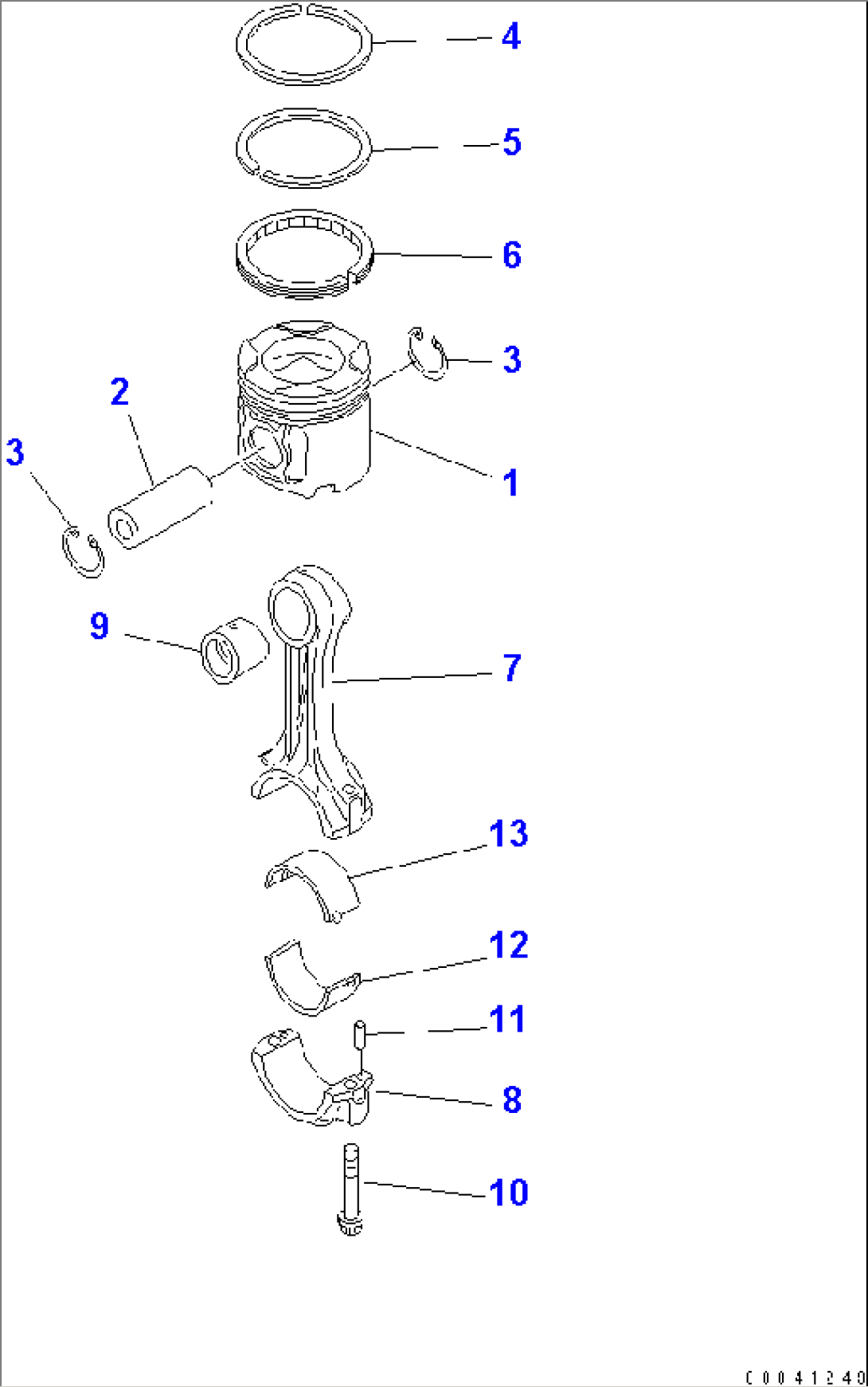

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6261-31-2130 | PISTON | 530001- | |
| 2 | 6211-31-2410 | PIN,PISTON | 530001- | |
| 3 | 04065-05220 | RING,SNAP | 530001- | |
| 6261-31-2030 | PISTON RING ASS'Y,PER CYLINDER | 530001- | ||
| 4 | \6\ | RING,TOP | 530001- | |
| 5 | \6\ | RING,SECOND | 530001- | |
| 6 | \6\ | RING,OIL | 530001- | |
| 6261-31-3100 | CONNECTING ROD | 530001- | ||
| 7 | \6\ | ROD,CONNECTING | 530001- | |
| 8 | \6\ | CAP,CONNECTING ROD | 530001- | |
| 9 | 6261-31-3140 | BUSHING | 530001- | |
| 10 | 6210-31-3310 | BOLT | 530001- | |
| 11 | 02400-10413 | PIN,DOWEL | 530001- | |
| STANDARD | ||||
| 6210-32-3040 | METAL ASS'Y | 530001- | ||
| 12 | \6\ | METAL,LOWER | 530001- | |
| 13 | \6\ | METAL,UPPER | 530001- | |
| UNDERSIZE 0.25MM | ||||
| 6210-39-3040 | METAL ASS'Y | 530001- | ||
| 12 | \6\ | METAL,LOWER | 530001- | |
| 13 | \6\ | METAL,UPPER | 530001- | |
| UNDERSIZE 0.50MM | ||||
| 6210-38-3040 | METAL ASS'Y | 530001- | ||
| 12 | \6\ | METAL,LOWER | 530001- | |
| 13 | \6\ | METAL,UPPER | 530001- | |
| UNDERSIZE 0.75MM | ||||
| 6210-37-3040 | METAL ASS'Y | 530001- | ||
| 12 | \6\ | METAL,LOWER | 530001- | |
| 13 | \6\ | METAL,UPPER | 530001- | |
| UNDERSIZE 1.00MM | ||||
| 6210-36-3040 | METAL ASS'Y | 530001- | ||
| 12 | \6\ | METAL,LOWER | 530001- | |
| 13 | \6\ | METAL,UPPER | 530001- |
