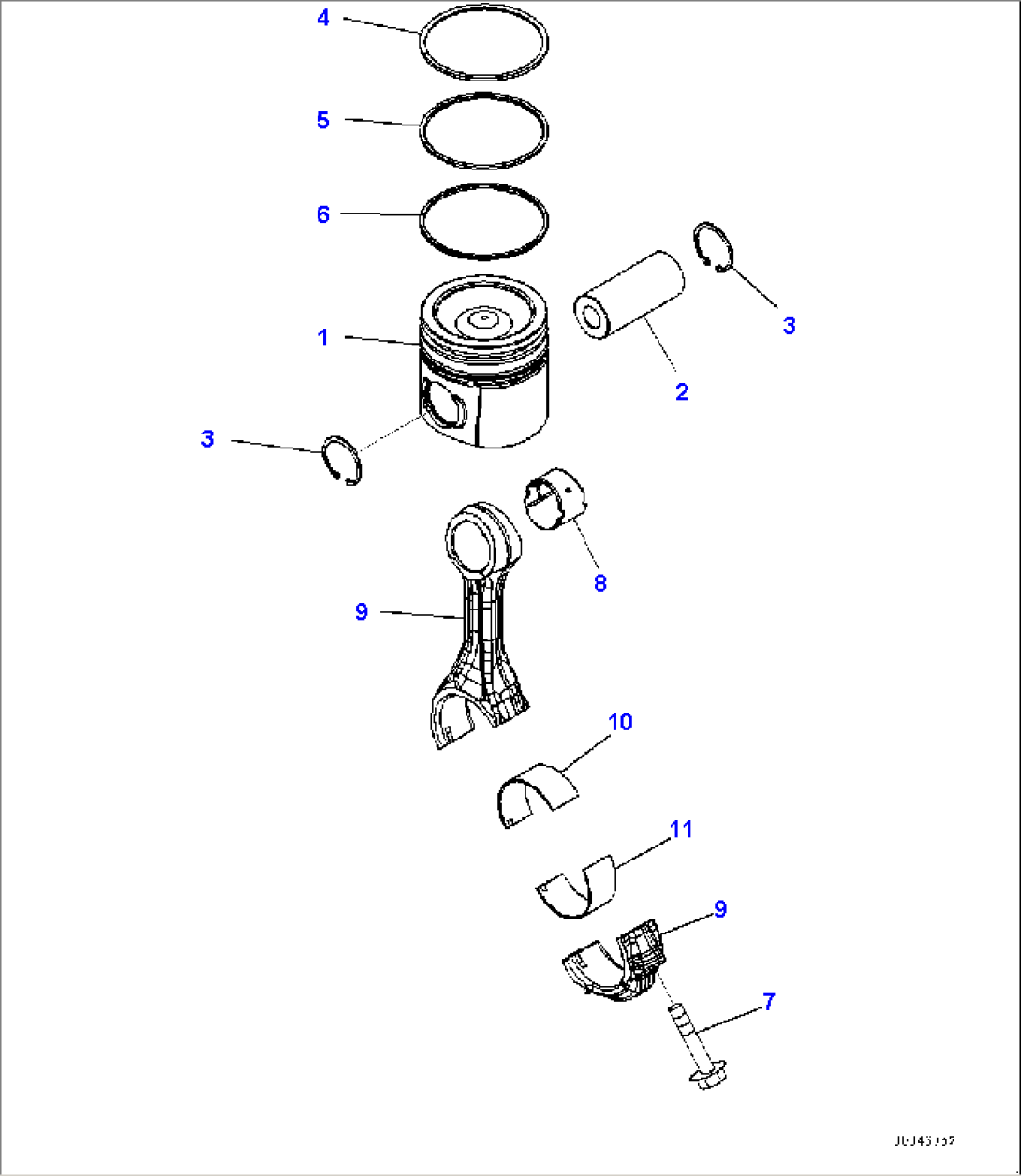

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6754-31-2112 | Piston | 26642719- | |
| 1 | 6754-31-2111 | Piston | 26540705-26642718 | |
| 2 | 6754-31-2410 | Pin | 26540705- | |
| 3 | 6732-31-2420 | Ring | 26540705- | |
| 3 | 6754-31-2510 | Ring Assembly | 26644495- | |
| 3 | 6754-31-2010 | Ring Assembly | 26540705-26644494 | |
| 4 | Ring, Top | 26644495- | ||
| 4 | Ring, Top | 26540705-26644494 | ||
| 5 | Ring, Second | 26644495- | ||
| 5 | Ring, Second | 26540705-26644494 | ||
| 6 | Ring, Oil | 26644495- | ||
| 6 | Ring, Oil | 26540705-26644494 | ||
| 6737-32-3121 | Rod Assembly | 26540705- | ||
| 7 | 6732-31-3320 | Screw | 26540705- | |
| 8 | 6732-31-3132 | Bushing | 26540705- | |
| 9 | Rod | 26540705- | ||
| 10 | 6754-31-3410 | Bearing, Upper | 26540705- | |
| 11 | 6732-31-3420 | Bearing, Lower | 26540705- |
