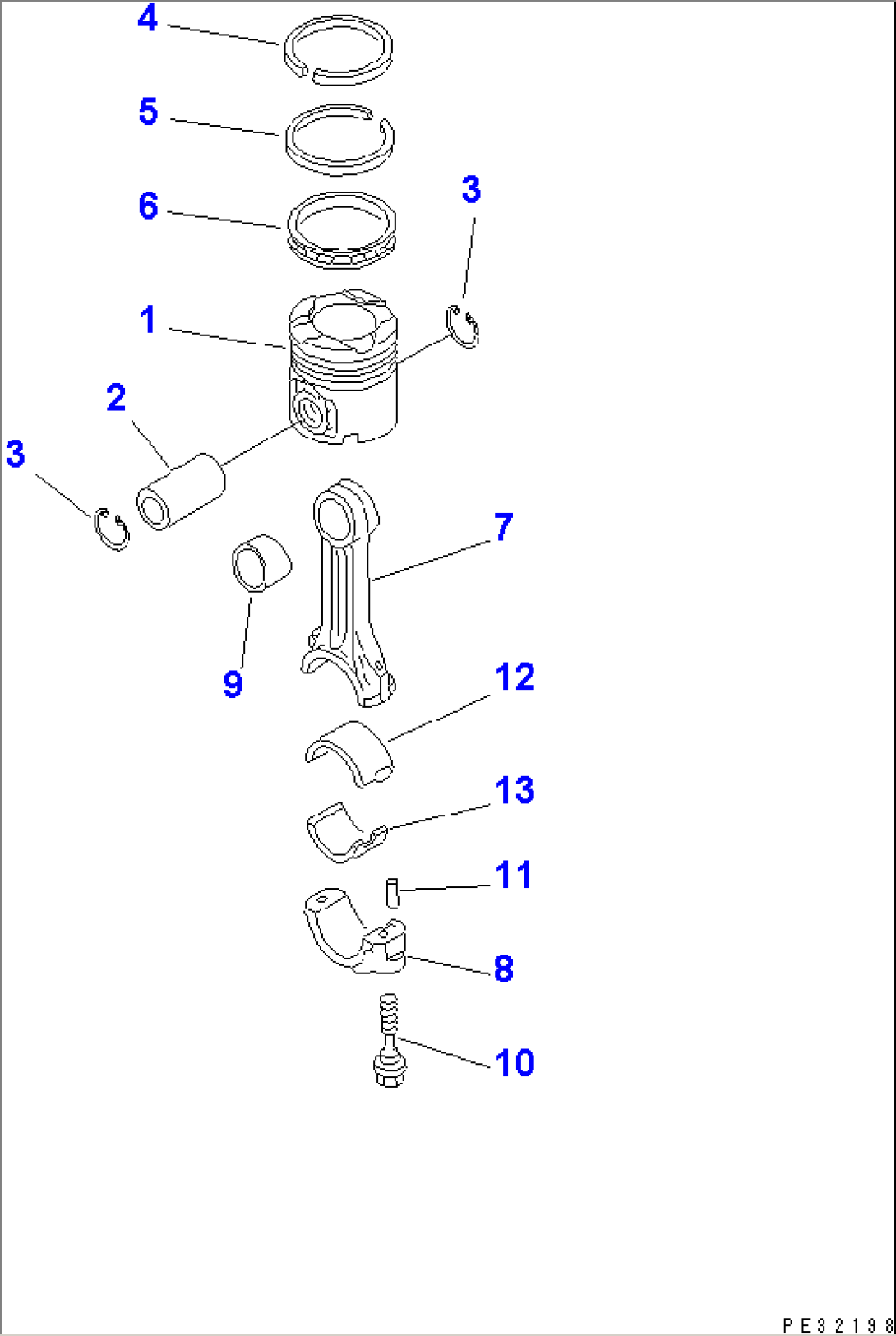

| Item | Part No. | Part Name | Qty | Serial No. |
| 6150-31-2012 | PISTON ASS'Y | 18200- | ||
| \0\6150-31-2011 | PISTON ASS'Y | 10121-18199 | ||
| 6150-31-2010 | PISTON ASS'Y | 10001-10120 | ||
| 1 | 6150-31-2112 | PISTON | 18200- | |
| 1 | \0\6150-31-2111 | PISTON | 10121-18199 | |
| 1 | 6150-31-2110 | PISTON | 10001-10120 | |
| 2 | 6150-31-2410 | PIN,PISTON | 10001- | |
| 3 | 04065-04818 | RING,SNAP | 10001- | |
| 6150-31-2032 | PISTON RING ASS'Y | 16972- | ||
| \0\6150-31-2031 | PISTON RING ASS'Y | 10121-16971 | ||
| 6150-31-2030 | PISTON RING ASS'Y | 10001-10120 | ||
| 4 | \6\ | RING,TOP | 16972- | |
| 4 | \6\ | RING,TOP | 10121-16971 | |
| 4 | \6\ | RING,TOP | 10001-10120 | |
| 5 | \6\ | RING,SECOND | 10121- | |
| 5 | \6\ | RING,SECOND | 10001-10120 | |
| 6 | \6\ | RING,OIL | 10121- | |
| 6 | \6\ | RING,OIL | 10001-10120 | |
| 6150-31-3100 | CONNECTING ROD ASS'Y | 10001- | ||
| 7 | \6\ | ROD,CONNECTING | 10001- | |
| 8 | \6\ | CAP | 10001- | |
| 9 | 6150-31-3130 | BUSHING | 10001- | |
| 10 | 6150-31-3310 | BOLT | 10001- | |
| 11 | 02400-10413 | PIN,DOWEL | 10001- | |
| STANDARD | ||||
| 6150-31-3040 | METAL ASS'Y | 10001- | ||
| 12 | \6\ | METAL,UPPER | 10001- | |
| 13 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 0.25MM | ||||
| 12 | 6150-39-3040 | METAL ASS'Y | 10001- | |
| 12 | \6\ | METAL,UPPER | 10001- | |
| 13 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 0.50MM | ||||
| 12 | 6150-38-3040 | METAL ASS'Y | 10001- | |
| 12 | \6\ | METAL,UPPER | 10001- | |
| 13 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 0.75MM | ||||
| 12 | 6150-37-3040 | METAL ASS'Y | 10001- | |
| 12 | \6\ | METAL,UPPER | 10001- | |
| 13 | \6\ | METAL,LOWER | 10001- | |
| UNDERSIZE 1.00MM | ||||
| 12 | 6150-36-3040 | METAL ASS'Y | 10001- | |
| 12 | \6\ | METAL,UPPER | 10001- | |
| 13 | \6\ | METAL,LOWER | 10001- |
