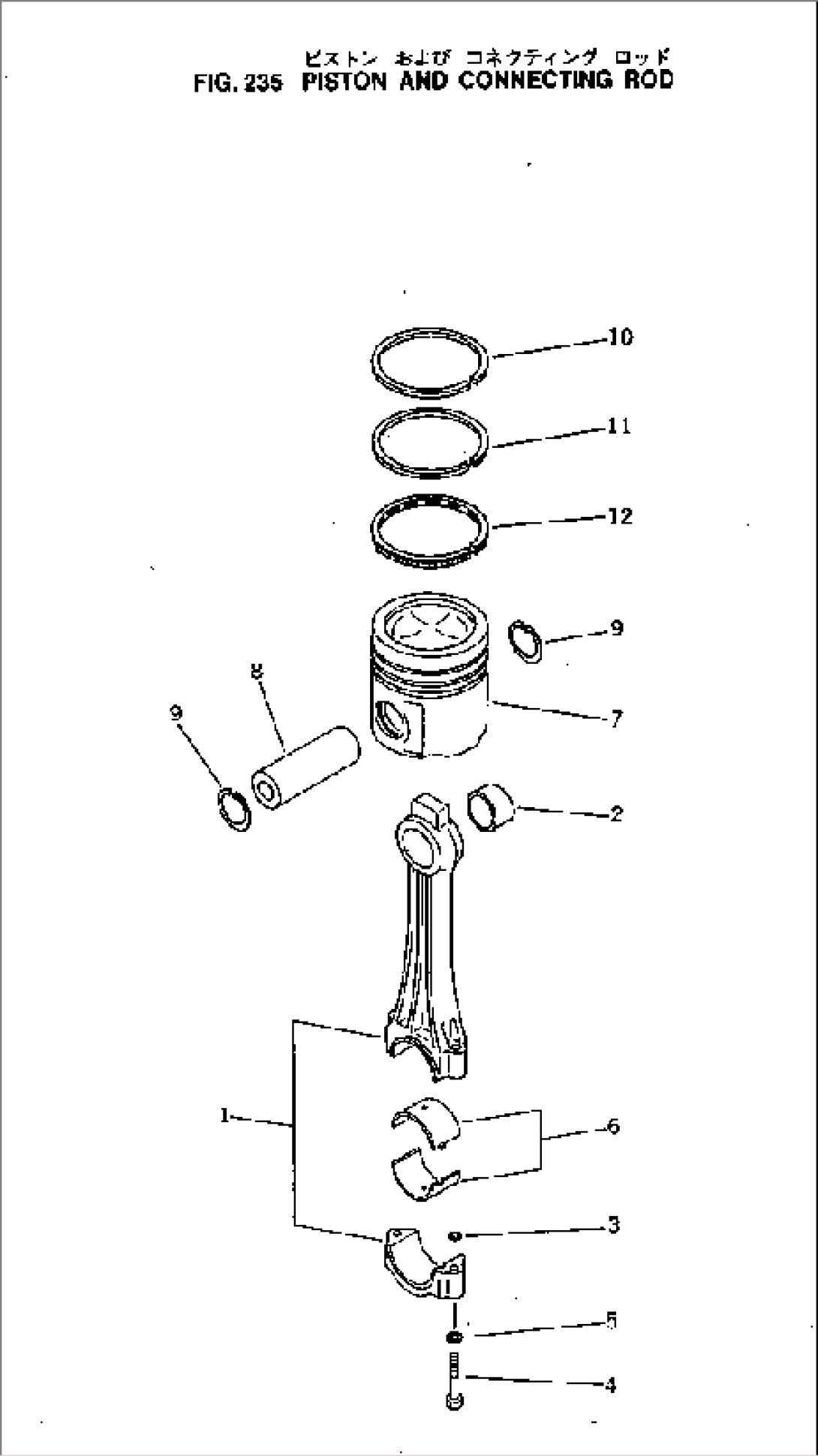

| Item | Part No. | Part Name | Qty | Serial No. |
| CU3014453 | CONNECTING ROD ASS'Y | ..- | ||
| CU3007573 | CONNECTING ROD A. | .-.. | ||
| CUAR-10012 | CONNECTING ROD A. | 101153-. | ||
| 1 | \6\ | ROD,CONNECTING | .- | |
| 1 | \6\ | ROD,CONNECTING | 101153-. | |
| 2 | CU3000965 | BUSHING | 101834- | |
| 2 | CU205180 | BUSHING | 101153-101833 | |
| 3 | CU69558 | PIN,DOWEL | 101834- | |
| 3 | CU205117 | PIN,DOWEL | 101153-101833 | |
| 4 | CU3013265 | BOLT | ..- | |
| 4 | CU205119 | BOLT | 101153-.. | |
| 5 | CU205126 | WASHER | 101153- | |
| 6 | CU205840 | METAL | 101153- | |
| 6 | CU205841 | METAL, 0.010INCH | 101153- | |
| 6 | CU205842 | METAL, 0.020INCH | 101153- | |
| 6 | CU205843 | METAL, 0.030INCH | 101153- | |
| 6 | CU205844 | METAL, 1.00MM | 101153- | |
| CU3026333 | PISTON ASS'Y | 118882- | ||
| CU3009016 | PISTON ASS'Y | .-118881 | ||
| CUAR-12496 | PISTON ASS'Y | 101153-. | ||
| 7 | CU3026270 | PISTON | 118882- | |
| 7 | CU3007750 | PISTON | .-118881 | |
| 7 | CU207330 | PISTON | 101153-. | |
| 8 | CU205200 | PIN,PISTON | 101153- | |
| 9 | CU205269 | RING,SNAP | 101153- | |
| CUAR-10680 | PISTON RING ASS'Y | 101153- | ||
| 10 | \6\ | RING,TOP | 101153- | |
| 11 | \6\ | RING,SECOND | 101153- | |
| 12 | \6\ | RING,OIL | 101153- |
