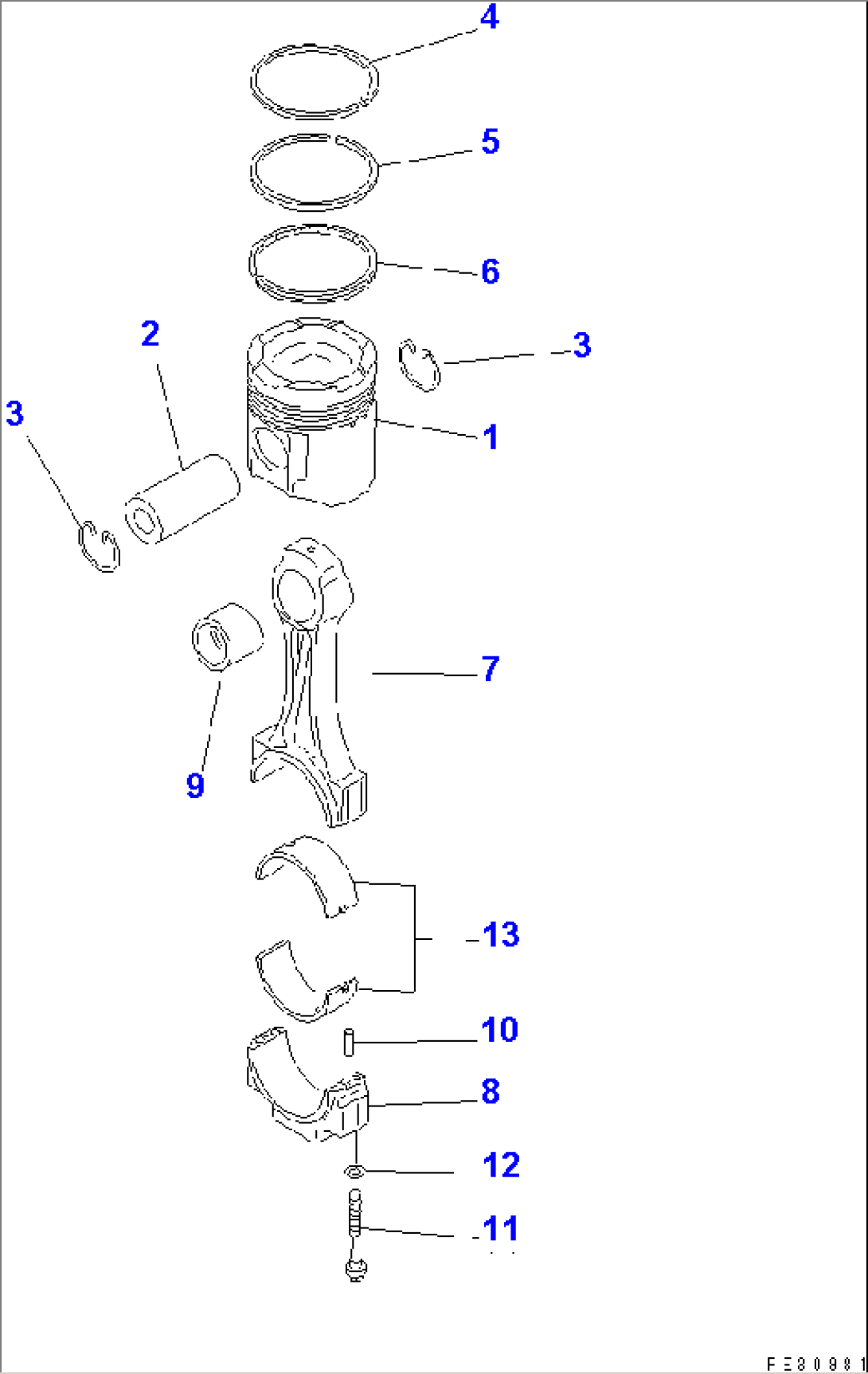

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6164-31-2110 | PISTON | 10040- | |
| 2 | 6162-33-2410 | PIN,PISTON | 10040- | |
| 3 | 6162-33-2420 | RING,SNAP | 10040- | |
| 6162-33-2060 | PISTON RING ASS'Y | 10040- | ||
| 4 | \6\ | RING,TOP | 10040- | |
| 5 | \6\ | RING,SECOND | 10040- | |
| 6 | \6\ | RING,OIL | 10040- | |
| 6164-31-3100 | CONNECTING ROD ASS'Y | 10040- | ||
| 7 | \6\ | ROD,CONNECTING | 10040- | |
| 8 | \6\ | CAP | 10040- | |
| 9 | 6162-33-3131 | BUSHING | 10040- | |
| 10 | 02400-10413 | PIN,DOWEL | 10040- | |
| 11 | 6164-31-3310 | BOLT | 10040- | |
| 12 | 6164-31-3330 | WASHER | 10040- | |
| STANDARD | ||||
| 13 | 6164-31-3041 | METAL ASS'Y | 10040- | |
| (\2\6164-31-3040) | METAL ASS'Y | (10040-10515) | ||
| \6\ | METAL | 10516- | ||
| \6\ | METAL | 10040-10515 | ||
| UNDERSIZE 0.25MM | ||||
| 13 | 6164-39-3041 | METAL ASS'Y | 10040- | |
| (\2\6164-39-3040) | METAL ASS'Y | (10040-10515) | ||
| \6\ | METAL | 10516- | ||
| \6\ | METAL | 10040-10515 | ||
| UNDERSIZE 0.50MM | ||||
| 13 | 6164-38-3041 | METAL ASS'Y | 10040- | |
| (\2\6164-38-3040) | METAL ASS'Y | (10040-10515) | ||
| \6\ | METAL | 10516- | ||
| \6\ | METAL | 10040-10515 | ||
| UNDERSIZE 0.75MM | ||||
| 13 | 6164-37-3041 | METAL ASS'Y | 10040- | |
| (\2\6164-37-3040) | METAL ASS'Y | (10040-10515) | ||
| \6\ | METAL | 10516- | ||
| \6\ | METAL | 10040-10515 | ||
| UNDERSIZE 1.00MM | ||||
| 13 | 6164-36-3041 | METAL ASS'Y | 10040- | |
| (\2\6164-36-3040) | METAL ASS'Y | (10040-10515) | ||
| \6\ | METAL | 10516- | ||
| \6\ | METAL | 10040-10515 |
