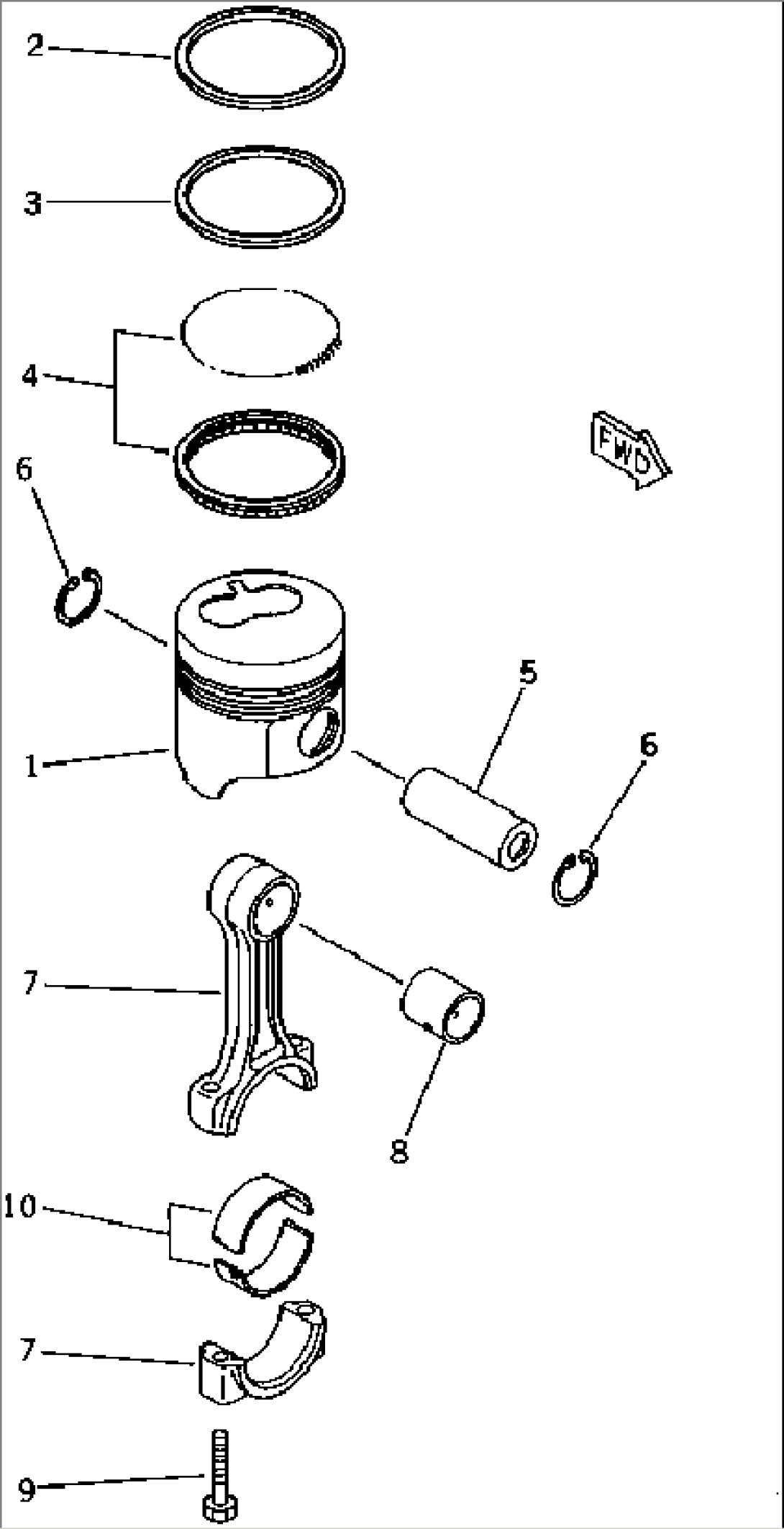

| Item | Part No. | Part Name | Qty | Serial No. |
| STANDARD | ||||
| YM119270-22091 | PISTON ASS'Y | 00101- | ||
| 1 | \6\ | PISTON | 00101- | |
| YM719270-22501 | PISTON RING ASS'Y | 00101- | ||
| 2 | \6\ | RING,TOP | 00101- | |
| 3 | \6\ | RING,SECOND | 00101- | |
| 4 | \6\ | OIL RING ASS'Y | 00101- | |
| \6\ | EXPANDER,COIL | 00101- | ||
| \6\ | RING,OIL | 00101- | ||
| OVERSIZE 0.25MM | ||||
| YM719270-22821 | PISTON ASS'Y | 00101- | ||
| 1 | \6\ | PISTON | 00101- | |
| YM719270-22541 | PISTON RING ASS'Y | 00101- | ||
| 2 | \6\ | RING,TOP | 00101- | |
| 3 | \6\ | RING,SECOND | 00101- | |
| 4 | \6\ | OIL RING ASS'Y | 00101- | |
| 5 | YM119260-22300 | PIN,PISTON | 00101- | |
| 6 | YM105225-22400 | RING,SNAP | 00101- | |
| YM719260-23100 | CONNECTING ROD A. | 00101- | ||
| 7 | \6\ | ROD,CONNECTING | 00101- | |
| 8 | \6\ | BUSHING | 00101- | |
| YM119260-23910 | BUSHING,(REPAIR PART) | 00101- | ||
| 9 | YM119260-23200 | BOLT | 00101- | |
| STANDARD | ||||
| 10 | YM719260-23600 | CRANK PIN METAL A. | 00101- | |
| \6\ | METAL | 00101- | ||
| UNDERSIZE 0.25MM | ||||
| 10 | YM719260-23610 | CRANK PIN METAL A. | 00101- | |
| \6\ | METAL | 00101- |
