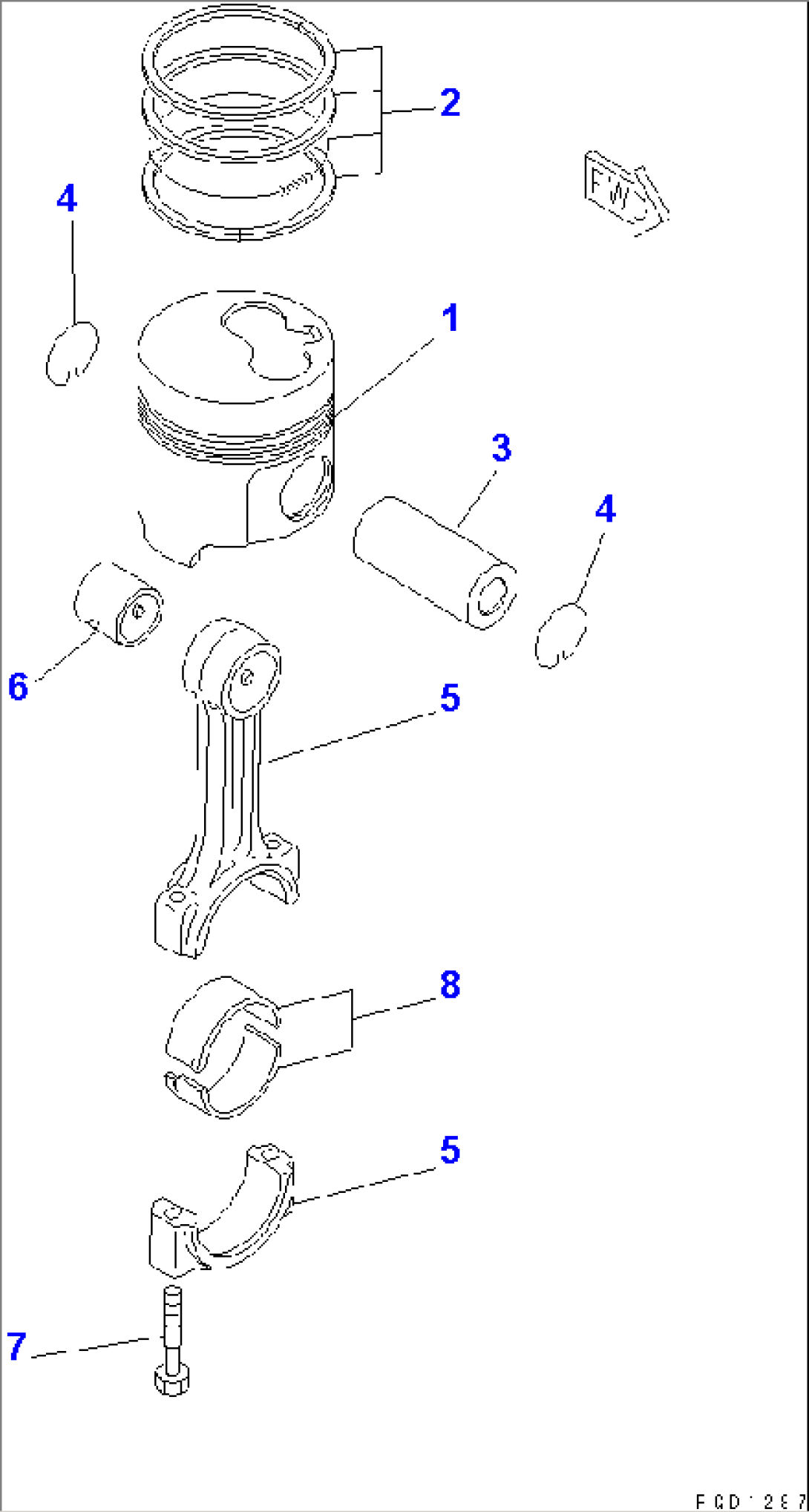

| Item | Part No. | Part Name | Qty | Serial No. |
| STANDARD | ||||
| 454-371 | PISTON ASS'Y | 30001- | ||
| 1 | PISTON | 30001- | ||
| 2 | 454-395 | PISTON RING ASS'Y | 30001- | |
| OVERSIZE 0.25MM | ||||
| 454-380 | PISTON ASS'Y | 30001- | ||
| 1 | PISTON | 30001- | ||
| 2 | 454-396 | PISTON RING ASS'Y | 30001- | |
| 3 | 454-260 | PIN,PISTON | 30001- | |
| 4 | 457-522 | RING,SNAP | 30001- | |
| 5 | 451-596 | CONNECTING ROD ASS'Y | 30001- | |
| 6 | 453-337 | BUSHING | 30001- | |
| 7 | 456-699 | BOLT | 30001- | |
| STANDARD | ||||
| 8 | 450-192 | CRANK PIN METAL A. | 30001- | |
| UNDERSIZE 0.25MM | ||||
| 8 | 453-348 | CRANK PIN METAL A. | 03402- |
