| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00790) | PUMP ASS'Y | 25057- | ||
| (708-2L-00600) | PUMP ASS'Y | 20001-25056 | ||

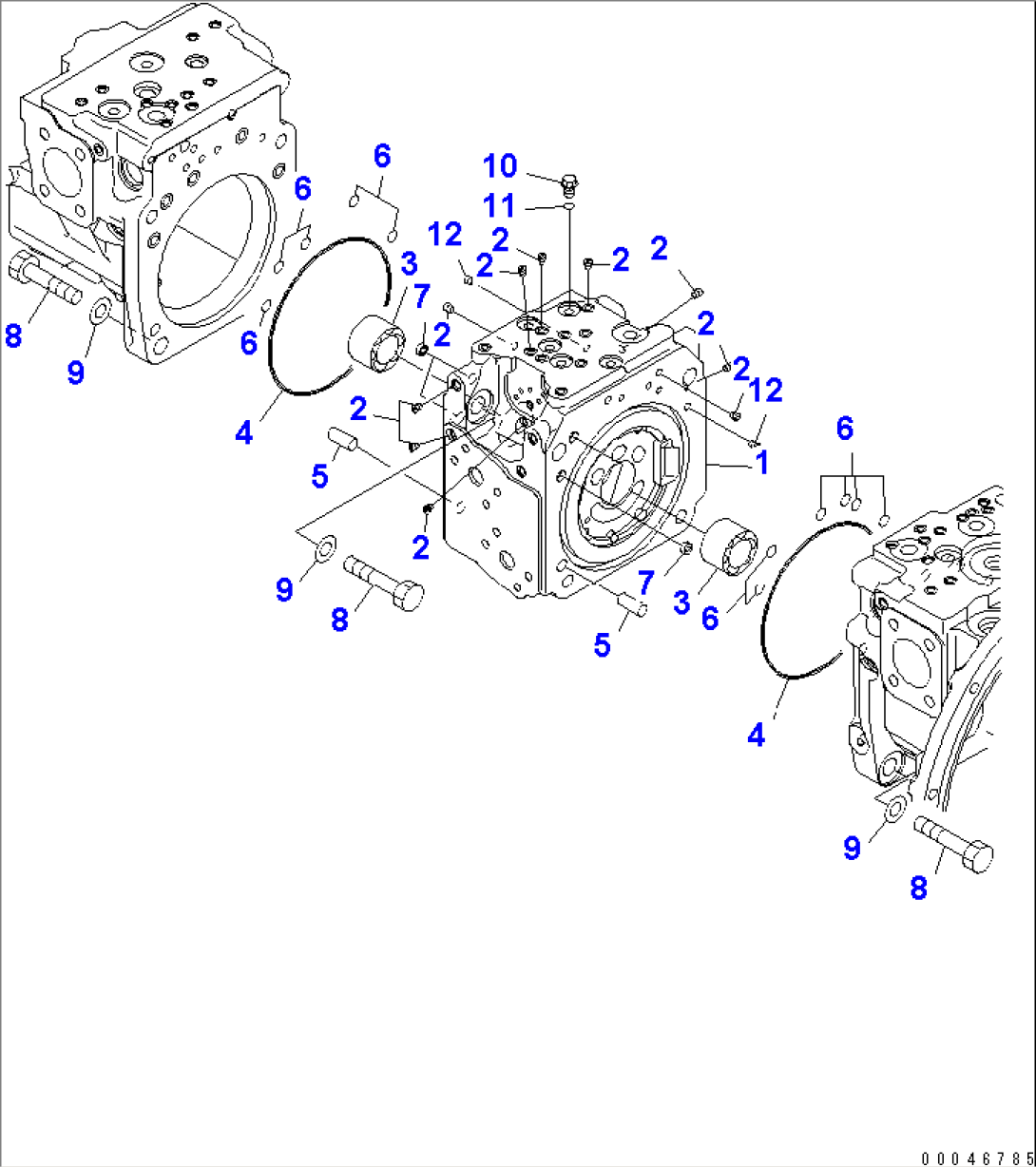

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-11A0. | ||||
| \6\ | PUMP SUB ASS'Y | 20001- | ||
| (\7\708-2L-06450) | CAP ASS'Y,END | 20001- | ||
| 1 | \6\ | CAP,END | 20001- | |
| 2 | \6\ | PLUG | 20001- | |
| 3 | (\7\708-2L-32260) | BEARING | 20001- | |
| 4 | (\7\07000-A5165) | O-RING | 20001- | |
| 5 | (\7\04020-01228) | PIN,DOWEL | 20001- | |
| 6 | (\7\07000-B2012) | O-RING | 20001- | |
| 7 | (\7\708-2L-25480) | FILTER | 20001- | |
| 8 | (\7\01010-61655) | BOLT | 20001- | |
| 9 | (\7\01643-31645) | WASHER | 20001- | |
| 10 | 708-8E-16150 | PLUG | 20001- | |
| 11 | 07002-61023 | O-RING | 20001- | |
| 12 | 708-1L-29340 | ORIFICE | 20001- |
