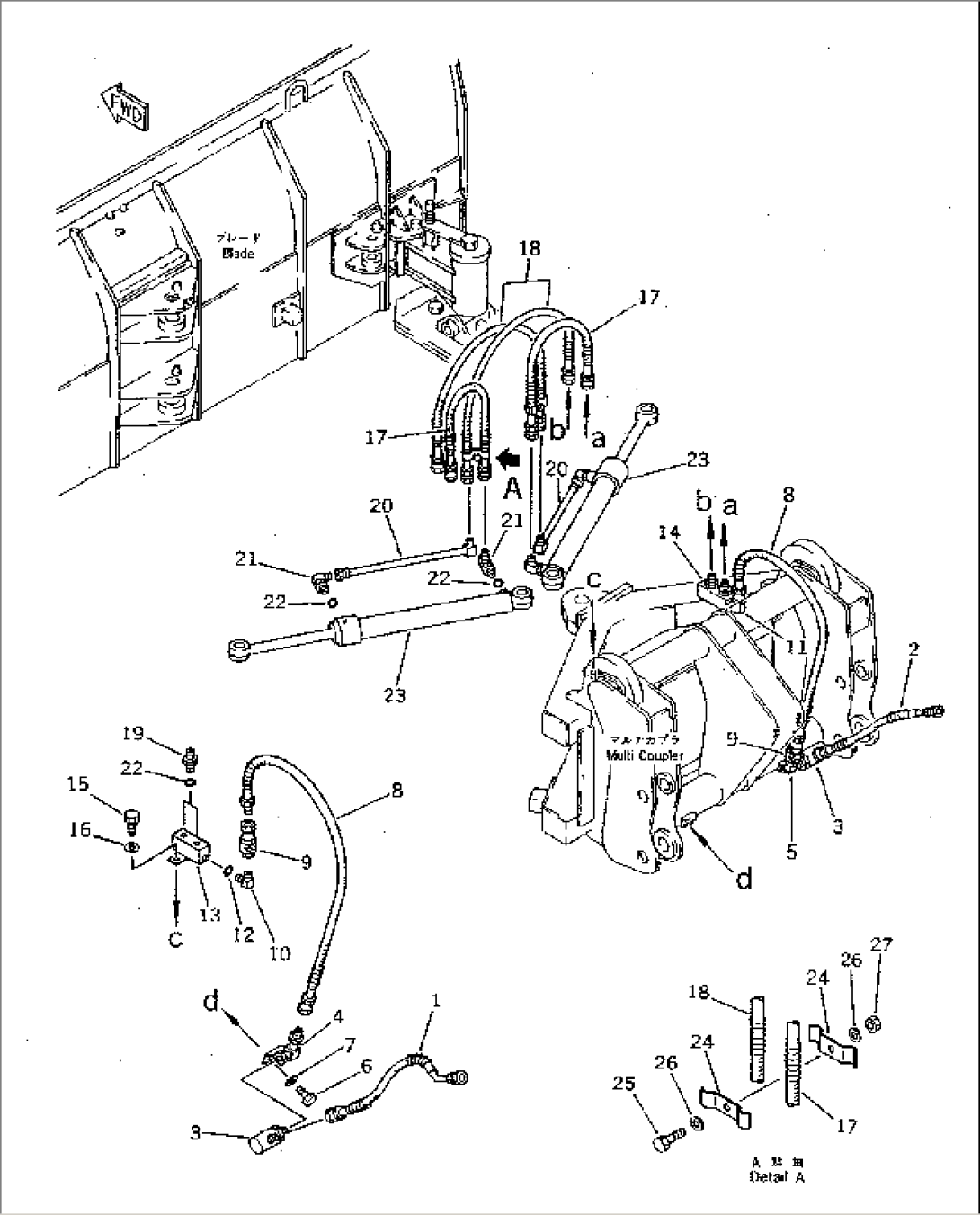

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-914-1271 | HOSE | .- | |
| 415-914-1270 | HOSE | 10001-. | ||
| 2 | 415-914-1261 | HOSE | .- | |
| 415-914-1260 | HOSE | 10001-. | ||
| 3 | 41H-879-1600 | JOINT,SWIVEL | .- | |
| 07129-10300 | JOINT,SWIVEL | 10001-. | ||
| 4 | 415-914-1231 | TUBE,L.H. | .- | |
| 415-914-1230 | TUBE,L.H. | 10001-. | ||
| 5 | 415-914-1241 | TUBE,R.H. | .- | |
| 415-914-1240 | TUBE,R.H. | 10001-. | ||
| 6 | 01010-31020 | BOLT | 10001- | |
| 7 | 01643-31032 | WASHER | 10001- | |
| 8 | 415-914-1250 | HOSE | 10001- | |
| 9 | 417-915-1330 | JOINT ASS'Y | 10001- | |
| 10 | 417-915-1610 | ELBOW | 10001- | |
| 11 | 07235-10315 | ELBOW | 10001- | |
| 12 | 07002-12034 | O-RING | 10001- | |
| 13 | 417-915-1310 | BLOCK,L.H. | 10001- | |
| 14 | 417-915-1320 | BLOCK,R.H. | 10001- | |
| 15 | 01010-31020 | BOLT | 10001- | |
| 16 | 01643-31032 | WASHER | 10001- | |
| 17 | 07123-20308 | HOSE | 10001- | |
| 18 | 07123-20310 | HOSE | 10001- | |
| 19 | 07230-10315 | UNION | 10001- | |
| 20 | 415-904-1331 | TUBE | 10001- | |
| 21 | 07235-10315 | ELBOW | 10001- | |
| 22 | 07002-12034 | O-RING | 10001- | |
| 23 | (707-00-50511) | CYLINDER ASS'Y,ANGLE | (007)- | |
| (\0\707-00-50510) | CYLINDER ASS'Y,ANGLE | 10001-(0006) | ||
| 24 | 112-901-1250 | CLAMP | 10001- | |
| 25 | 01010-31030 | BOLT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- | |
| 27 | 01580-01008 | NUT | 10001- |
