| Item | Part No. | Part Name | Qty | Serial No. |

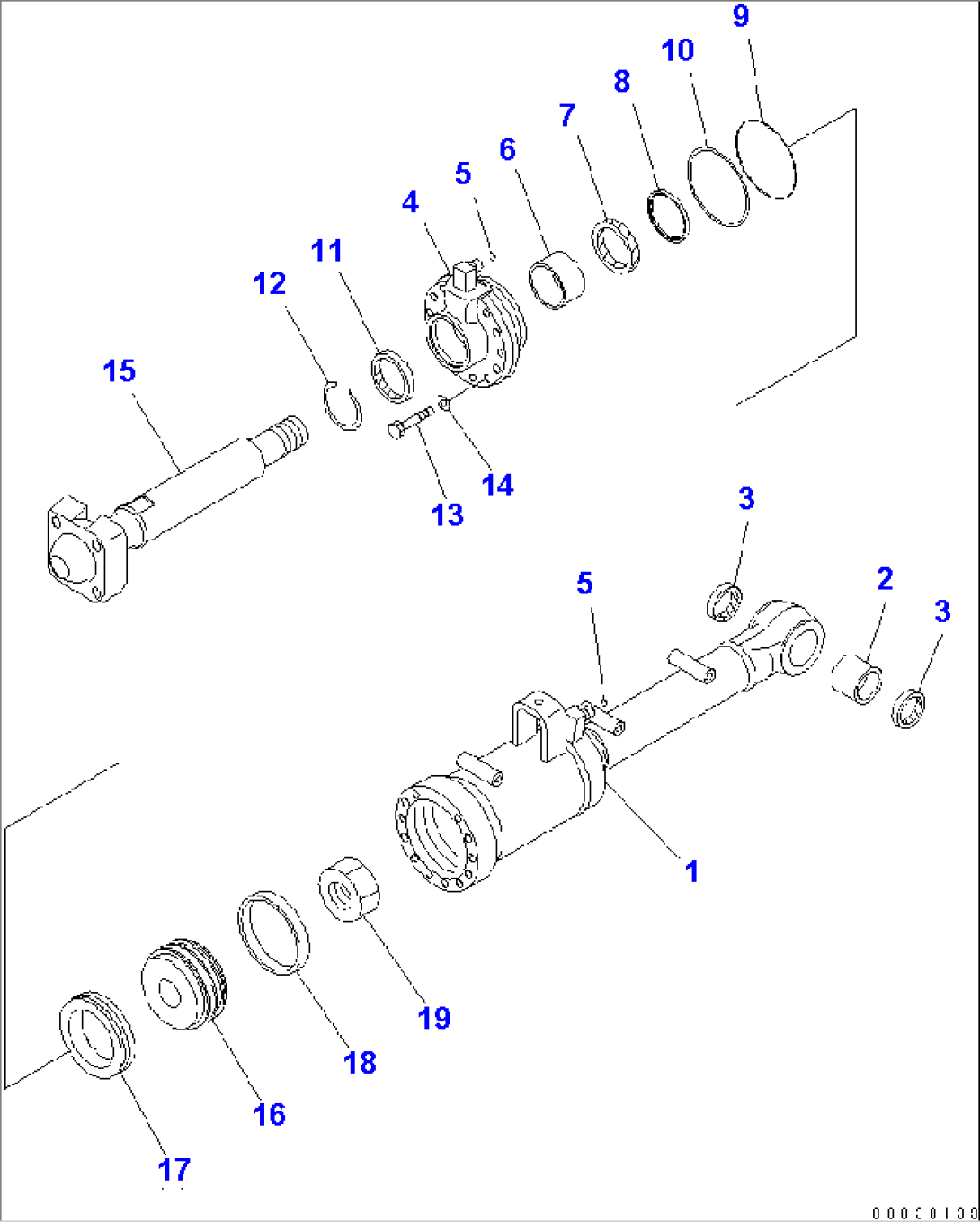

| 707-01-0C301 | TILT CYLINDER ASS'Y,(FOR TILT DOZER) | 65582- | ||
| 1 | 707-13-14630 | CYLINDER | 65582- | |
| 2 | 07143-10505 | BUSHING | 65582- | |
| 3 | 07145-00050 | SEAL,DUST (KIT) | 65582- | |
| 4 | 707-27-14880 | HEAD,CYLINDER | 65582- | |
| 5 | 02896-11009 | O-RING (KIT) | 65582- | |
| 6 | 707-52-90470 | BUSHING | 65582- | |
| 7 | 707-51-70030 | PACKING,ROD (KIT) | 65582- | |
| 8 | 707-51-70640 | RING,BUFFER (KIT) | 65582- | |
| 9 | 07000-12135 | O-RING (KIT) | 65582- | |
| 10 | 07146-02136 | RING,BACK-UP (KIT) | 65582- | |
| 11 | 707-56-70540 | SEAL,DUST (KIT) | 65582- | |
| 12 | 07179-12084 | RING,SNAP | 65582- | |
| 13 | 01010-81455 | BOLT | 65582- | |
| 14 | 01643-31445 | WASHER | 65582- | |
| 15 | 14Y-63-52121 | ROD,PISTON | 65582- | |
| 16 | 707-36-14120 | PISTON | 65582- | |
| 17 | 707-44-14180 | RING,PISTON (KIT) | 65582- | |
| 18 | 07156-01417 | RING,WEAR (KIT) | 65582- | |
| 19 | 707-67-52020 | NUT | 65582- | |
| 707-99-52160 | SERVICE KIT | 65582- |
