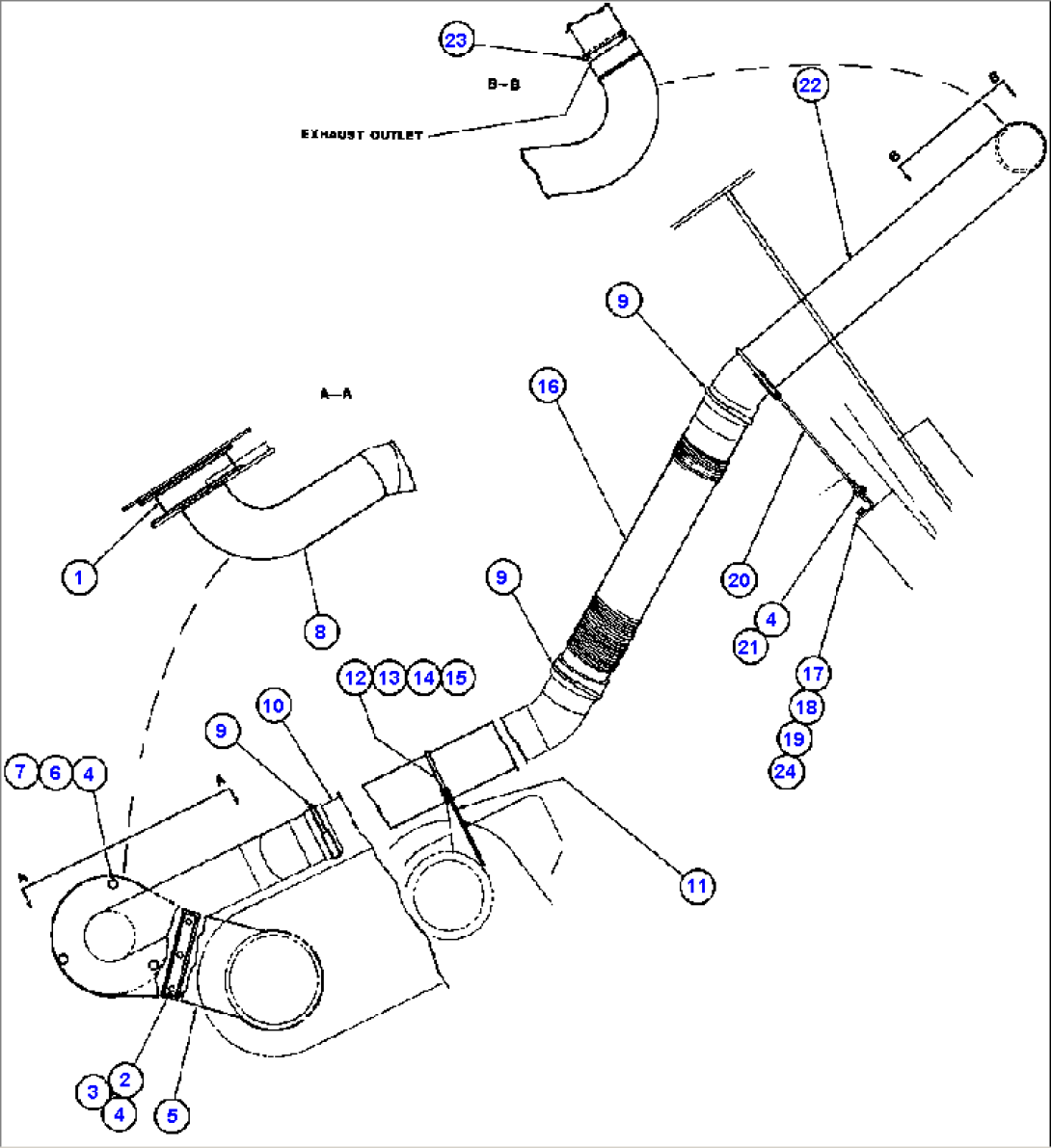

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB5699 | SEAL, PIVOT EXHAUST | ||
| 2 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 3 | WA0360 | FLAT WASHER - 1/2" | ||
| 4 | C1540 | LOCKWASHER - 1/2" | ||
| 5 | TX5540 | BRACKET, EXHAUST PIVOT | ||
| 6 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 7 | C1523 | NUT - 1/2" - 13NC | ||
| 8 | TY6334 | TUBE, EXHAUST | ||
| 9 | TL9052 | CLAMP | ||
| 10 | TY6339 | TUBE, EXHAUST | ||
| 11 | TY8791 | BRACKET | ||
| 12 | TX3429 | U-BOLT | ||
| 13 | C1547 | FLAT WASHER - 3/8" | ||
| 14 | HE5611 | LOCKNUT - 3/8" - 16NC | ||
| 15 | DD1705 | SPRING | ||
| 16 | TY6344 | TUBE | ||
| 17 | TY8789 | BRACKET | ||
| 18 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 19 | C0312 | LOCKWASHER - 3/8" | ||
| 20 | TY6347 | BRACKET | ||
| 21 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 22 | TY6342 | TUBE, EXHAUST | ||
| 23 | PB6092 | CLAMP, V-BAND | ||
| 24 | WA0720 | LAT WASHER - 3/8" |
