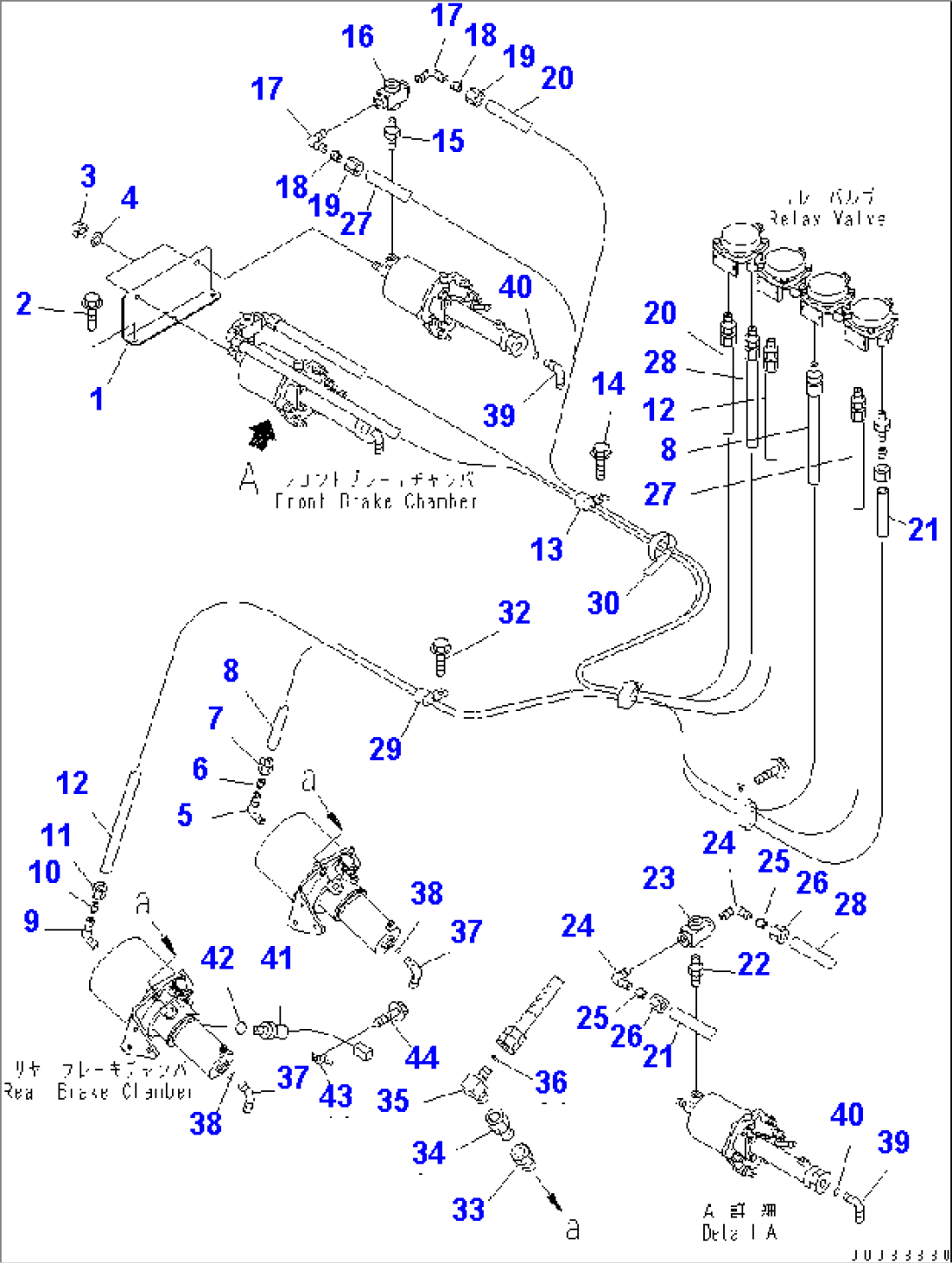

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-35-43261 | BRACKET | 1001- | |
| 2 | 01435-01020 | BOLT | 1001- | |
| 3 | 01582-11008 | NUT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 07834-00817 | ELBOW | 1001- | |
| 6 | 07831-00813 | SLEEVE | 1001- | |
| 7 | 07832-00817 | NUT | 1001- | |
| 8 | 07822-00817 | TUBE | 1001- | |
| 9 | 07834-00817 | ELBOW | 1001- | |
| 10 | 07831-00813 | SLEEVE | 1001- | |
| 11 | 07832-00817 | NUT | 1001- | |
| 12 | 07822-00817 | TUBE | 1001- | |
| 13 | 08036-02514 | CLIP | 1001- | |
| 14 | 01435-01016 | BOLT | 1001- | |
| 15 | 07325-30300 | NIPPLE | 1001- | |
| 16 | 281-34-12300 | VALVE ASS'Y,CHECK | 1001- | |
| 17 | 07834-00817 | ELBOW | 1001- | |
| 18 | 07831-00813 | SLEEVE | 1001- | |
| 19 | 07832-00817 | NUT | 1001- | |
| 20 | 07822-00817 | TUBE | 1001- | |
| 21 | 07822-00819 | TUBE | 1001- | |
| 22 | 07325-30300 | NIPPLE | 1001- | |
| 23 | 281-34-12300 | VALVE ASS'Y,CHECK | 1001- | |
| 24 | 07834-00817 | ELBOW | 1001- | |
| 25 | 07831-00813 | SLEEVE | 1001- | |
| 26 | 07832-00817 | NUT | 1001- | |
| 27 | 07822-00813 | TUBE | 1001- | |
| 28 | 07822-00816 | TUBE | 1001- | |
| 29 | 08036-02514 | CLIP | 1001- | |
| 30 | 08034-00414 | BAND | 1001- | |
| 32 | 01435-01016 | BOLT | 1001- | |
| 33 | 07326-10403 | ADAPTER | 1001- | |
| 34 | 566-88-6B751 | FILTER | 1001- | |
| 35 | 567-35-71340 | ELBOW | 1601- | |
| 36 | 02896-21009 | O-RING | 1601- | |
| 37 | 567-35-71350 | ELBOW | 1601- | |
| 38 | 02896-21009 | O-RING | 1601- | |
| 39 | 56B-61-13760 | ELBOW | 1001- | |
| 40 | 02896-21009 | O-RING | 1001- | |
| 41 | 7861-92-1600 | SENSOR | 1001- | |
| 42 | 07002-12034 | O-RING | 1001- | |
| 43 | 08053-01510 | CLIP | 1001- | |
| 44 | 01435-01016 | BOLT | 1001- |
