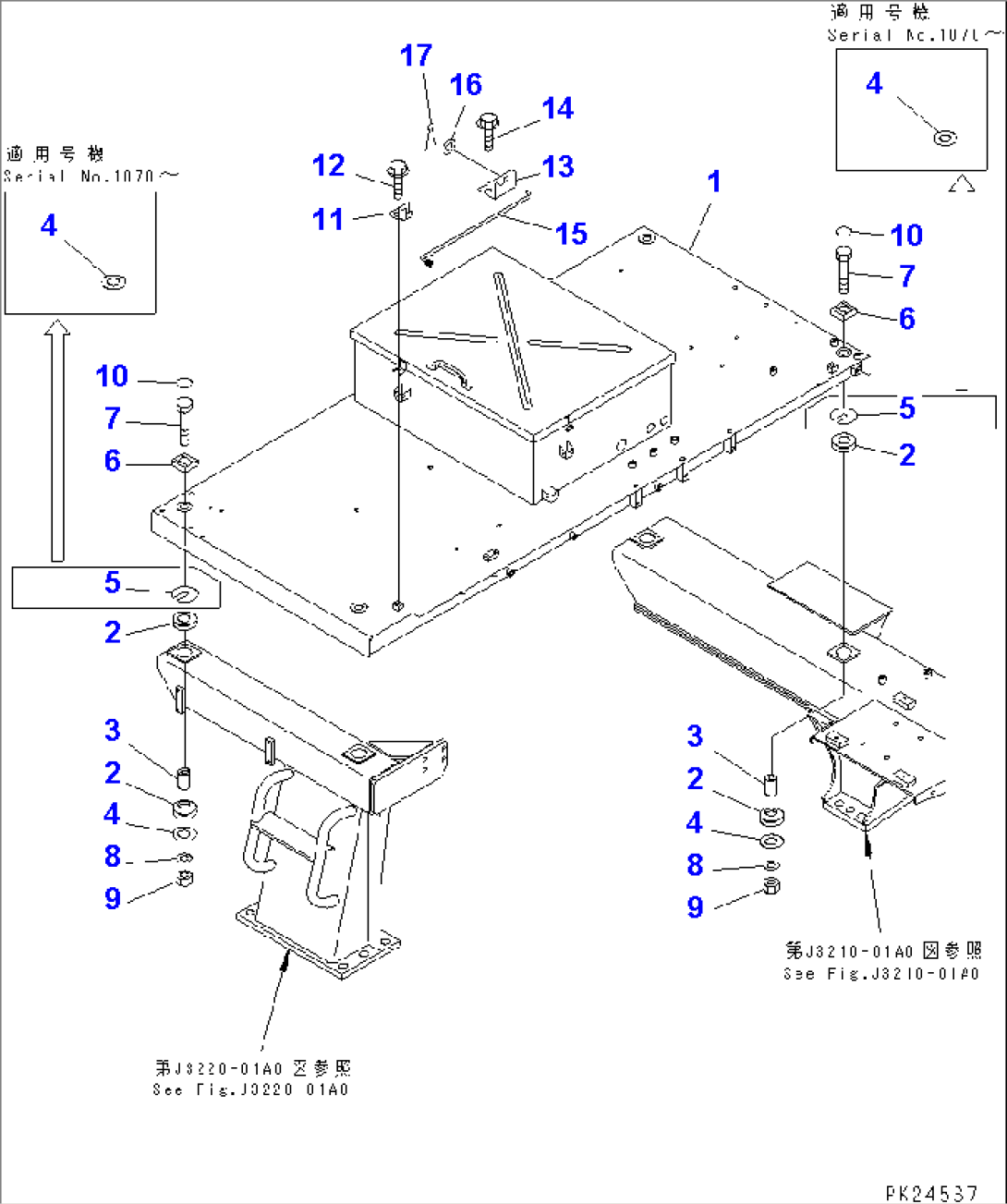

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-54-71341 | PLATFORM,R.H. | 1001-1600 | |
| 567-89-72110 | PLATFORM¤R.H.,(FOR FIRE EXT. OR MAD GUARD) | 1001-1600 | ||
| 567-89-72110 | PLATFORM¤R.H.,(E/S AND FIRE EXT. OR MAD G.) | 1001-1200 | ||
| 2 | 566-54-12212 | CUSHION | 1001-@ | |
| 3 | 566-54-21910 | BUSHING | 1001-@ | |
| 4 | 566-54-21920 | PLATE | 1070-@ | |
| 566-54-21920 | PLATE | 1001-1069 | ||
| 5 | 581-54-22850 | PLATE | 1001-1069 | |
| 6 | 566-54-21931 | PLATE | 1001-@ | |
| 7 | 01011-82015 | BOLT | 1001-1600 | |
| 8 | 01643-32060 | WASHER | 1001-@ | |
| 9 | 01580-12016 | NUT | 1001-@ | |
| 10 | 09415-05016 | CAP | 1201-@ | |
| 09414-01053 | CAP | 1001-1200 | ||
| 11 | 567-54-41261 | BRACKET | 1001-@ | |
| 12 | 01435-01020 | BOLT | 1001-@ | |
| 13 | 567-54-41270 | BRACKET | 1001-@ | |
| 14 | 01435-00820 | BOLT | 1001-@ | |
| 15 | 567-54-41250 | ROD | 1001-@ | |
| 16 | 01643-31032 | WASHER | 1001-@ | |
| 17 | 04050-13020 | PIN,COTTER | 1001-@ |
