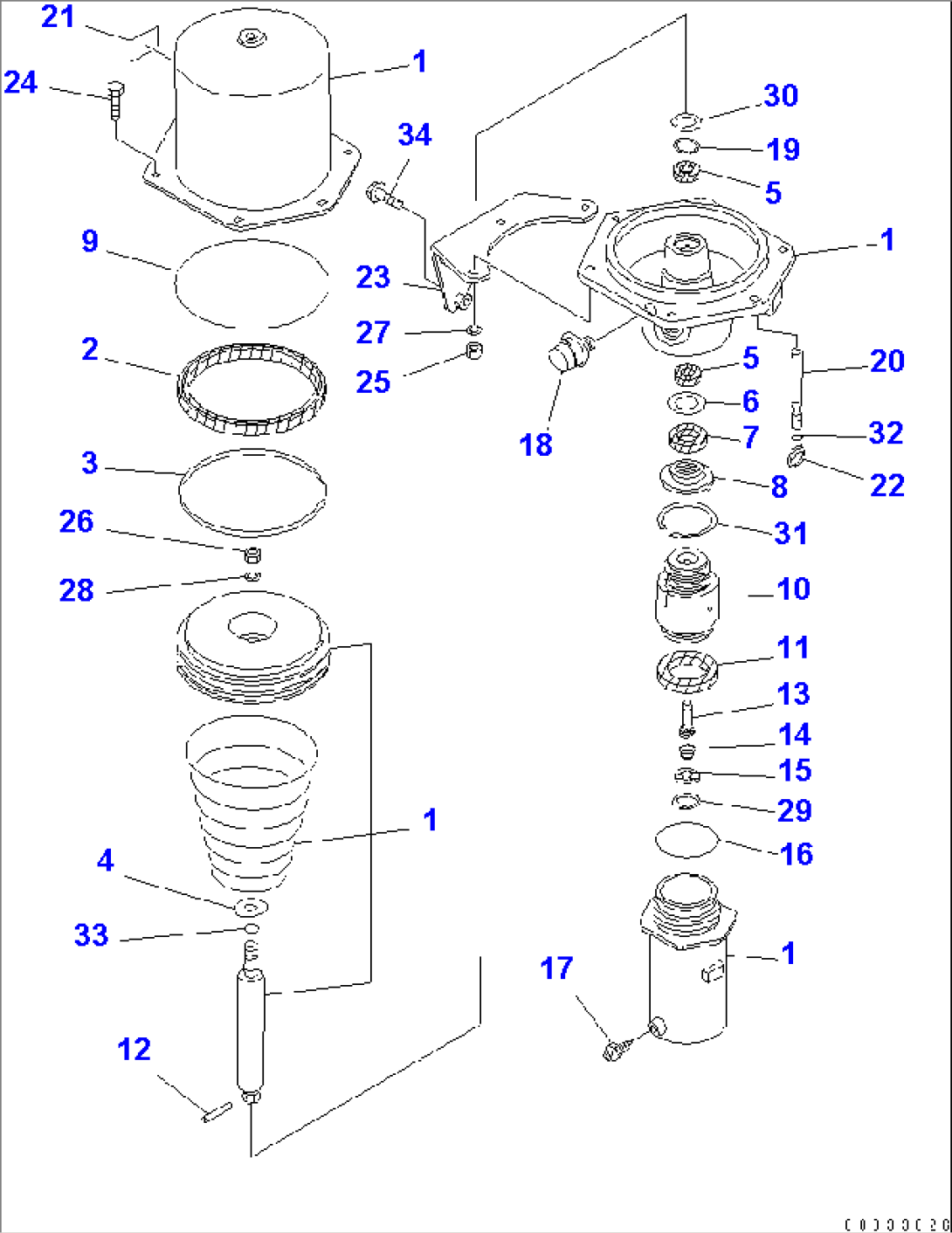

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-35-15402 | BRAKE CHAMBER ASS'Y | 1001- | |
| 2 | 424-35-15410 | PACKING (K24) | 1001- | |
| 3 | 424-35-15420 | RING (K24) | 1001- | |
| 4 | 424-35-15430 | WASHER | 1001- | |
| 5 | 424-35-15440 | PACKING (K24) | 1001- | |
| 6 | 424-35-15450 | SEAT | 1001- | |
| 7 | 424-35-15460 | PACKING (K24) | 1001- | |
| 8 | 424-35-15470 | RING | 1001- | |
| 9 | 424-35-15480 | O-RING (K24) | 1001- | |
| 10 | 424-35-15490 | PISTON | 1001- | |
| 11 | 424-35-15510 | PACKING (K24) | 1001- | |
| 12 | 424-35-15520 | PIN | 1001- | |
| 13 | 424-35-15530 | VALVE (K24) | 1001- | |
| 14 | 424-35-15540 | SPRING (K24) | 1001- | |
| 15 | 424-35-15550 | SEAT | 1001- | |
| 16 | 424-35-15561 | O-RING (K24) | 1001- | |
| 17 | 424-35-15570 | BLEEDER | 1001- | |
| 18 | 424-35-15580 | BREATHER | 1001- | |
| 19 | 424-35-15590 | RING (K24) | 1001- | |
| 20 | 424-35-15611 | ROD | 1001- | |
| 21 | 424-35-15620 | PLATE, CAUTION | 1001- | |
| 22 | 424-35-15630 | RING | 1001- | |
| 23 | 424-35-15920 | BRACKET | 1001- | |
| 24 | 01010-81035 | BOLT | 1001- | |
| 25 | 01580-11008 | NUT | 1001- | |
| 26 | 01583-11610 | NUT | 1001- | |
| 27 | 01602-21030 | WASHER,SPRING | 1001- | |
| 28 | 01602-21648 | WASHER,SPRING | 1001- | |
| 29 | 04065-02612 | RING,SNAP | 1001- | |
| 30 | 04065-03515 | RING,SNAP | 1001- | |
| 31 | 04065-06220 | RING,SNAP | 1001- | |
| 32 | 07000-11007 | O-RING (K24) | 1001- | |
| 33 | 07000-12012 | O-RING (K24) | 1001- | |
| 34 | 01435-01230 | BOLT | 1001- |
