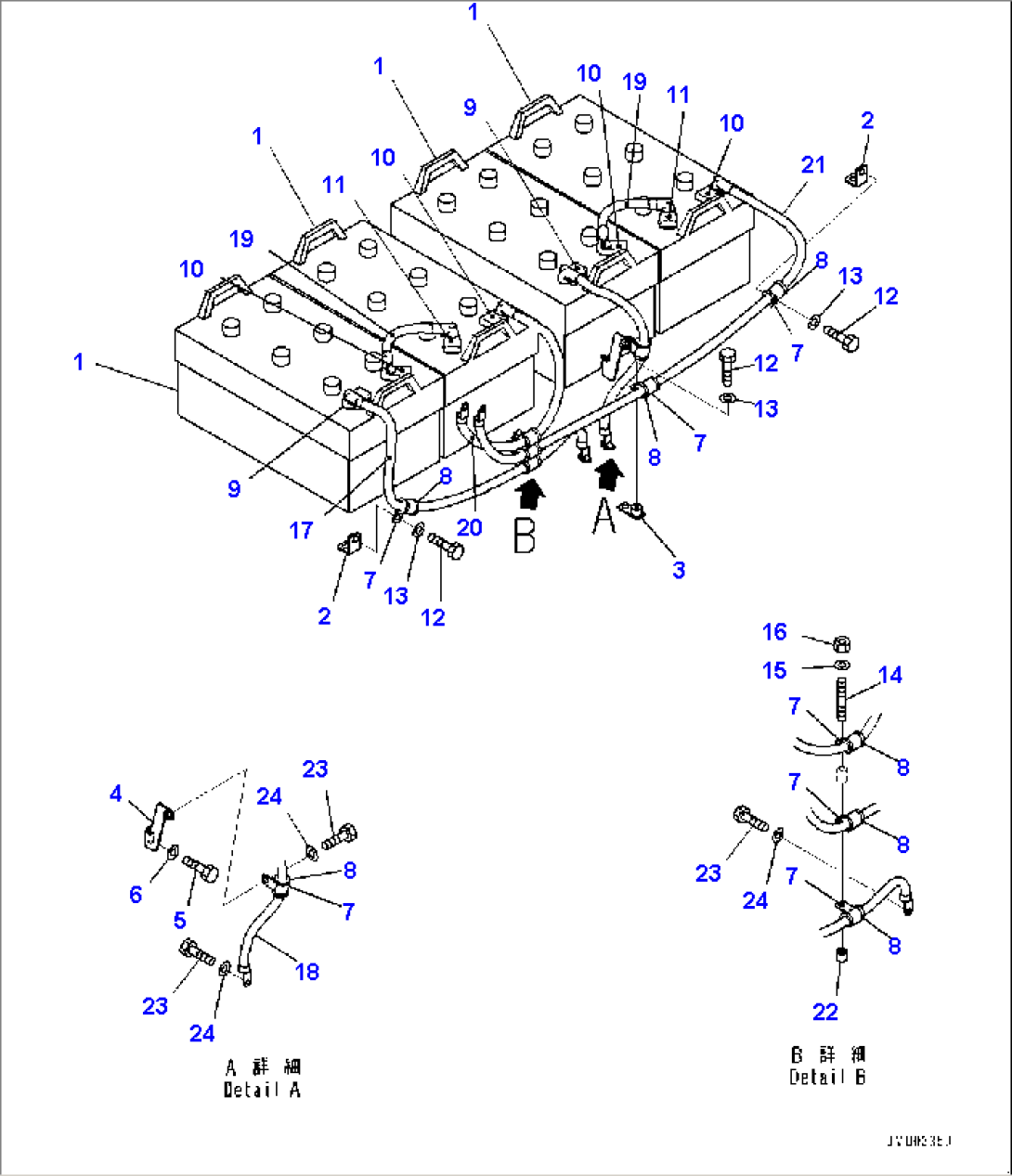

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08000-02221 | Battery, Wet, C200 | 80229- | |
| 1 | 08000-00020 | Terminal, (+) | 80229- | |
| 08000-00021 | Terminal, (-) | 80229- | ||
| 2 | 569-07-81450 | Bracket | 80229- | |
| 3 | 426-06-11570 | Bracket | 80229- | |
| 4 | 562-06-31460 | Bracket | 80229- | |
| 5 | 01010-80820 | Bolt | 80229- | |
| 6 | 01643-30823 | Washer | 80229- | |
| 7 | 08036-02514 | Clip | 80229- | |
| 8 | 566-06-41290 | Insulator | 80229- | |
| 9 | 424-09-12530 | Boot | 80229- | |
| 10 | 56B-06-11220 | Cap | 80229- | |
| 11 | 56B-06-11210 | Cap | 80229- | |
| 12 | 01010-81016 | Bolt | 80229- | |
| 13 | 01643-31032 | Washer | 80229- | |
| 14 | 01124-51080 | Stud | 80229- | |
| 15 | 01643-31032 | Washer | 80229- | |
| 16 | 01580-11008 | Nut | 80229- | |
| 17 | 08028-55100 | Cable, Ground | 80229- | |
| 18 | 08028-55055 | Cable, Ground | 80229- | |
| 19 | 08028-75025 | Cable, Ground | 80229- | |
| 20 | 08028-76065 | Cable, Ground | 80229- | |
| 21 | 08028-76150 | Cable, Ground | 80229- | |
| 22 | 175-79-83760 | Spacer | 80229- | |
| 23 | 01010-81020 | Bolt | 80229- | |
| 24 | 01643-31032 | Washer | 80229- |
