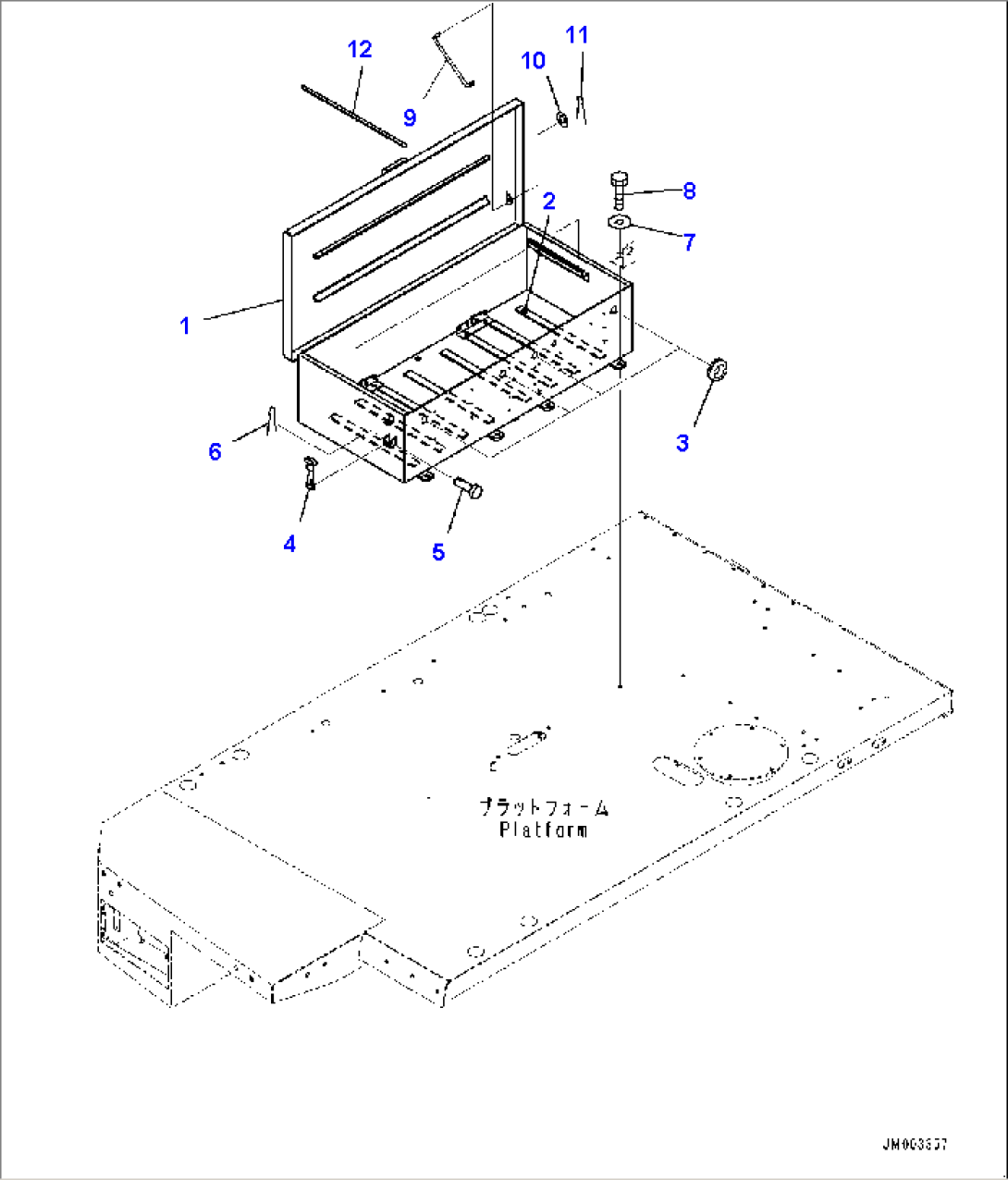

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 562-06-31410 | Battery Case | 80138-80228 | |
| 566-54-41161 | Hinge | 80138-80228 | ||
| 2 | 08007-23549 | Cushion, Battery | 80138-80228 | |
| 3 | 08037-02512 | Grommet | 80138-80228 | |
| 4 | 09450-00000 | Catcher | 80138-80228 | |
| 5 | 09450-00002 | Pin | 80138-80228 | |
| 6 | 04050-11610 | Pin, Cotter | 80138-80228 | |
| 7 | 22B-46-24380 | Washer | 80138-80228 | |
| 8 | 01010-81240 | Bolt | 80138-80228 | |
| 9 | 569-54-61480 | Rod | 80138-80228 | |
| 10 | 01643-31032 | Washer | 80138-80228 | |
| 11 | 04050-13020 | Pin, Cotter | 80138-80228 | |
| 12 | 562-06-31420 | Sheet | 80138-80228 |
