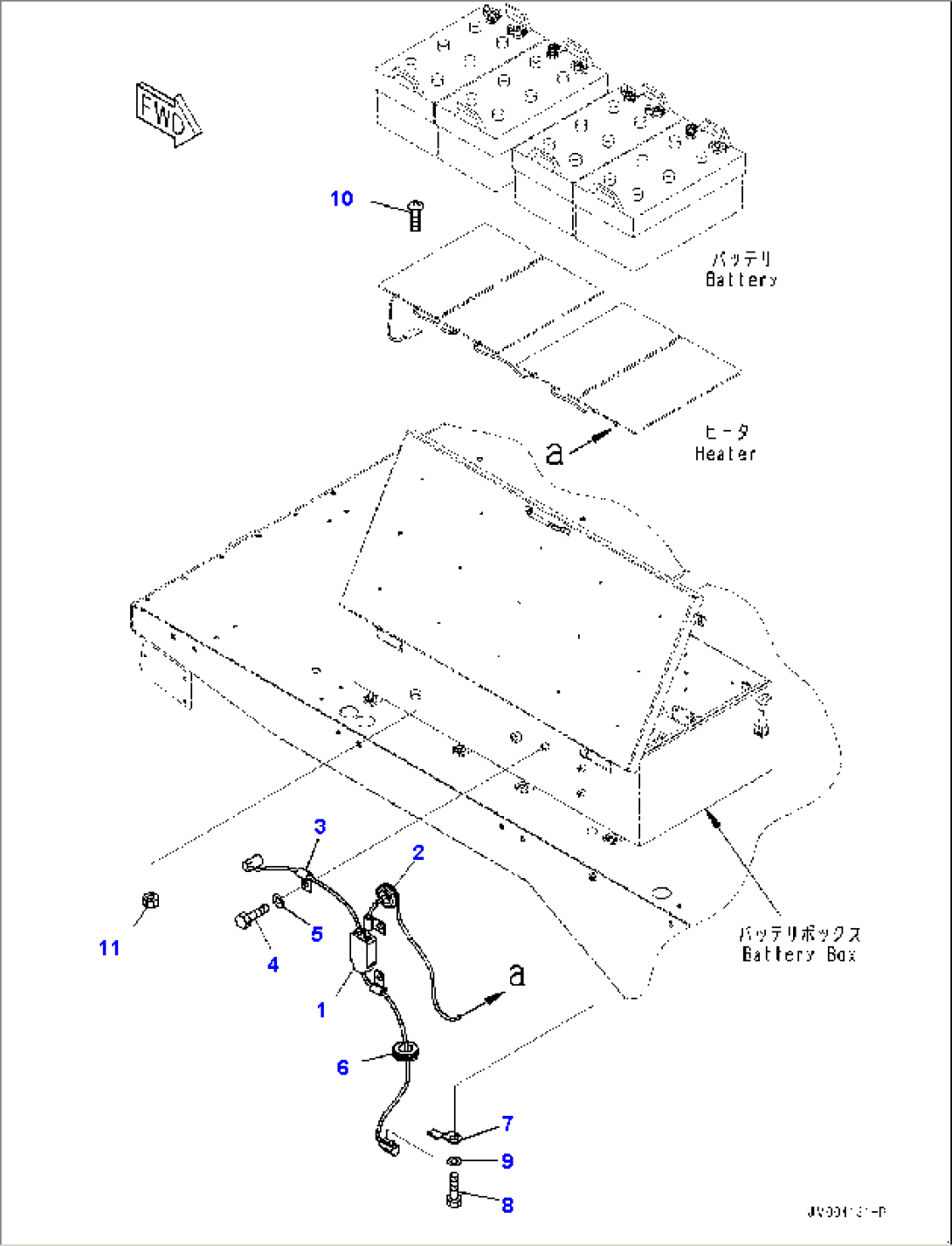

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AHPC1658 | Thermostat | 80229- | |
| 2 | 08037-02512 | Grommet | 80229- | |
| 3 | 04434-50810 | Clip | 80229- | |
| 4 | 01010-81020 | Bolt | 80229- | |
| 5 | 01643-31032 | Washer | 80229- | |
| 6 | AHSL6447 | Grommet | 80229- | |
| 7 | 08193-21012 | Clip | 80229- | |
| 8 | 01010-81020 | Bolt | 80229- | |
| 9 | 01643-31032 | Washer | 80229- | |
| 10 | AH160046 | Screw | 80229- | |
| 11 | AHWA3367 | Nut Assembly | 80229- |
