| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-11221 | Holder | 80229- | |
| 2 | 281-06-14170 | Clamp | 80229- | |
| 3 | 281-06-14161 | Rod | 80229- | |
| 4 | 565-56-12440 | Rod | 80229- | |
| 5 | 01643-31032 | Washer | 80229- | |
| 6 | 01580-11008 | Nut | 80229- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd1500 7 s/n 80138 up (chassis only)
- Platform and its related parts
- Platform r.h., battery mounting (#80229 )
Поиск по каталогу

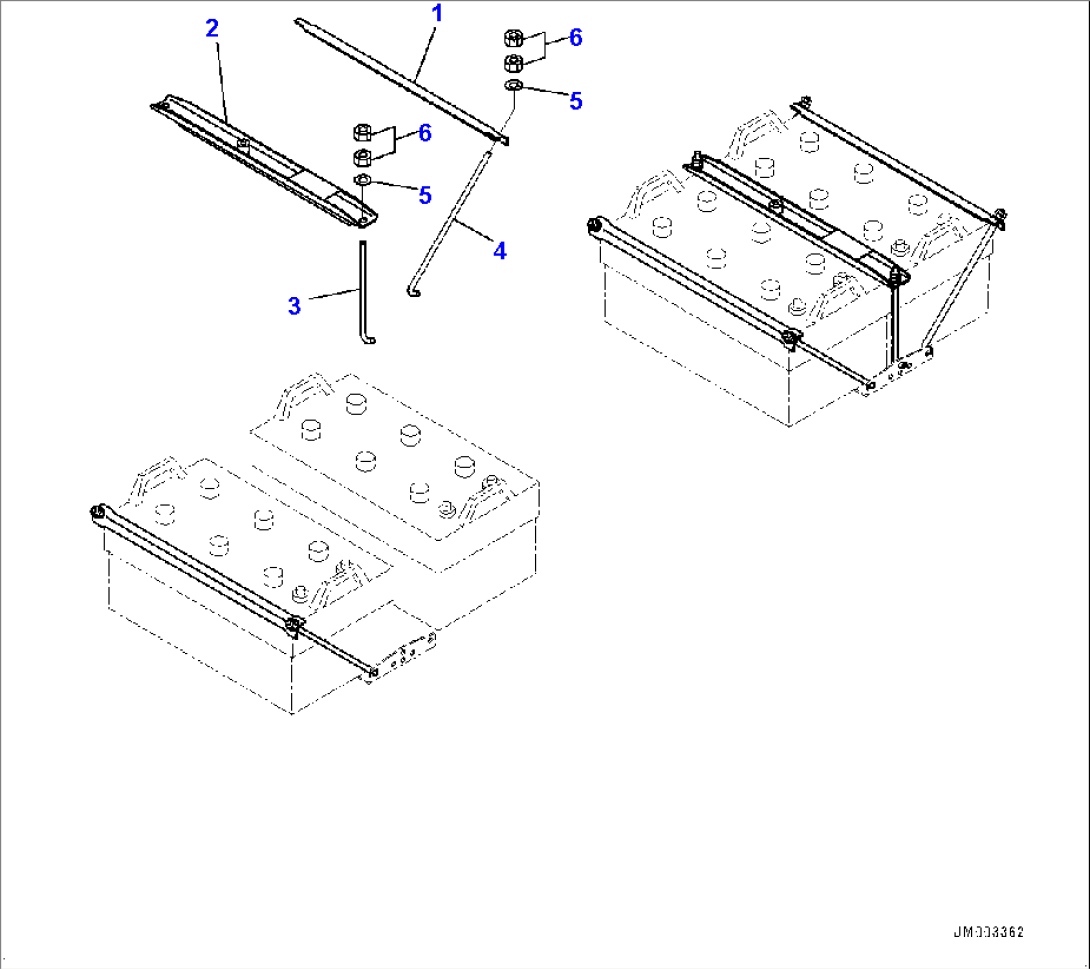

Platform R.H., Battery Mounting (#80229-)
