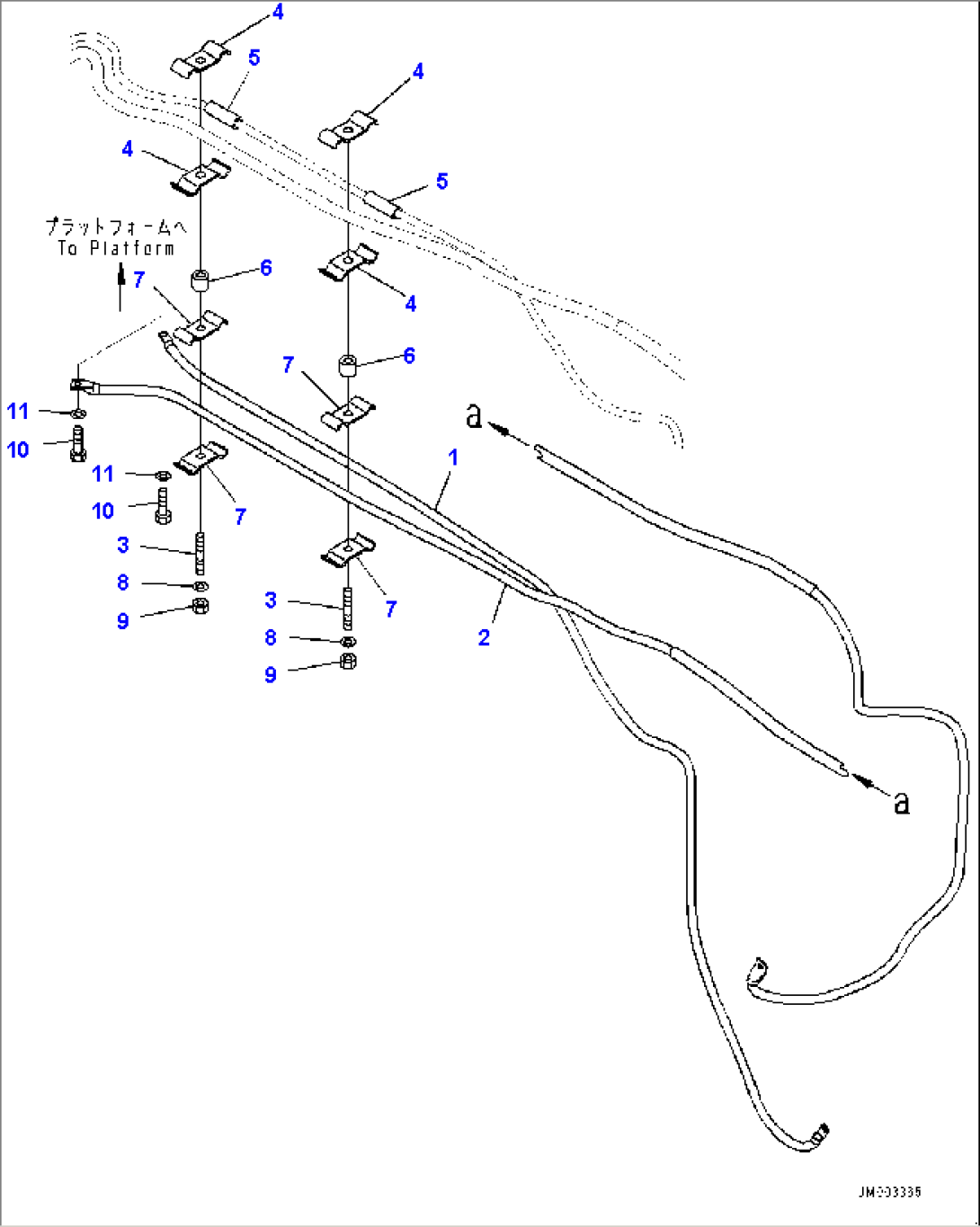

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AHCH3303 | Wire | 80138-80228 | |
| 2 | AHCH3304 | Wire | 80138-80228 | |
| 3 | AHCH3403 | Cable | 80138-80228 | |
| 4 | AHCH3421 | Cable | 80138-80228 | |
| 5 | AHCH3420 | Cable | 80138-80228 | |
| 6 | AHCH3419 | Cable | 80138-80228 | |
| 7 | AHCH3804 | Cable | 80138-80228 | |
| 8 | AHCH4133 | Cable | 80138-80228 | |
| 9 | 08028-76375 | Cable, Ground | 80138-80228 | |
| 10 | AHCH5201 | Cable | 80138-80228 | |
| 11 | 04434-53412 | Clip | 80138-80228 | |
| 12 | 07095-30627 | Cushion | 80138-80228 | |
| 13 | 08036-02514 | Clip | 80138-80228 | |
| 14 | 566-06-41290 | Insulator | 80138-80228 | |
| 15 | 415-S62-2380 | Collar | 80138-80228 | |
| 16 | 01010-81095 | Bolt | 80138-80228 | |
| 17 | 01643-31032 | Washer | 80138-80228 | |
| 18 | 01010-80620 | Bolt | 80138-80228 | |
| 19 | 01643-30623 | Washer | 80138-80228 |
