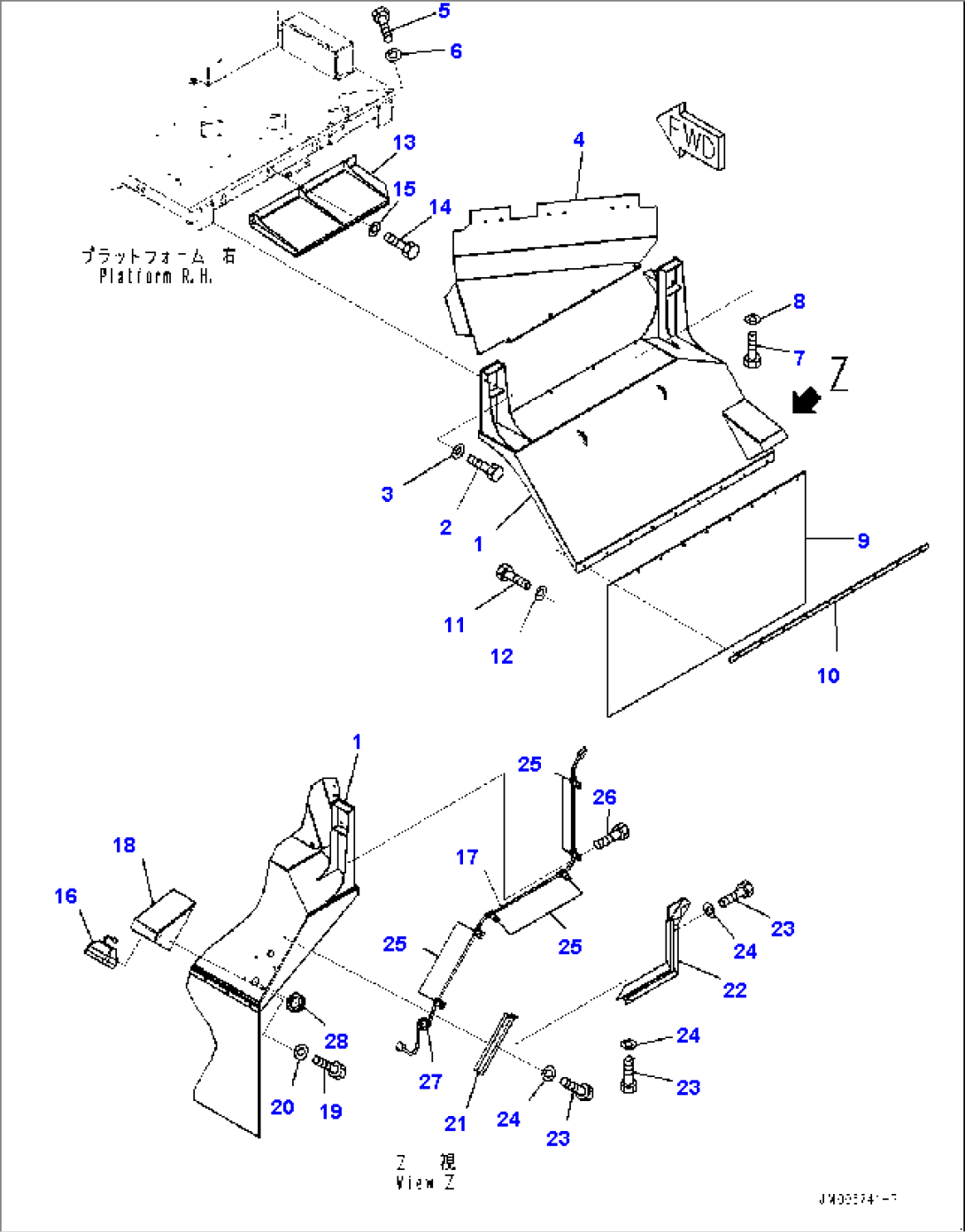

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 562-54-33911 | Fender | 80228- | |
| 2 | 01010-81225 | Bolt | 80229- | |
| 3 | 01643-31232 | Washer | 80229- | |
| 4 | 562-54-33920 | Cover | 80228- | |
| 5 | 01010-81025 | Bolt | 80229- | |
| 6 | 01643-31032 | Washer | 80229- | |
| 7 | 01010-81020 | Bolt | 80229- | |
| 8 | 01643-31032 | Washer | 80229- | |
| 9 | 562-54-33930 | Guard | 80229- | |
| 10 | 562-54-33940 | Plate | 80228- | |
| 11 | 01010-81230 | Bolt | 80229- | |
| 12 | 01643-31232 | Washer | 80229- | |
| 13 | 562-54-33981 | Cover | 80235- | |
| 13 | 562-54-33980 | Cover | 80228-80234 | |
| 14 | 01010-81220 | Bolt | 80229- | |
| 15 | 01643-31232 | Washer | 80229- | |
| 16 | 421-06-23310 | Lamp Assembly | 80229- | |
| 16 | 421-06-23340 | Lens | 80229- | |
| 16 | 421-06-23330 | Bulb, 70watt | 80229- | |
| 17 | 562-06-31911 | Wiring Harness | 80229- | |
| 18 | 562-54-33950 | Cover | 80228- | |
| 19 | 01010-81225 | Bolt | 80229- | |
| 20 | 01643-31232 | Washer | 80229- | |
| 21 | 562-54-33960 | Cover | 80228- | |
| 22 | 562-54-33970 | Cover | 80228- | |
| 23 | 01010-81020 | Bolt | 80229- | |
| 24 | 01643-31032 | Washer | 80229- | |
| 25 | 04434-51010 | Clip | 80229- | |
| 26 | 01010-81016 | Bolt | 80229- | |
| 27 | 09415-02512 | Cap | 80229- | |
| 28 | 09415-03614 | Cap | 80229- |
