| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AHEH4125 | Mudguard | 80229- | |
| 2 | 562-54-32750 | Plate | 80229- | |
| 3 | 01010-81230 | Bolt | 80229- | |
| 4 | 01643-31232 | Washer | 80229- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd1500 7 s/n 80138 up ( 40°c spec.) (chassis only)
- Platform and its related parts
- Platform r.h., mudguard (#80229 )
Поиск по каталогу

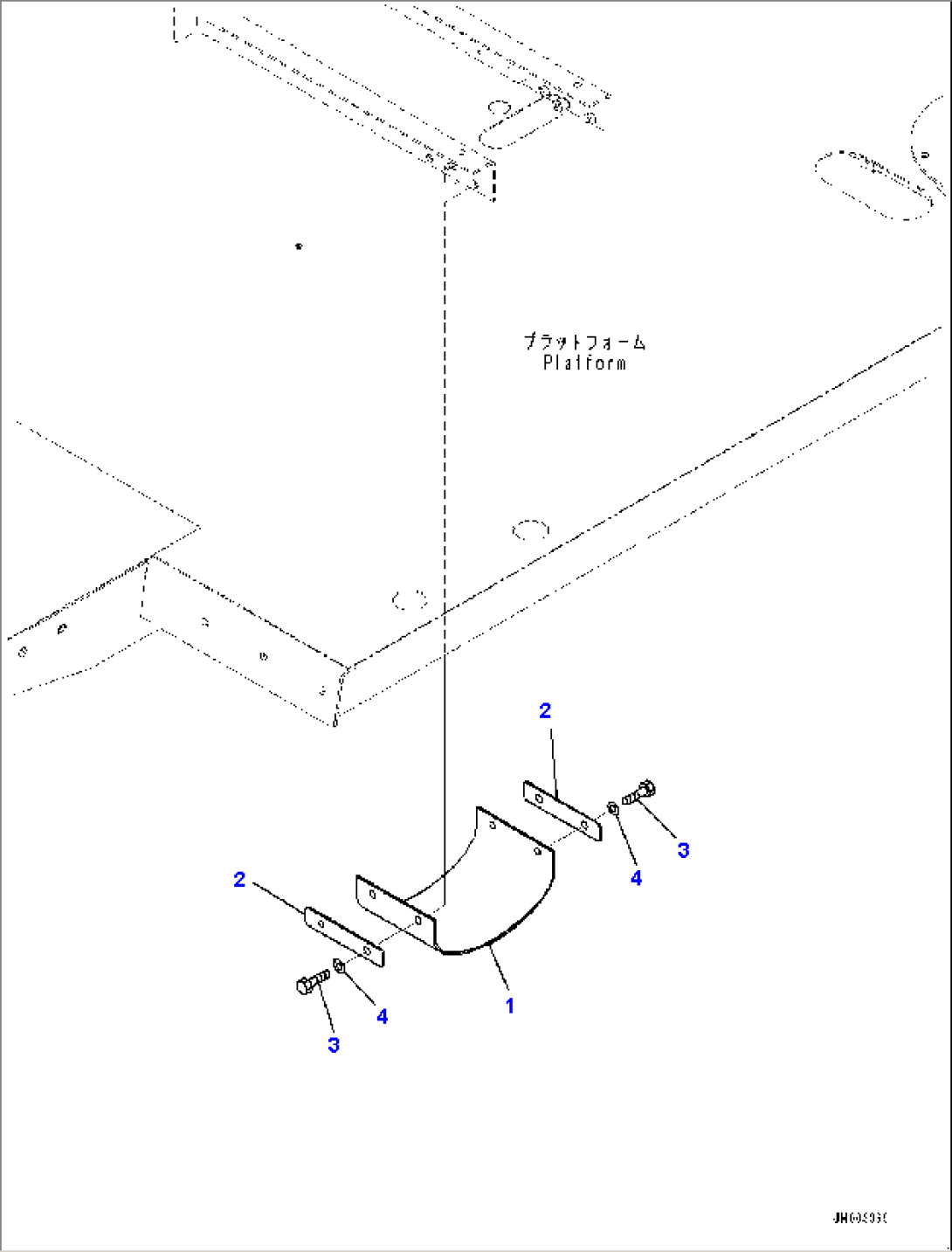

Platform R.H., Mudguard (#80229-)
