| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (6222-82-7100) | AIR CLEANER ASS'Y | 3001- | |
| 2 | 566-02-42200 | CAP | 3001- | |
| 3 | 561-02-12420 | CAP | 3001- | |
| 4 | 431-02-11420 | HOSE | 3001- | |
| 5 | 07289-00145 | CLAMP | 3001- | |
| 6 | 6150-12-5840 | BAND | 3001- | |
| 7 | 6643-11-4641 | BOLT | 3001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd405 7 s/n 3001 7593
- Platform and related parts
- Platform sub ass'y (air cleaner)(#3001 )
Поиск по каталогу

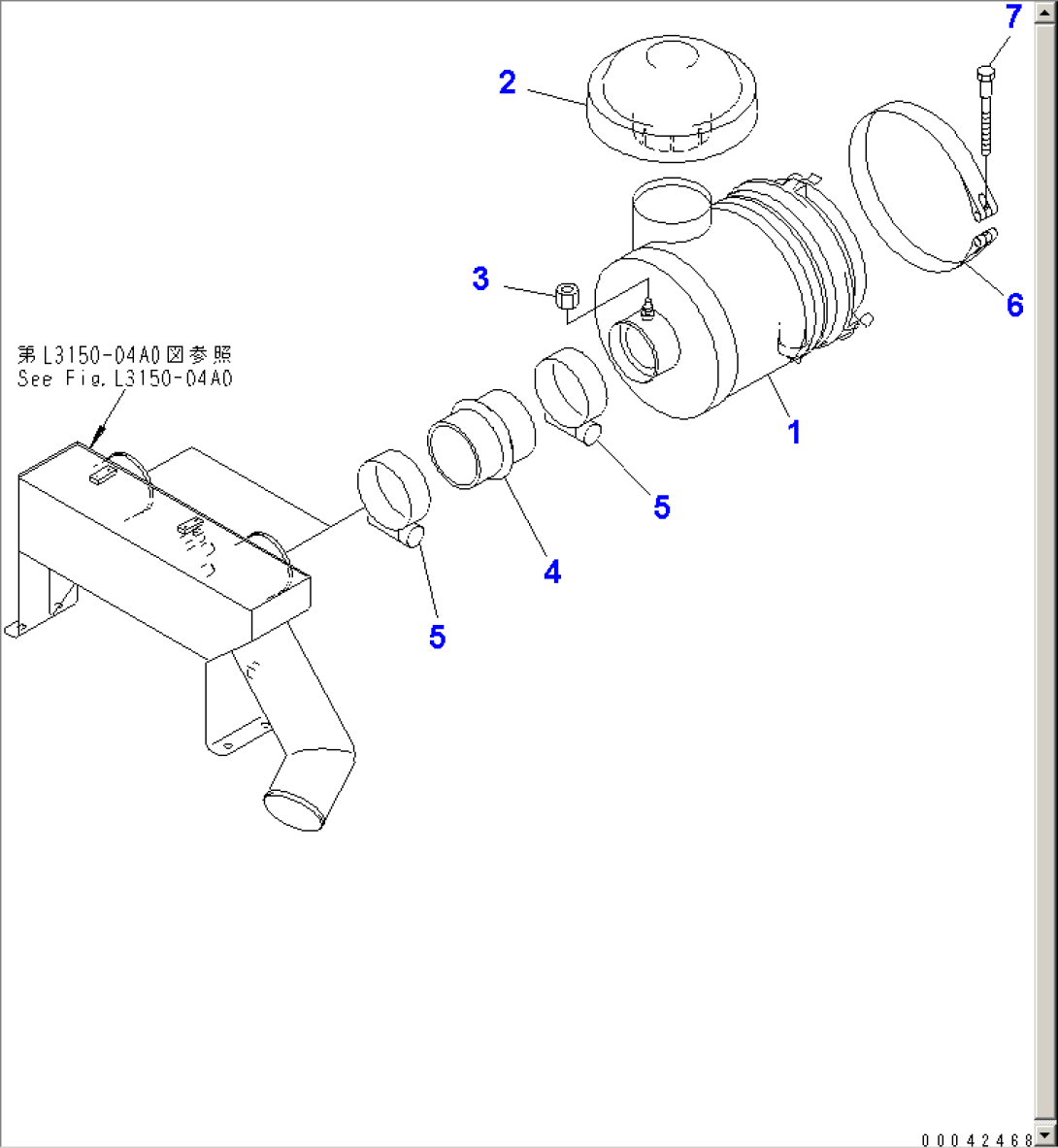

PLATFORM SUB ASS'Y (AIR CLEANER)(#3001-)
