| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07822-00820 | TUBE | 7146- | |
| 2 | 569-61-83310 | JOINT | 7146- | |
| 3 | 01435-01020 | BOLT | 7146- | |
| 4 | 07030-00252 | BREATHER | 7146- | |
| 5 | 07326-10302 | ADAPTER | 7146- | |
| 6 | 07834-00817 | ELBOW | 7146- | |
| 7 | 07831-00813 | SLEEVE | 7146- | |
| 8 | 07832-00817 | NUT | 7146- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd605 7 s/n 7001 up
- Platform and related parts
- Platform sub ass'y (breather line)(#7146 )
Поиск по каталогу

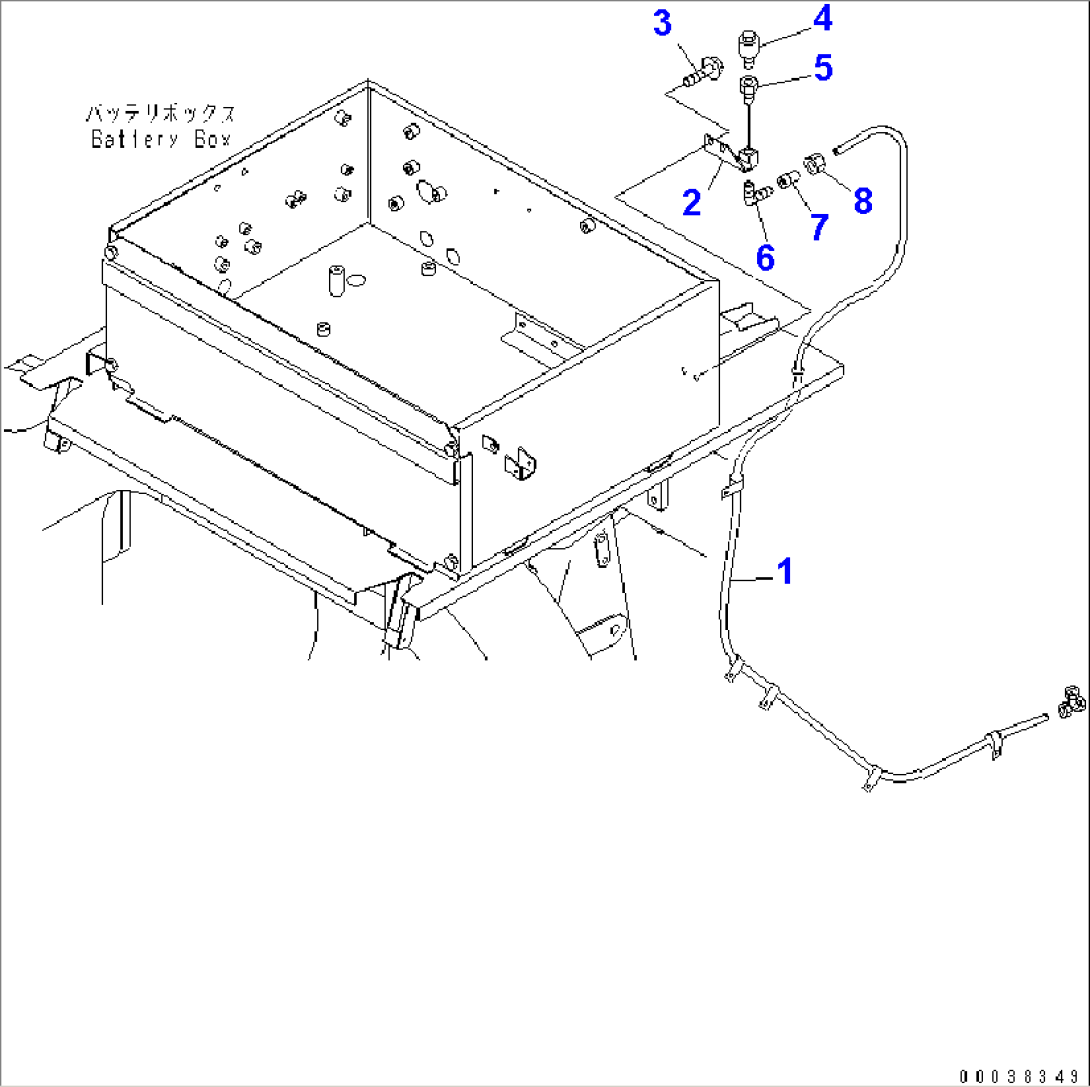

PLATFORM SUB ASS'Y (BREATHER LINE)(#7146-)
