| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-95-84810 | TANK | 7146- | |
| 2 | 569-03-61940 | TUBE | 7146- | |
| 3 | 208-04-19130 | ELBOW | 7146- | |
| 4 | 208-04-19160 | BALL | 7146- | |
| 5 | 01010-81225 | BOLT | 7146- | |
| 6 | 01643-31232 | WASHER | 7146- | |
| 7 | 07093-20000 | CAP | 7146- | |
| 7 | 07093-00001 | GASKET | 7146- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd605 7 s/n 7001 up
- Platform and related parts
- Platform sub ass'y (coolant reserve tank) (auto lubrication) (with vandalism protection)(#7146 )
Поиск по каталогу

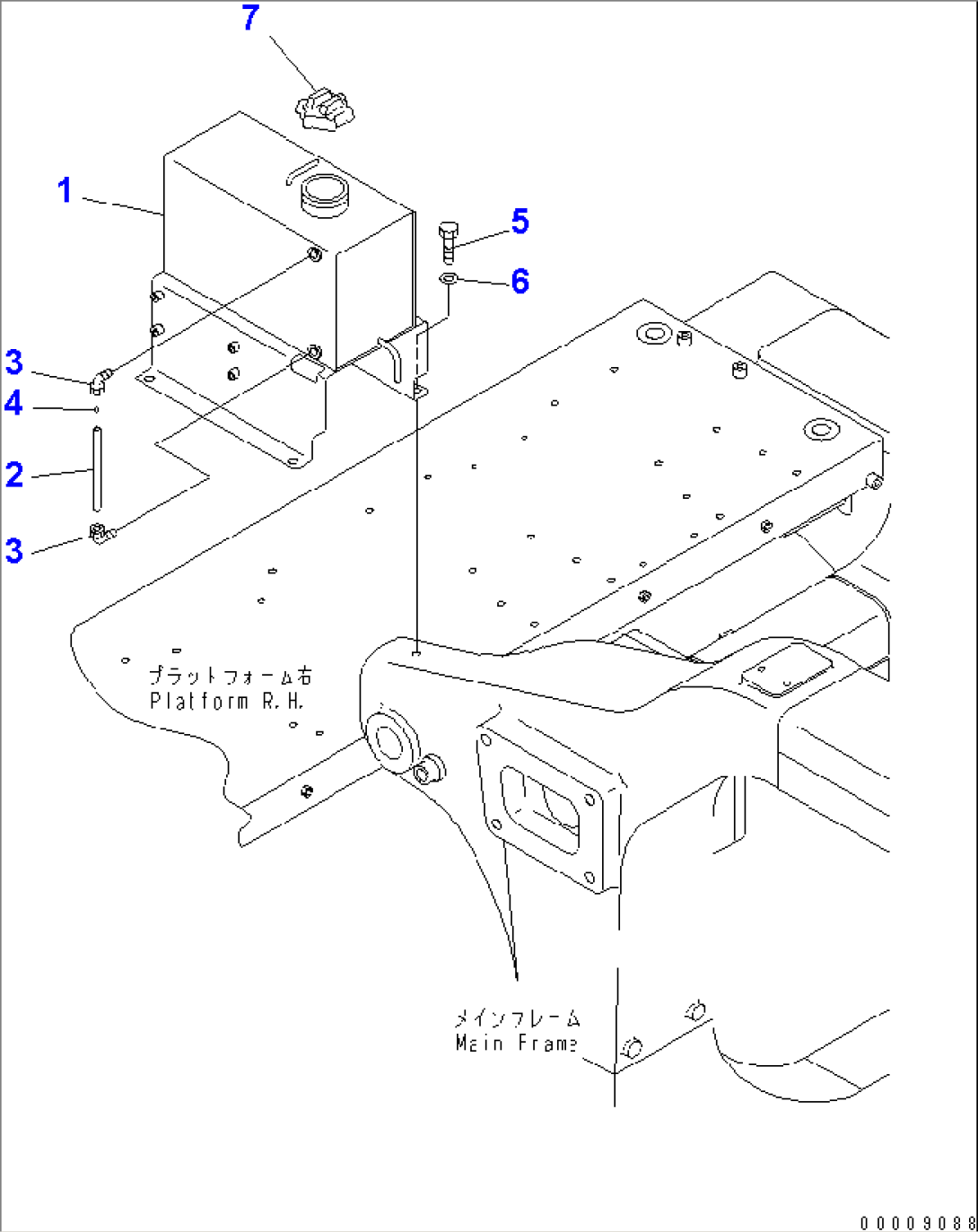

PLATFORM SUB ASS'Y (COOLANT RESERVE TANK) (AUTO LUBRICATION) (WITH VANDALISM PROTECTION)(#7146-)
