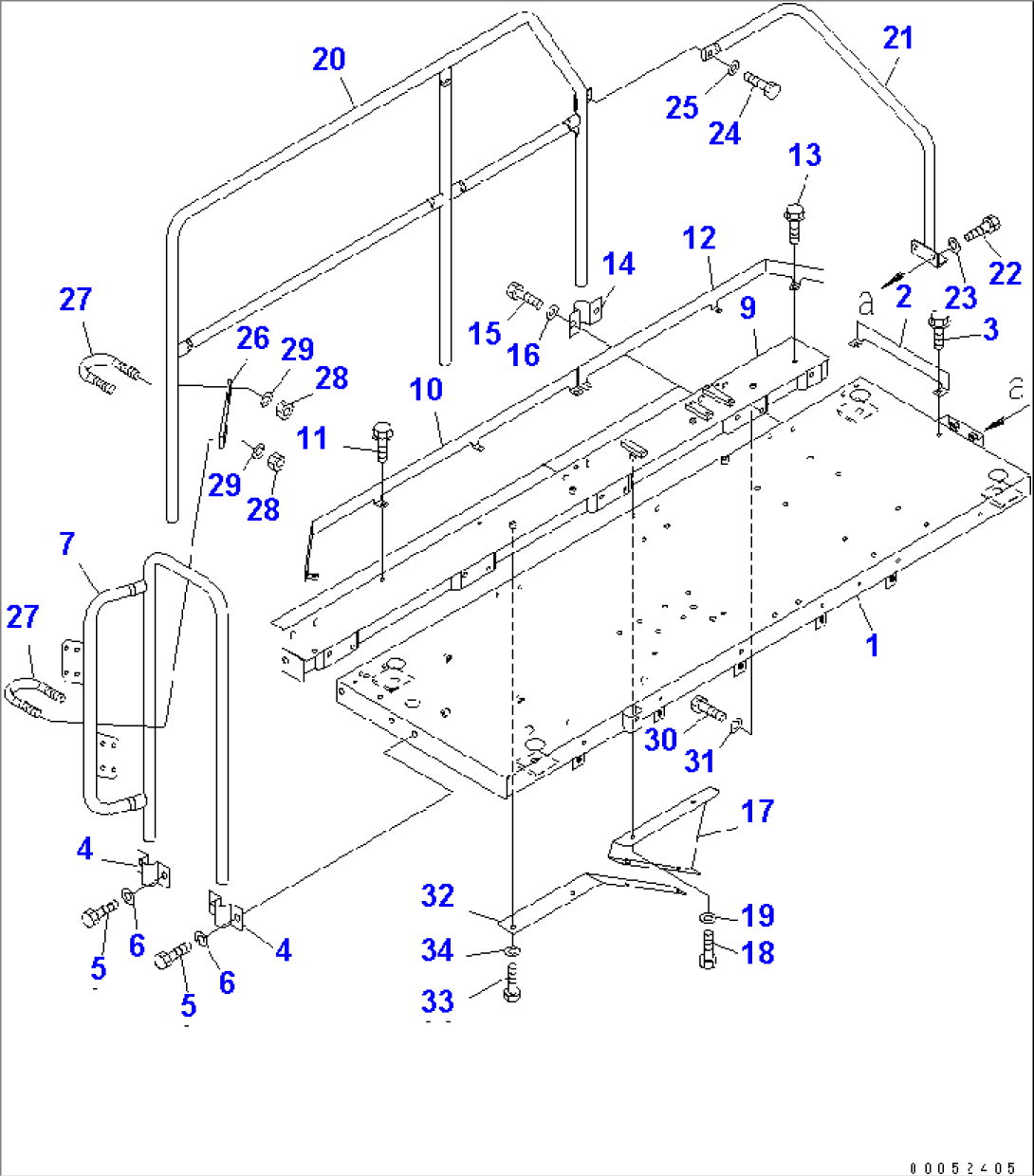

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-89-8G984 | PLATFORM | 11001- | |
| 2 | 566-54-81940 | GUARD | 11001- | |
| 3 | 01435-01016 | BOLT | 11001- | |
| 4 | 561-54-61910 | CLAMP | 11001- | |
| 5 | 01010-81635 | BOLT | 11001- | |
| 6 | 01643-31645 | WASHER | 11001- | |
| 7 | 566-54-81782 | GUARD | 11001- | |
| 9 | 566-54-8A922 | PLATFORM | 11001- | |
| 10 | 566-54-81810 | GUARD | 11001- | |
| 11 | 01435-01016 | BOLT | 11001- | |
| 12 | 566-54-81820 | GUARD | 11001- | |
| 13 | 01435-01016 | BOLT | 11001- | |
| 14 | 561-54-61910 | CLAMP | 11001- | |
| 15 | 01010-81635 | BOLT | 11001- | |
| 16 | 01643-31645 | WASHER | 11001- | |
| 17 | 566-54-81430 | BRACKET | 11001- | |
| 18 | 01010-81225 | BOLT | 11001- | |
| 19 | 01643-31232 | WASHER | 11001- | |
| 20 | 566-54-81753 | GUARD | 11001- | |
| 21 | 566-54-8A791 | GUARD | 11001- | |
| 22 | 01010-81635 | BOLT | 11001- | |
| 23 | 01643-31645 | WASHER | 11001- | |
| 24 | 01010-81240 | BOLT | 11001- | |
| 25 | 01643-31232 | WASHER | 11001- | |
| 26 | 566-54-6A840 | PLATE | 11001- | |
| 27 | 07283-23442 | CLIP | 11001- | |
| 28 | 01597-01009 | NUT | 11001- | |
| 29 | 01643-31032 | WASHER | 11001- | |
| 30 | 01010-81235 | BOLT | 11001- | |
| 31 | 01643-31232 | WASHER | 11001- | |
| 32 | 566-54-81380 | PLATE | 11001- | |
| 33 | 01010-81230 | BOLT | 11001- | |
| 34 | 01643-31232 | WASHER | 11001- |
