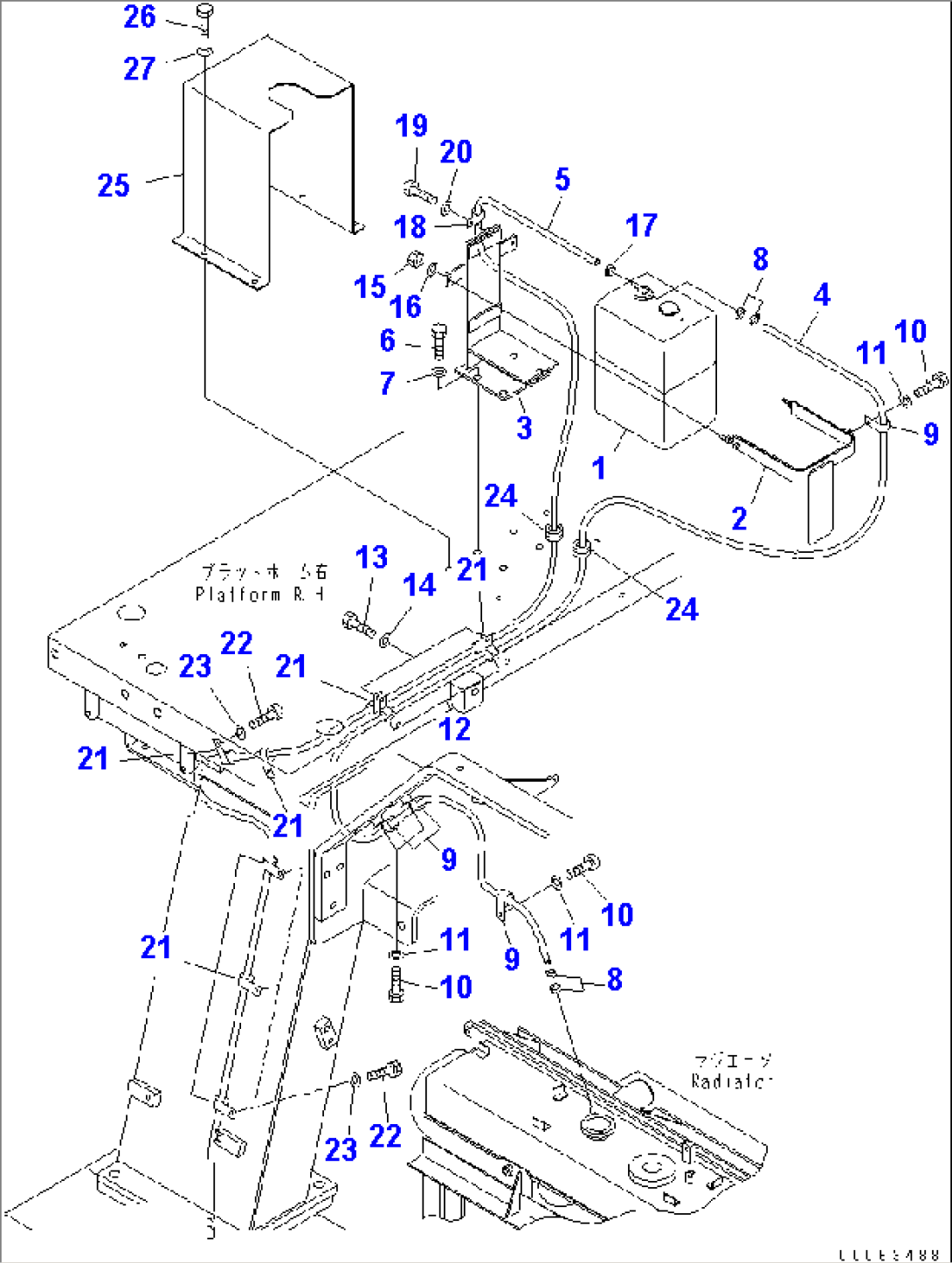

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-03-6E110 | TANK | 7001- | |
| 2 | 566-03-8E120 | BAND | 7001- | |
| 3 | 566-03-6E130 | BRACKET | 7001- | |
| 4 | 561-03-62451 | HOSE | 7001- | |
| 5 | 566-03-8E150 | TUBE | 7001- | |
| 6 | 01010-81230 | BOLT | 7001- | |
| 7 | 01643-31232 | WASHER | 7001- | |
| 8 | 07281-10167 | CLAMP | 7001- | |
| 9 | 08036-01414 | CLIP | 7001- | |
| 10 | 01010-81020 | BOLT | 7001- | |
| 11 | 01643-31032 | WASHER | 7001- | |
| 12 | 04434-51310 | CLIP | 7149- | |
| 12 | 08036-01414 | CLIP | 7001-7148 | |
| 13 | 01010-81016 | BOLT | 7149- | |
| 13 | 01010-81020 | BOLT | 7001-7148 | |
| 14 | 01643-31032 | WASHER | 7001- | |
| 15 | 01580-00806 | NUT | 7001- | |
| 16 | 01643-30823 | WASHER | 7001- | |
| 17 | 07281-10137 | CLAMP | 7001- | |
| 18 | 04434-51010 | CLIP | 7149- | |
| 18 | 08036-01014 | CLIP | 7001-7148 | |
| 19 | 01010-81016 | BOLT | 7001- | |
| 19 | 01010-81020 | BOLT | 7001-7148 | |
| 20 | 01643-31032 | WASHER | 7001- | |
| 21 | 08036-01014 | CLIP | 7001- | |
| 22 | 01010-81020 | BOLT | 7001- | |
| 23 | 01643-31032 | WASHER | 7001- | |
| 24 | 08037-01610 | GROMMET | 7001- | |
| 25 | 566-54-81543 | COVER | 7001- | |
| 26 | 01010-81020 | BOLT | 7001- | |
| 27 | 01643-31032 | WASHER | 7001- |
