| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-87870 | PLATE | 7898- | |
| 1 | 561-54-86520 | PLATE | 7169-7897 | |
| 1A | 561-54-87880 | PLATE | 7898- | |
| 2 | 561-54-87890 | BRACKET | 7898- | |
| 2 | 561-54-86530 | BRACKET | 7169-7897 | |
| 3 | 01010-81025 | BOLT | 7169- | |
| 4 | 01643-31032 | WASHER | 7169- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 7001 8172
- Platform and related parts
- Platform sub ass'y (r.h.) (toe guard) (payload meter) (auto grease)(#7169 )
Поиск по каталогу

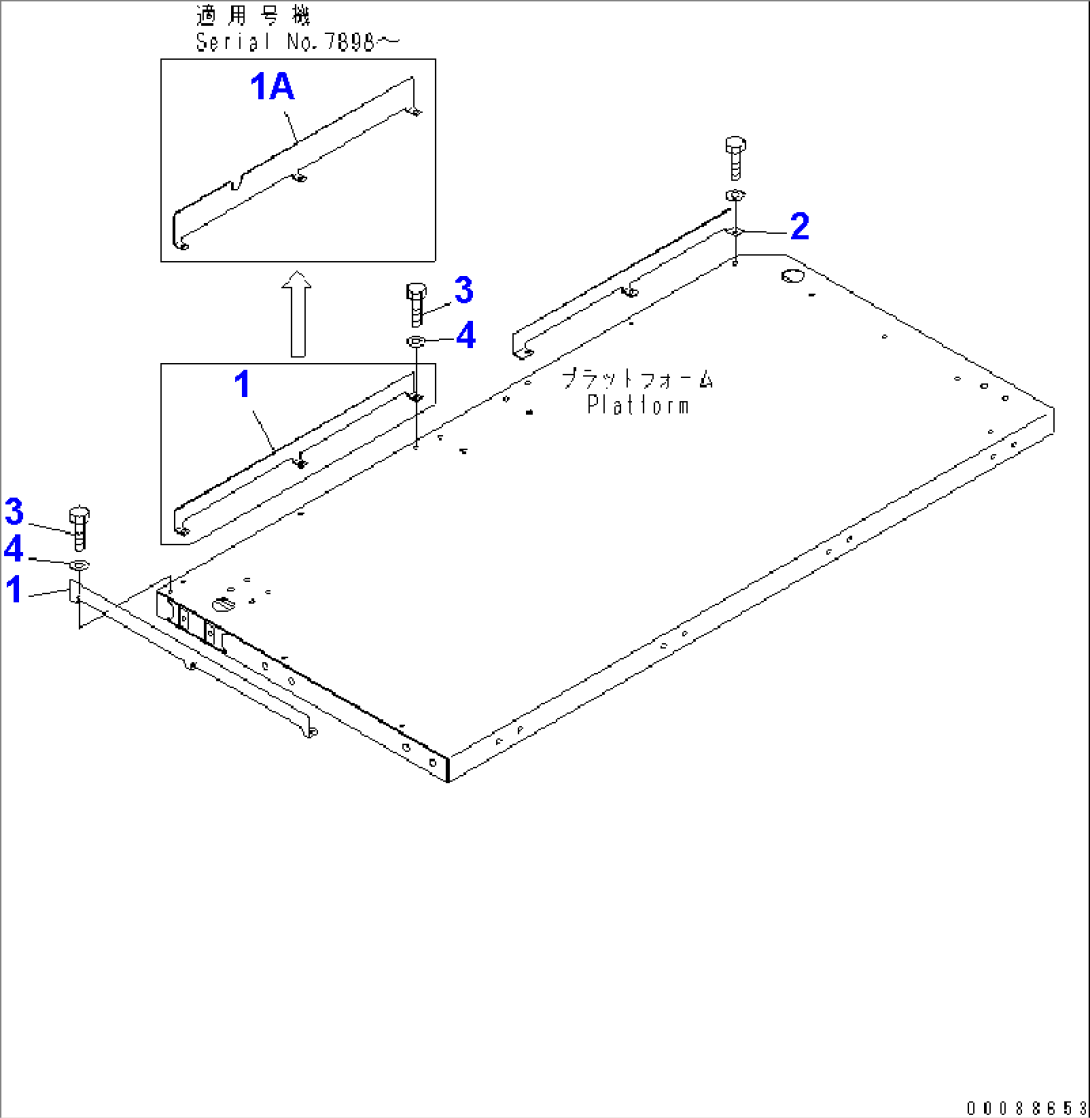

PLATFORM SUB ASS'Y (R.H.) (TOE GUARD) (PAYLOAD METER) (AUTO GREASE)(#7169-)
