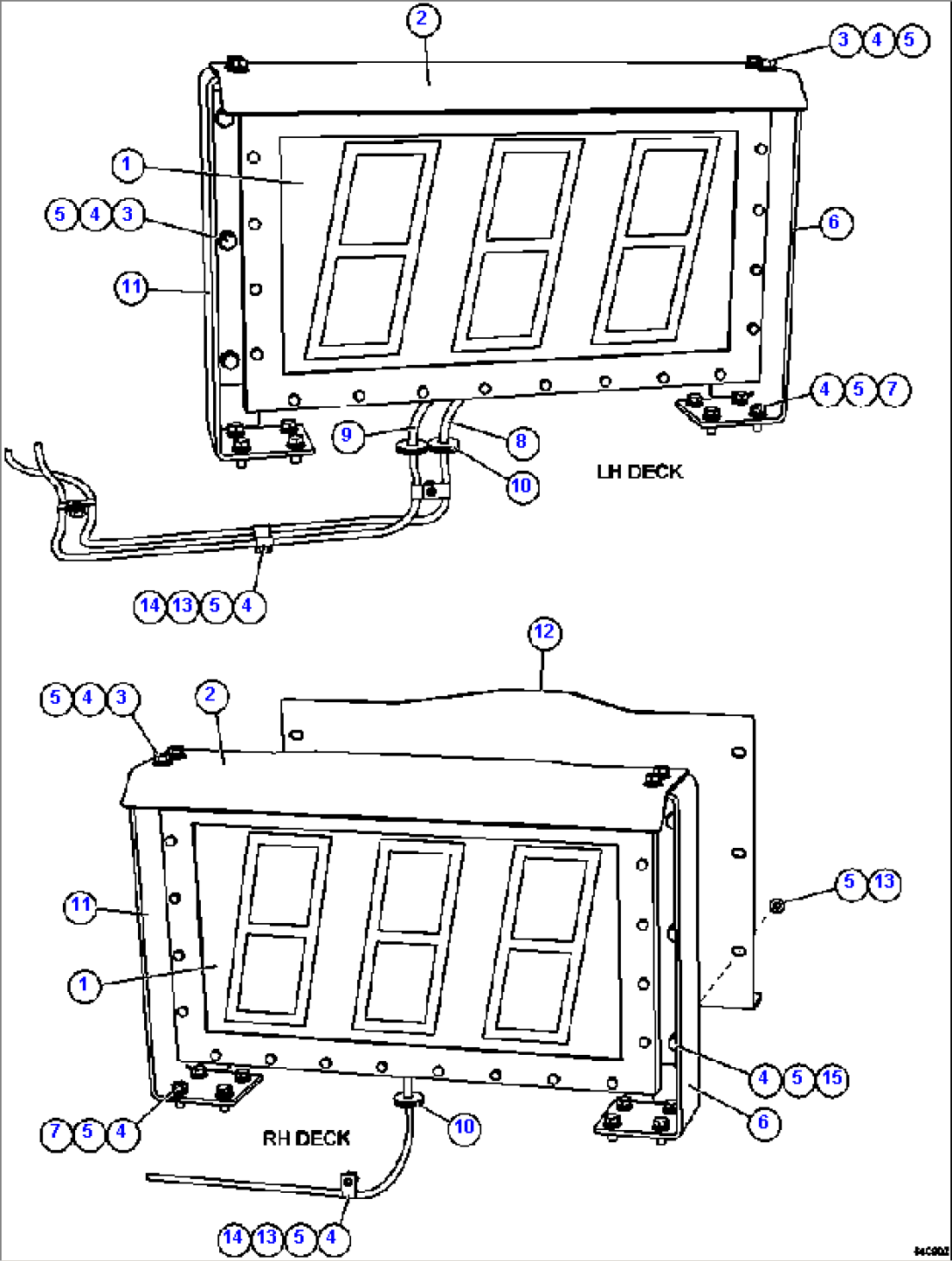

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC1137 | DISPLAY, PLM SCOREBOARD | ||
| 2 | XB1895 | COVER | ||
| 3 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 4 | MM0471 | LOCKWASHER - M10 | ||
| 5 | MM0461 | FLAT WASHER - M10 | ||
| 6 | XB1891 | BRACKET (LH) | ||
| 7 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 8 | EK4106 | CABLE (SCOREBOARD TO SCOREBOARD) | ||
| 9 | EK4105 | CABLE (SCOREBOARD TO JUNCTION BOX) | ||
| 10 | VC6467 | GROMMET | ||
| 11 | XB1892 | BRACKET (RH) | ||
| 12 | XB3613 | COVER | ||
| 13 | MM0178 | NUT - M10 X 1.50 | ||
| 14 | 424243 | CLAMP, VINYL - 3/8" | ||
| 15 | MM0609 | CAPSCREW - M10 X 1.50 X 45 |
