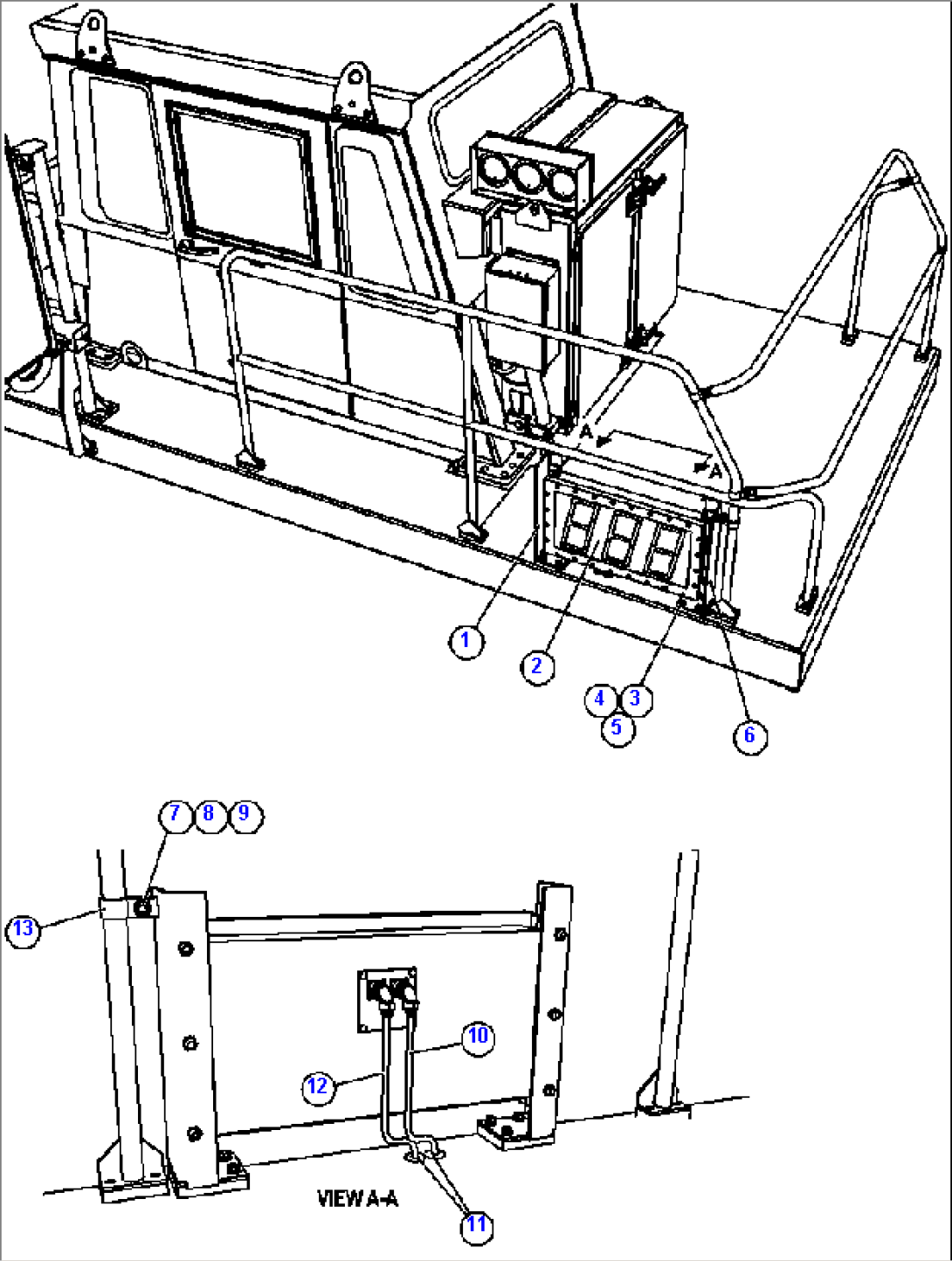

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EL1681 | BRACKET | ||
| 2 | PC1137 | SCOREBOARD, PLM | ||
| 3 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 4 | MM0461 | FLAT WASHER - M10 | ||
| 5 | MM0471 | LOCKWASHER - M10 | ||
| 6 | EL1685 | BRACKET | ||
| 7 | MM0032 | CAPSCREW - M12 X 1.75 X 30 | ||
| 8 | MM0472 | LOCKWASHER - M12 | ||
| 9 | MM0179 | NUT - M12 X 1.75 | ||
| 10 | EK4105 | HARNESS, LEFT PLM SCOREBOARD | ||
| 11 | VC6467 | GROMMET | ||
| 12 | EK4106 | HARNESS, RIGHT PLM SCOREBOARD | ||
| 13 | EC6173 | CLAMP |
