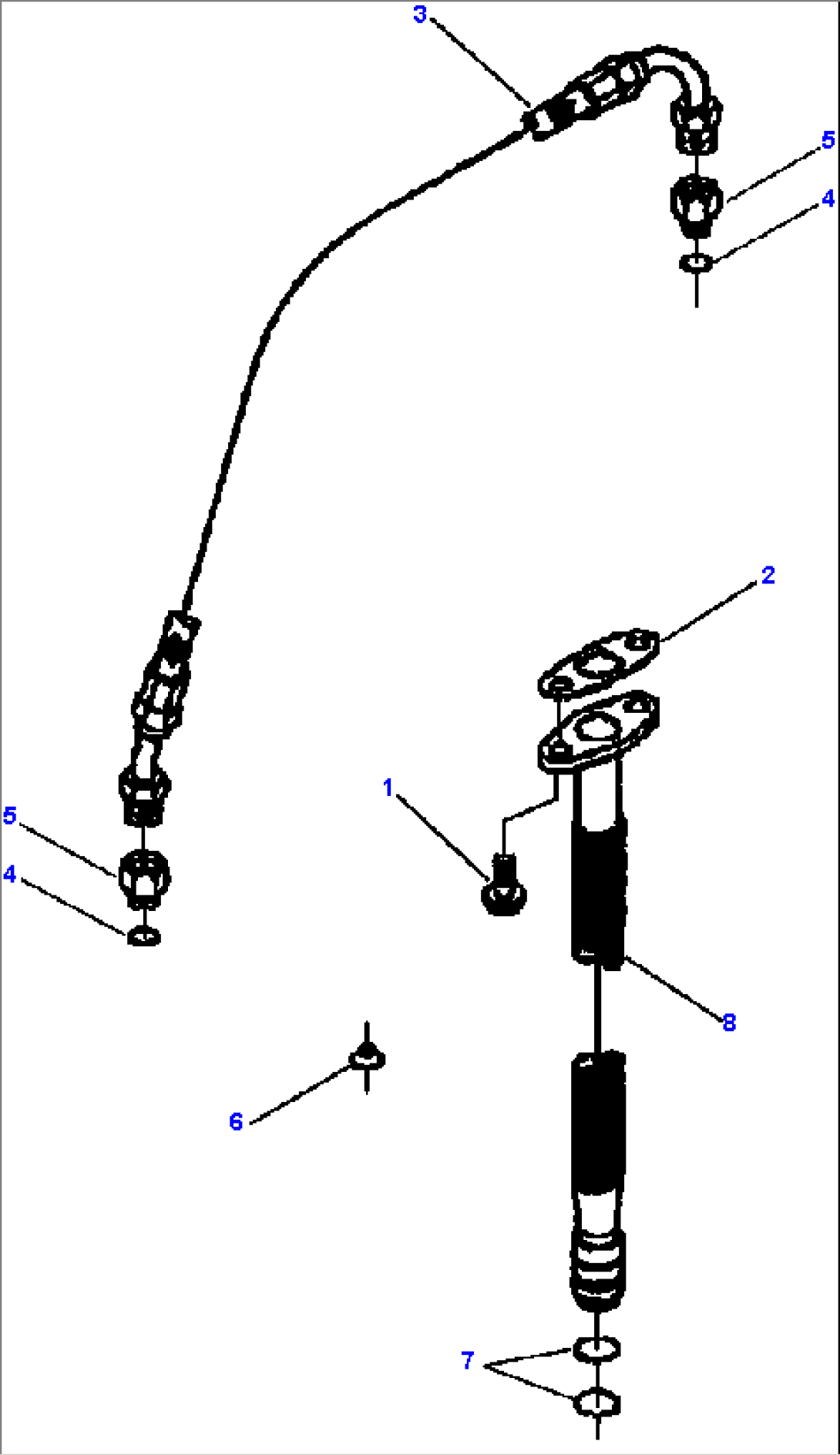

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6732-71-3220 | BOLT (M8x1.25x20) | ||
| 2 | 1294 088 H1 | GASKET, TURBOCHARGER | ||
| 3 | 1296 874 H1 | HOSE, FLEXIBLE | ||
| 6736-51-8140 | CONNECTOR, FEMALE | |||
| 4 | 6736-51-8710 | O-RING | ||
| 5 | (NSS) | CONNECTOR, FEMALE | ||
| 6 | 6736-51-8730 | WASHER, SEALING | ||
| 7 | 6732-51-8330 | SEAL, O-RING | ||
| 8 | 1304 836 H1 | CONNECTION, TURBINE OIL DRAIN |
