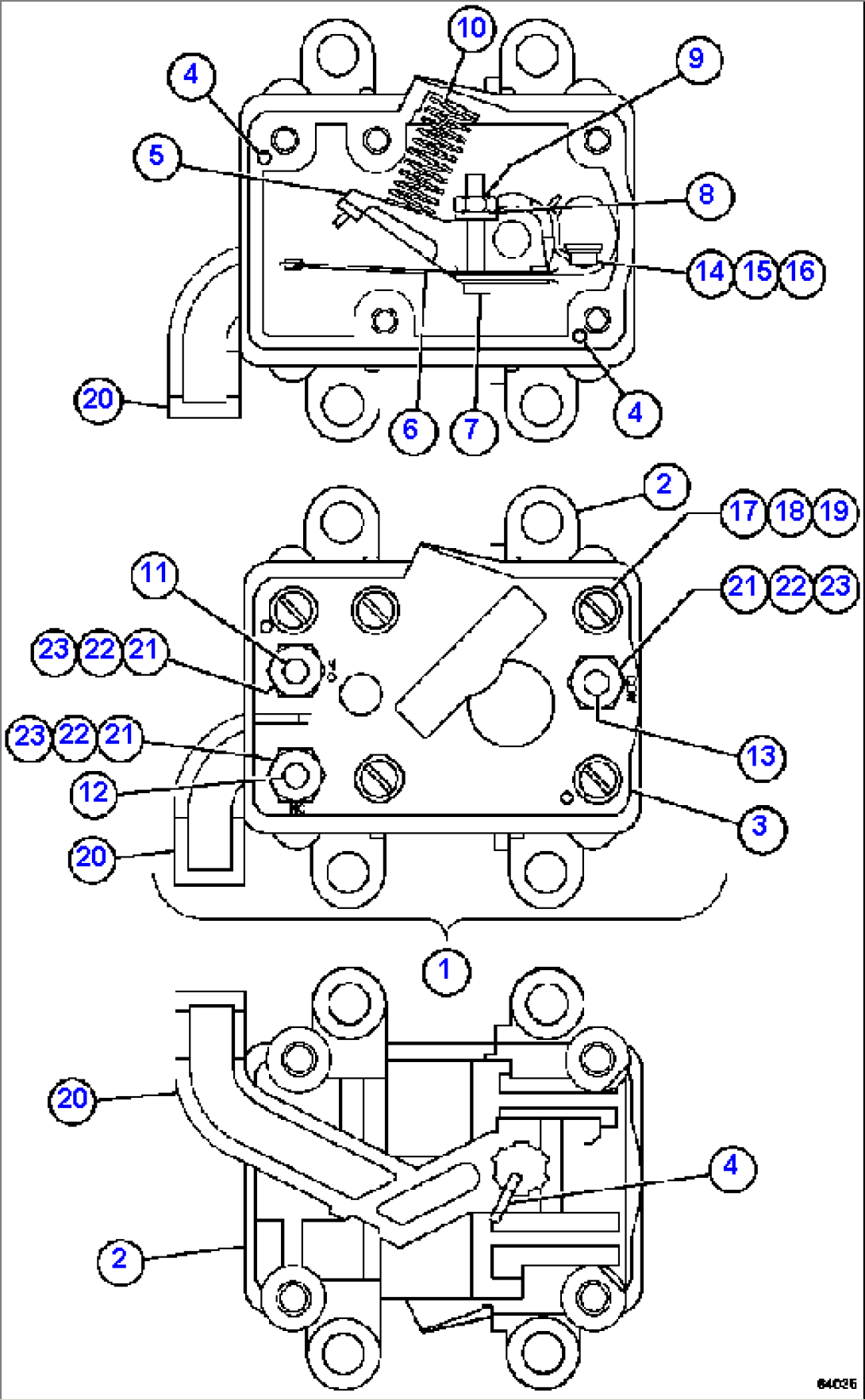

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE3530 | INTERLOCK, POSITION SENSOR | ||
| 2 | BOX | |||
| 3 | BF3174 | COVER | ||
| 4 | VE1142 | PIN | ||
| 5 | VE3616 | INNER ARM ASSEMBLY | ||
| 6 | VE0735 | SPRING | ||
| 7 | VE5751 | MACHINE SCREW - #4 - 40NC X 5/8" | ||
| 8 | VE4908 | LOCKWASHER - #4 | ||
| 9 | VE4909 | NUT - #4 - 40NC | ||
| 10 | VE1143 | SPRING | ||
| 11 | VE4405 | STUD ASSEMBLY | ||
| 12 | VE4406 | STUD ASSEMBLY | ||
| 13 | VE5752 | STUD, TAPPED | ||
| 14 | VE5753 | MACHINE SCREW - #4 - 40NC X 1/4" | ||
| 15 | VE4908 | LOCKWASHER - #4 | ||
| 16 | VE4907 | FLAT WASHER - #4 | ||
| 17 | BF0020 | MACHINE SCREW - #6 - 32NC X 5/8" | ||
| 18 | TR5445 | LOCKWASHER - 1/2" | ||
| 19 | HE5125 | FLAT WASHER - #6 | ||
| 20 | VE5757 | OUTER ARM ASSEMBLY | ||
| 21 | SF2755 | NUT - #10 - 32NF | ||
| 22 | VC1390 | LOCKWASHER - 5/8" | ||
| 23 | VS6662 | FLAT WASHER - #10 |
