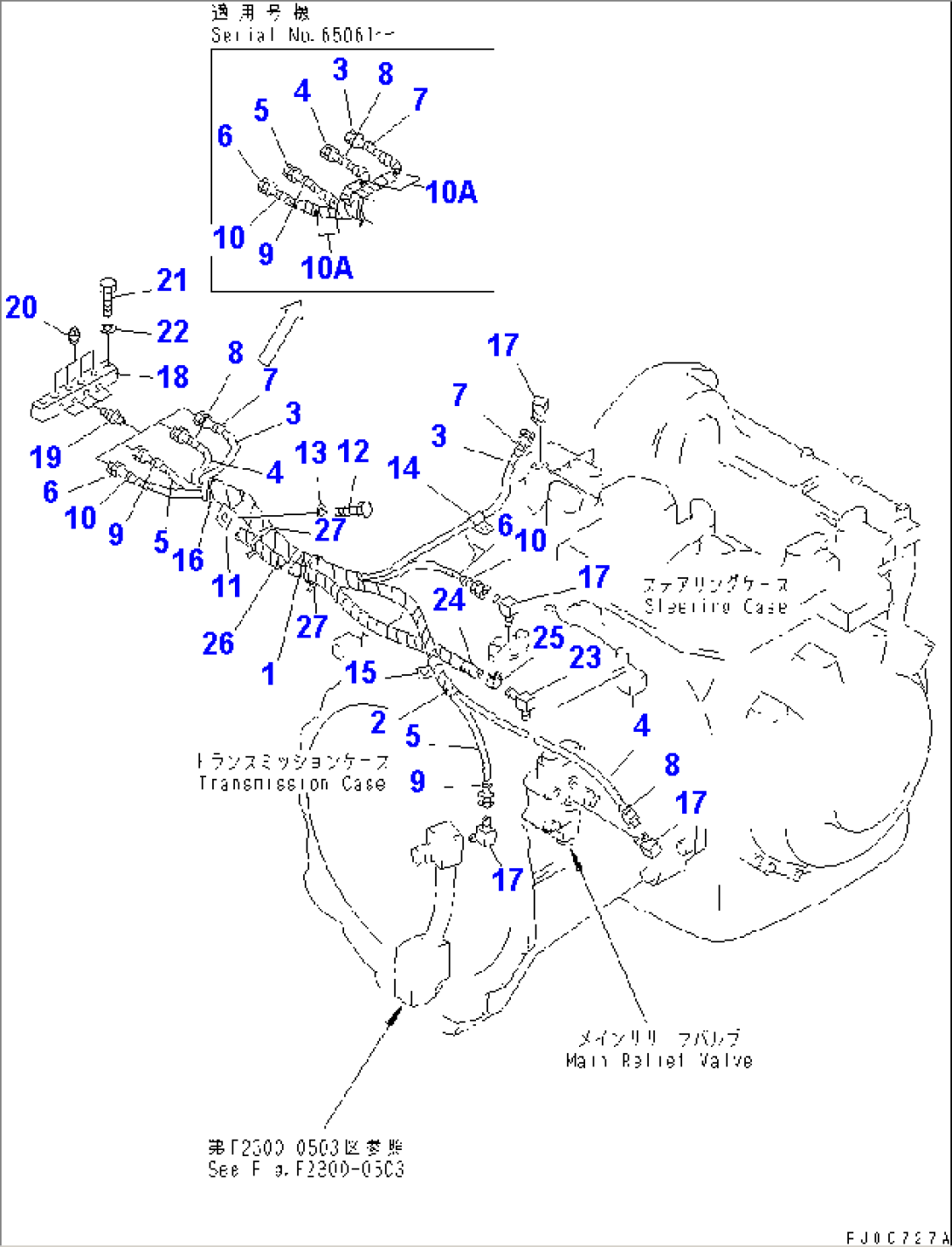

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08210-01809 | SPIRAL TUBE | 65061- | |
| 08210-01810 | SPIRAL TUBE | 65001-65060 | ||
| 2 | 08210-01807 | SPIRAL TUBE | 65001- | |
| 3 | 17A-49-17631 | HOSE¤ 1400MM | 65001- | |
| 4 | 17A-49-17710 | HOSE | 65001- | |
| 5 | 17A-49-17151 | HOSE¤ 1450MM | 65001- | |
| 6 | 14X-49-11940 | HOSE | 60884- | |
| 7 | 203-62-57910 | MARK¤ 1 | 60884- | |
| 8 | 203-62-57920 | MARK¤ 2 | 60884- | |
| 9 | 203-62-57930 | MARK¤ 3 | 60884- | |
| 10 | 203-62-57940 | MARK¤ 4 | 60884- | |
| 10A | 08210-01802 | SPIRAL TUBE | 65037- | |
| 11 | 04434-52212 | CLIP | 60884- | |
| 12 | 01010-81220 | BOLT | 60884- | |
| 13 | 01643-31232 | WASHER | 60884- | |
| 14 | 04434-51312 | CLIP | 60884- | |
| 15 | 04434-51912 | CLIP | 60884- | |
| 16 | 08034-00536 | BAND | 60884- | |
| 17 | 202-62-21430 | ELBOW | 60884- | |
| 18 | 14Z-49-11111 | BLOCK | 60884- | |
| 19 | 203-62-21740 | NIPPLE | 60884- | |
| 20 | 07042-20108 | PLUG | 60884- | |
| 21 | 01010-81245 | BOLT | 60884- | |
| 22 | 01643-31232 | WASHER | 60884- | |
| 23 | 21T-04-11721 | ELBOW | 65001- | |
| 24 | 07261-21411 | HOSE | 65001- | |
| 25 | 09479-02400 | CLAMP | 65001- | |
| 26 | 08210-01814 | SPIRAL TUBE | 65092- | |
| 08210-01809 | SPIRAL TUBE | 65001-65091 | ||
| 27 | 08034-00536 | BAND | 65001- |
