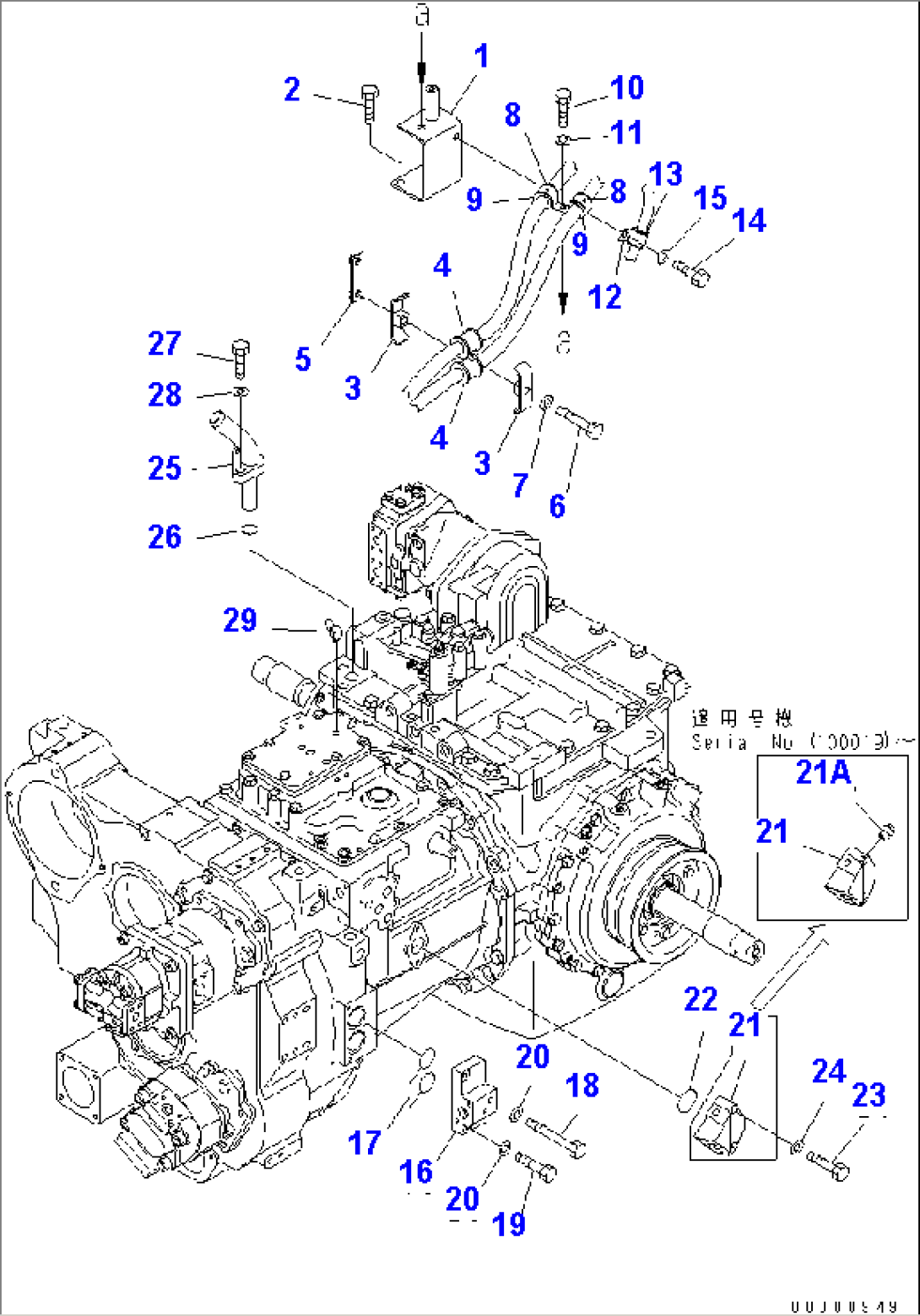

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-49-71761 | BRACKET | 1001- | |
| 2 | 01010-81240 | BOLT | 1001- | |
| 3 | 07094-30620 | CLAMP | 1001- | |
| 4 | 07095-00627 | CUSHION | 1001- | |
| 5 | 154-49-71850 | PLATE | 1001- | |
| 6 | 01010-81275 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 04434-53412 | CLIP | 1001- | |
| 9 | 07095-20627 | CUSHION | 1001- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 04434-52512 | CLIP | 1001- | |
| 13 | 07095-20420 | CUSHION | 1001- | |
| 14 | 01010-81230 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 154-49-71860 | BLOCK | 1001- | |
| 17 | 07000-73045 | O-RING | 1001- | |
| 18 | 01010-81075 | BOLT | 1001- | |
| 19 | 01010-81050 | BOLT | 1001- | |
| 20 | 01643-31032 | WASHER | 1001- | |
| 21 | 154-49-71591 | ELBOW | (100019)- | |
| 154-49-71590 | ELBOW | 1001-(100018) | ||
| 21A | 07042-30108 | PLUG | (100019)- | |
| 22 | 07000-73042 | O-RING | 1001- | |
| 23 | 01010-81265 | BOLT | 1001- | |
| 24 | 01643-31232 | WASHER | 1001- | |
| 25 | 154-22-72131 | 1001- | ||
| 26 | 07000-73045 | O-RING | 1001- | |
| 27 | 01010-81665 | BOLT | 1001- | |
| 28 | 01643-31645 | WASHER | 1001- | |
| 29 | 154-21-71230 | WASHER | (100017)- | |
| 21T-04-11721 | ELBOW | 1001-(100016) |
