| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (19M-13-21001) | TORQUE CONVERTER A. | 10036- | ||
| (\0\19M-13-01010) | TORQUE CONVERTER A. | 10012-10035 | ||

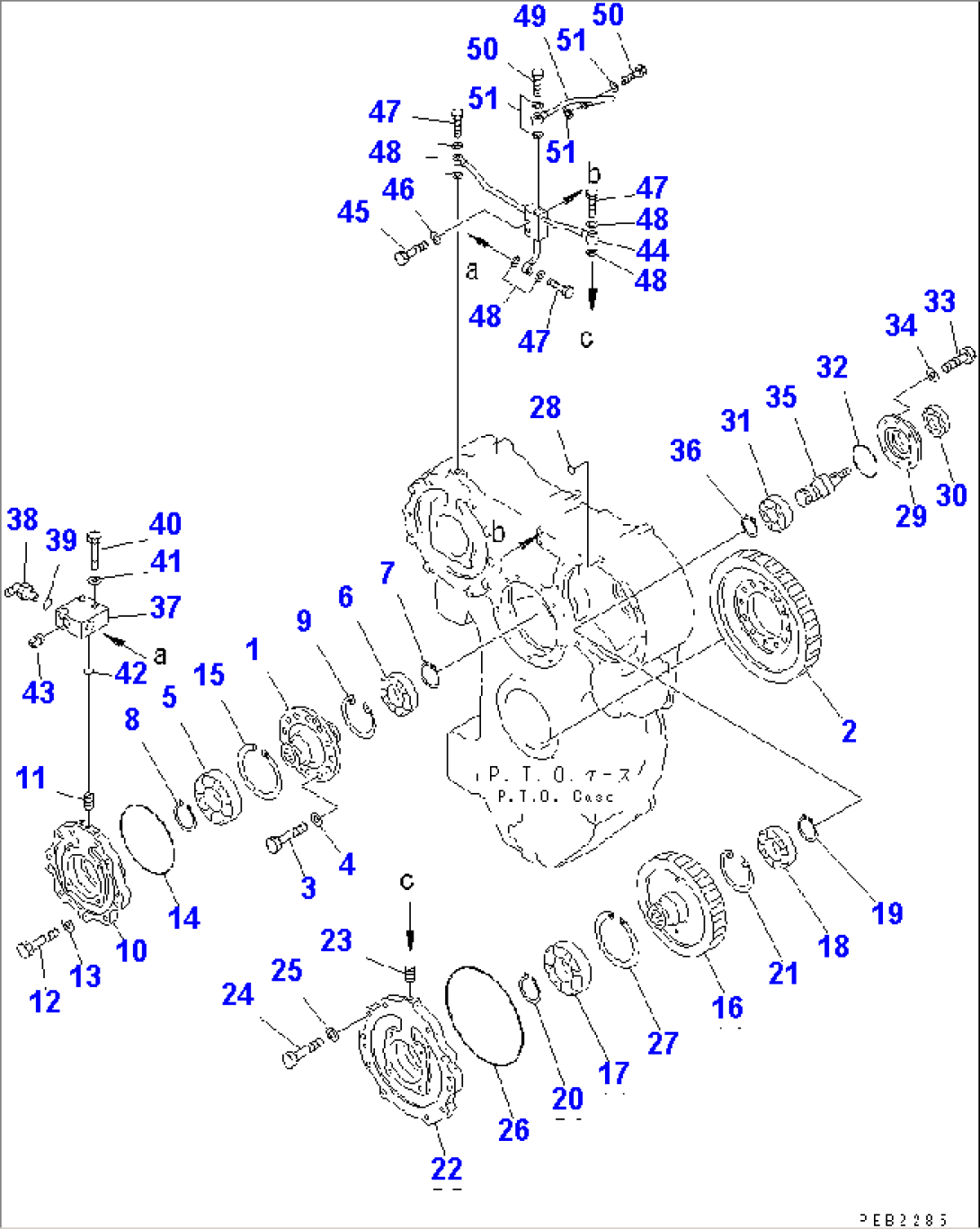

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2310-51A2 TO F2310-57A2. | ||||
| 1 | 19M-13-14360 | SHAFT | 10012- | |
| 2 | 19M-13-14210 | GEAR | 10012- | |
| 3 | 01010-61645 | BOLT | 10012- | |
| 4 | 01643-31645 | WASHER | 10012- | |
| 5 | 06040-06313 | BEARING,BALL | 10012- | |
| 6 | 286-13-14381 | BEARING,ROLLER | 10012- | |
| 7 | 04064-06020 | RING,SNAP | 10012- | |
| 8 | 04064-06525 | RING,SNAP | 10012- | |
| 9 | 04065-01104 | RING,SNAP | 10012- | |
| 10 | 19M-13-14340 | COVER | 10012- | |
| 11 | 711-21-13850 | NOZZLE | 10012- | |
| 12 | 01010-81250 | BOLT | 10012- | |
| 13 | 01643-31232 | WASHER | 10012- | |
| 14 | 07000-75200 | O-RING (K1) | 10012- | |
| 15 | 04071-00140 | RING,SNAP | 10012- | |
| 16 | 19M-13-14320 | GEAR | 10012- | |
| 17 | 06040-06313 | BEARING,BALL | 10012- | |
| 18 | 286-13-14381 | BEARING,ROLLER | 10012- | |
| 19 | 04064-06020 | RING,SNAP | 10012- | |
| 20 | 04064-06525 | RING,SNAP | 10012- | |
| 21 | 04065-01104 | RING,SNAP | 10012- | |
| 22 | 19M-13-14350 | COVER | 10012- | |
| 23 | 711-21-13850 | NOZZLE | 10012- | |
| 24 | 01010-81250 | BOLT | 10012- | |
| 25 | 01643-31232 | WASHER | 10012- | |
| 26 | 07000-75280 | O-RING (K1) | 10012- | |
| 27 | 04071-00140 | RING,SNAP | 10012- | |
| 28 | 07000-72016 | O-RING (K1) | 10012- | |
| 29 | 711-23-14480 | RETAINER | 10012- | |
| 30 | 07012-10050 | SEAL,OIL (K1) | 10012- | |
| 31 | 06030-06308 | BEARING,BALL | 10012- | |
| 32 | 07000-72095 | O-RING (K1) | 10012- | |
| 33 | 01010-81030 | BOLT | 10012- | |
| 34 | 01643-31032 | WASHER | 10012- | |
| 35 | 19M-13-14470 | SHAFT | 10012- | |
| 36 | 04064-04018 | RING,SNAP | 10012- | |
| 37 | 19M-13-16910 | BLOCK | 10012- | |
| 38 | 07236-10522 | ELBOW | 10012- | |
| 39 | 07002-32434 | O-RING | 10012- | |
| 40 | 01010-81060 | BOLT | 10012- | |
| 41 | 01643-31032 | WASHER | 10012- | |
| 42 | 07000-72016 | O-RING (K1) | 10012- | |
| 43 | 07042-70312 | PLUG | 10012- | |
| 44 | 19M-13-16940 | TUBE | 10012- | |
| 45 | 01010-81050 | BOLT | 10012- | |
| 46 | 01643-31032 | WASHER | 10012- | |
| 47 | 07206-31216 | BOLT | 10012- | |
| 48 | 07005-01612 | GASKET (K1) | 10012- | |
| 49 | 19M-13-26950 | TUBE | 10012- | |
| 50 | 07206-31216 | BOLT | 10012- | |
| 51 | 07005-01612 | GASKET (K1) | 10012- |
